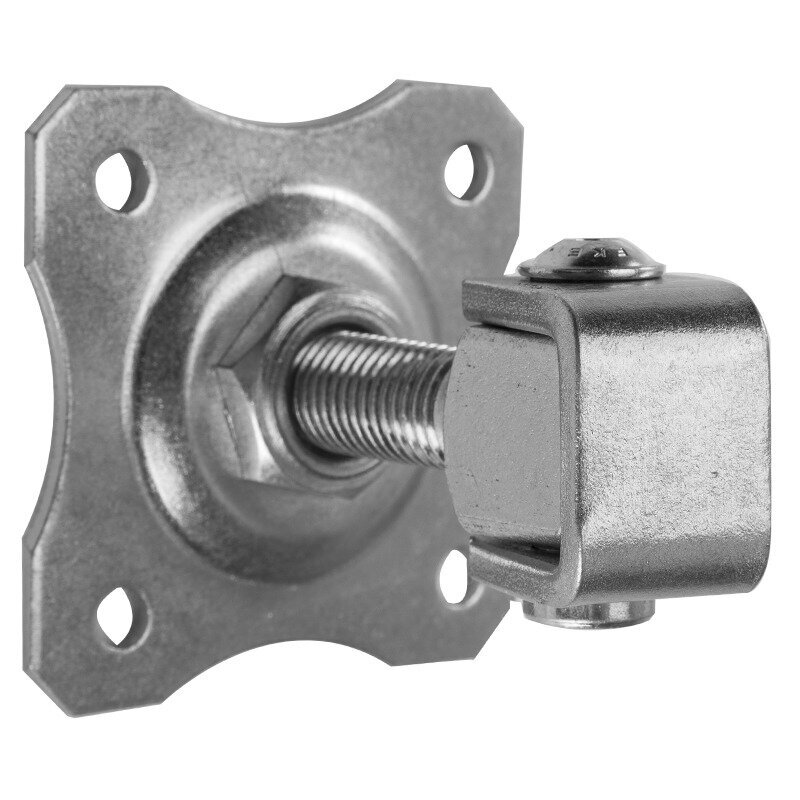

Adjustable M16 Gate Hinge with Decorative Plate

Adjustable M16 Gate Hinge with Decorative Plate 80x80x3 mm – a strong steel adjustable hinge designed for gates, pedestrian gates and other metal structures. The hinge is supplied with an 80x80 mm mounting plate for secure attachment to the gate structure.

The zinc-plated surface helps protect the steel against corrosion and environmental exposure. The M16 threaded construction allows precise gate positioning during installation and further adjustment after mounting.

Technical Information:

• Code: 61.016
• Thread: M16
• Overall length: 90 mm
• Plate dimensions: 80 x 80 mm
• Plate thickness: 3 mm
• Material: Steel
• Surface: Zinc plated
• Mounting: Bolted through mounting holes
• Adjustable construction

Applications:

• Swing gates
• Pedestrian gates
• Driveway gates
• Metal structures
• Gate structures requiring adjustment after installation

Features:

• M16 thread allows precise gate position adjustment
• 80x80 mm plate provides convenient bolt-on installation
• Hinge position can be corrected after installation
• Zinc-plated surface helps protect against corrosion
• Strong steel construction suitable for long-term use
• Suitable for outdoor applications

Related Products:

• Adjustable Gate Hinges
• Gate Rollers
• Gate Locks
• Gate Components

Frequently Asked Questions:

Can the hinge be adjusted after installation?
Yes. The M16 threaded construction allows the gate or pedestrian gate position to be corrected after installation.

What are the dimensions of the mounting plate?
The mounting plate measures 80 x 80 mm and is 3 mm thick.

Does this hinge need to be welded?
No. The mounting holes in the plate allow the hinge to be bolted to a suitable structure.

Is this hinge suitable for outdoor use?
Yes. The zinc-plated steel surface helps protect the hinge against corrosion and environmental exposure.
