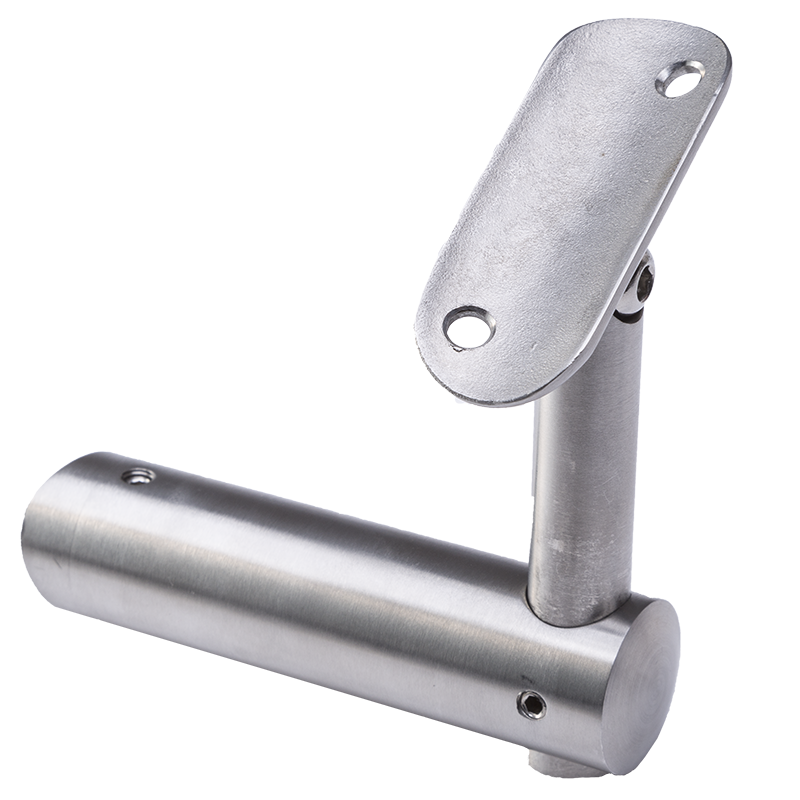

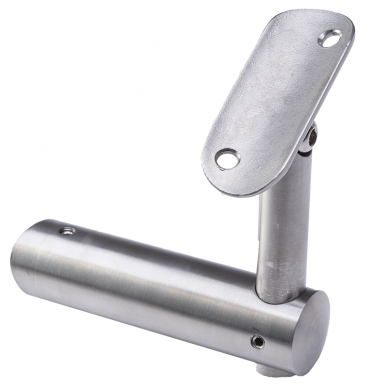

Armrest Bracket D42.4

Tube-Mounted Handrail Bracket Ø42.4 mm N05.2501.4BS is designed to connect a 42.4 mm diameter handrail to a tube.

The bracket is made from AISI 304 stainless steel and has a satin finish that coordinates with other stainless steel railing system components.

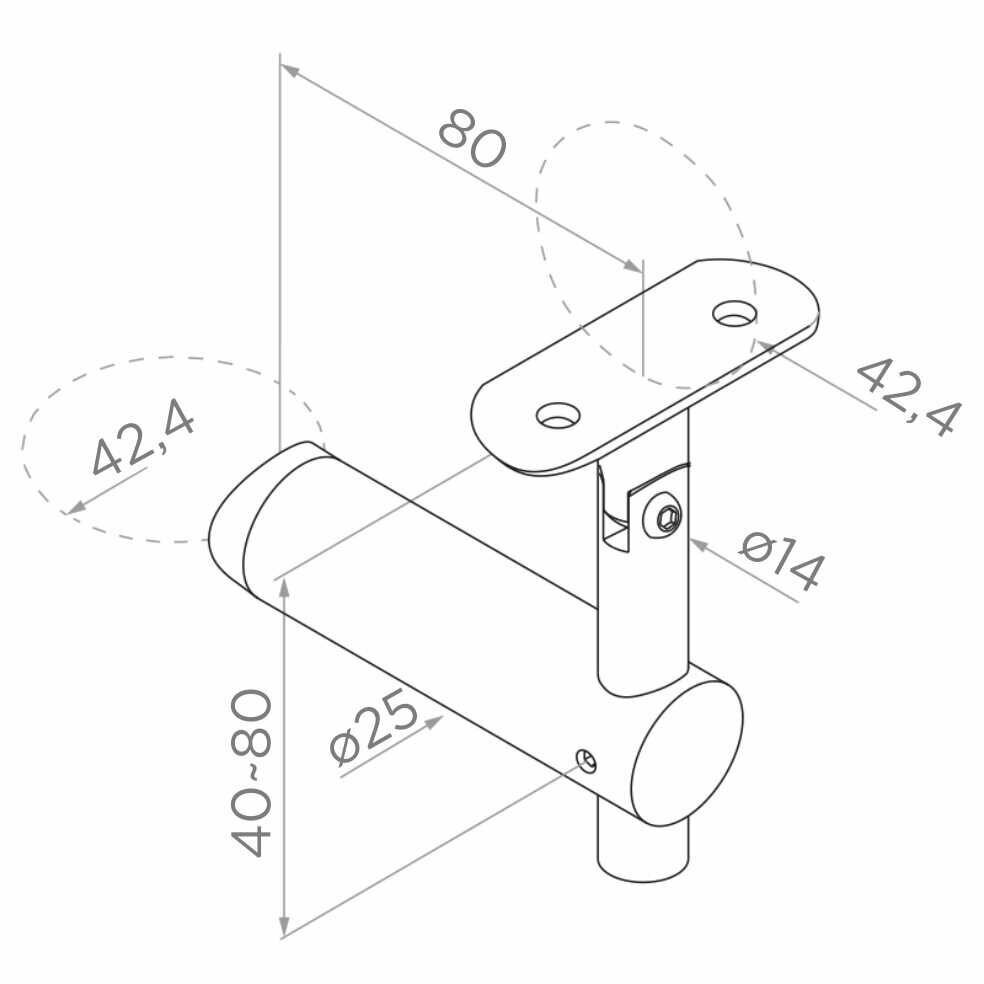

Technical information:

• Product code: N05.2501.4BS
• Type: tube-mounted handrail bracket
• Handrail diameter: 42.4 mm
• Mounting base: tube
• Material: stainless steel
• Steel grade: AISI 304
• Finish: satin

Features:

• Designed for a 42.4 mm diameter handrail
• Suitable for mounting on a tube
• Helps connect the handrail to a tubular railing system component
• AISI 304 stainless steel construction is suitable for railing systems
• Satin finish coordinates easily with other stainless steel components

Applications:

• Handrails with a diameter of 42.4 mm
• Handrails installed on a tube
• Handrail systems for stairways, passageways and other areas
• Stainless steel railing structures

Installation:

Before installation, confirm that the handrail diameter is 42.4 mm and that the selected tube is suitable for the bracket according to the railing system requirements.

Choose the fixing elements and installation method according to the specific railing system. Once installed, check that the connection between the bracket, handrail and tube is secure.

• Tubes and handrails

Frequently asked questions:

What handrail size is bracket N05.2501.4BS designed for?
It is designed for a handrail with a diameter of 42.4 mm.

What type of mounting base is the bracket designed for?
The bracket is designed for installation on a tube.

What material is the bracket made from?
It is made from AISI 304 stainless steel.

What finish does the bracket have?
The bracket has a satin finish.

What should be checked after installation?
Check that the connection between the bracket, handrail and tube is secure.
