Armrest Bracket D42.4

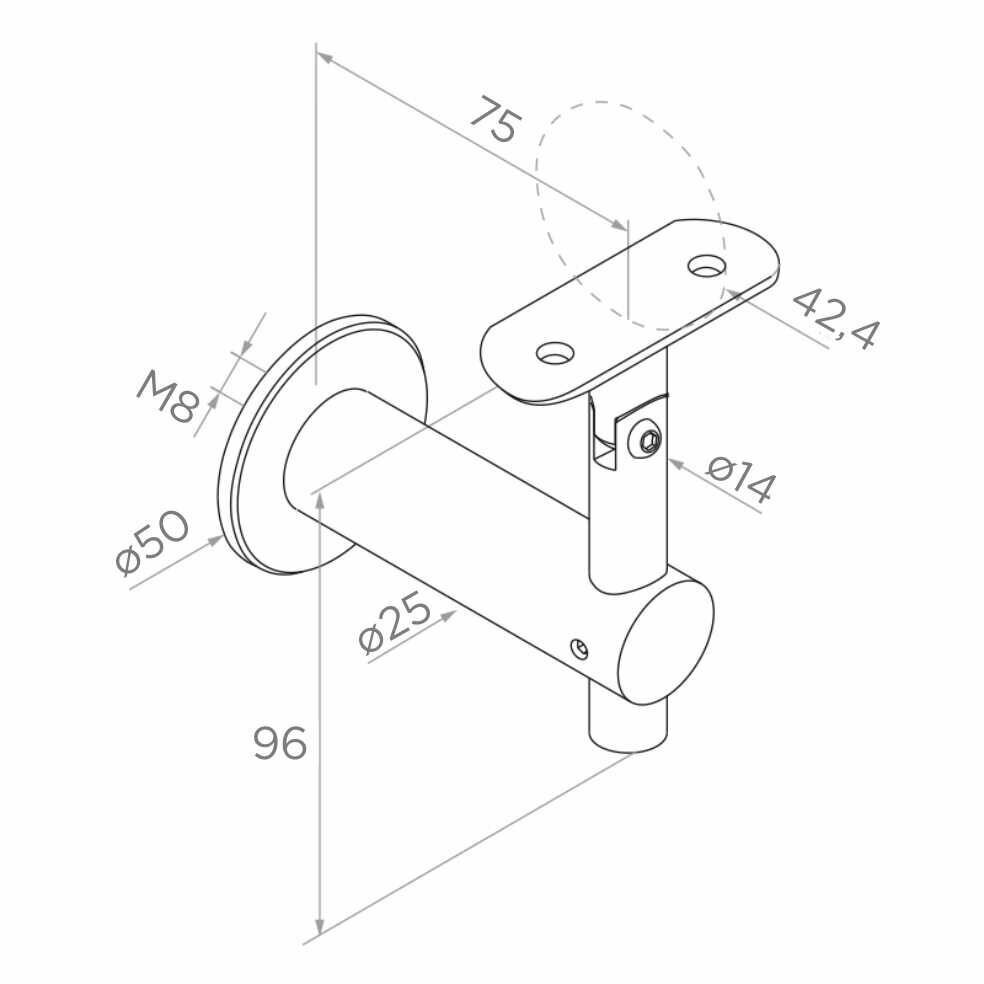

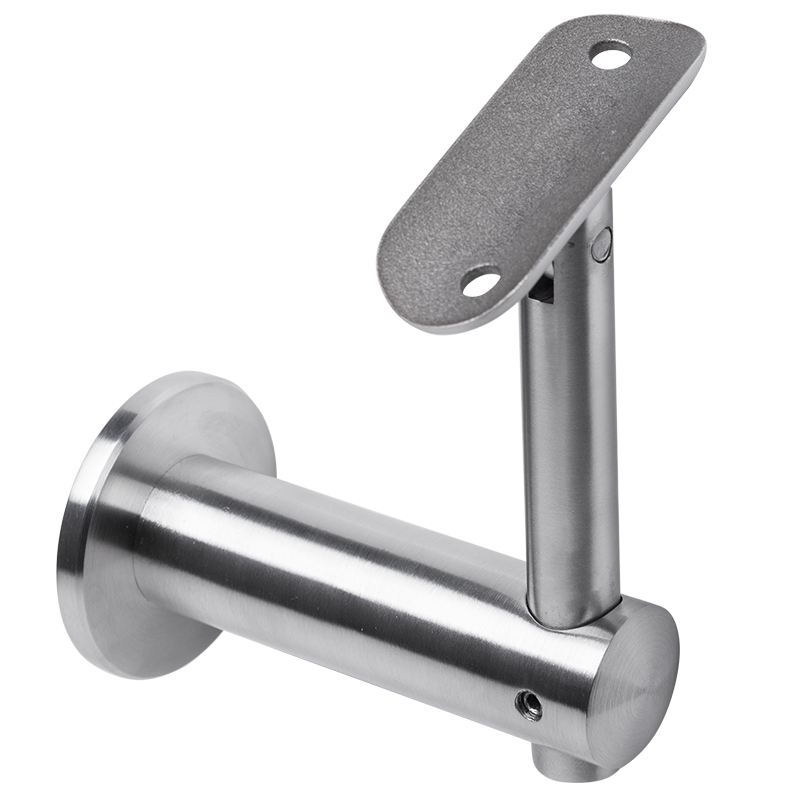

Wall-Mounted Handrail Bracket Ø42.4 mm N05.3551.4BS is designed to secure a 42.4 mm diameter handrail to a wall.

The bracket is made from AISI 304 stainless steel and has a satin finish that coordinates with other stainless steel railing system components.

Technical information:

• Product code: N05.3551.4BS
• Type: wall-mounted handrail bracket
• Handrail diameter: 42.4 mm
• Material: stainless steel
• Steel grade: AISI 304
• Finish: satin

Features:

• Helps secure a 42.4 mm diameter handrail to a wall
• Support section accommodates a round handrail
• AISI 304 stainless steel construction is suitable for railing systems
• Satin finish coordinates easily with other stainless steel components

Applications:

• Wall-mounted handrails with a diameter of 42.4 mm
• Stairway handrail systems
• Handrails for passageways and corridors
• Stainless steel railing structures

Installation:

Before installation, determine the bracket position and confirm that it is suitable for the 42.4 mm diameter handrail.

Select the fixing elements according to the wall material and railing system requirements. Once installed, check that both the bracket and handrail are secure.

• Tubes and handrails

Frequently asked questions:

What handrail size is bracket N05.3551.4BS designed for?
It is designed for a handrail with a diameter of 42.4 mm.

Where is this bracket installed?
The bracket is used to secure a handrail to a wall.

What material is the bracket made from?
It is made from AISI 304 stainless steel.

What finish does the bracket have?
The bracket has a satin finish.

How should the fixing elements be selected?
Choose them according to the wall material and the requirements of the specific railing system.
