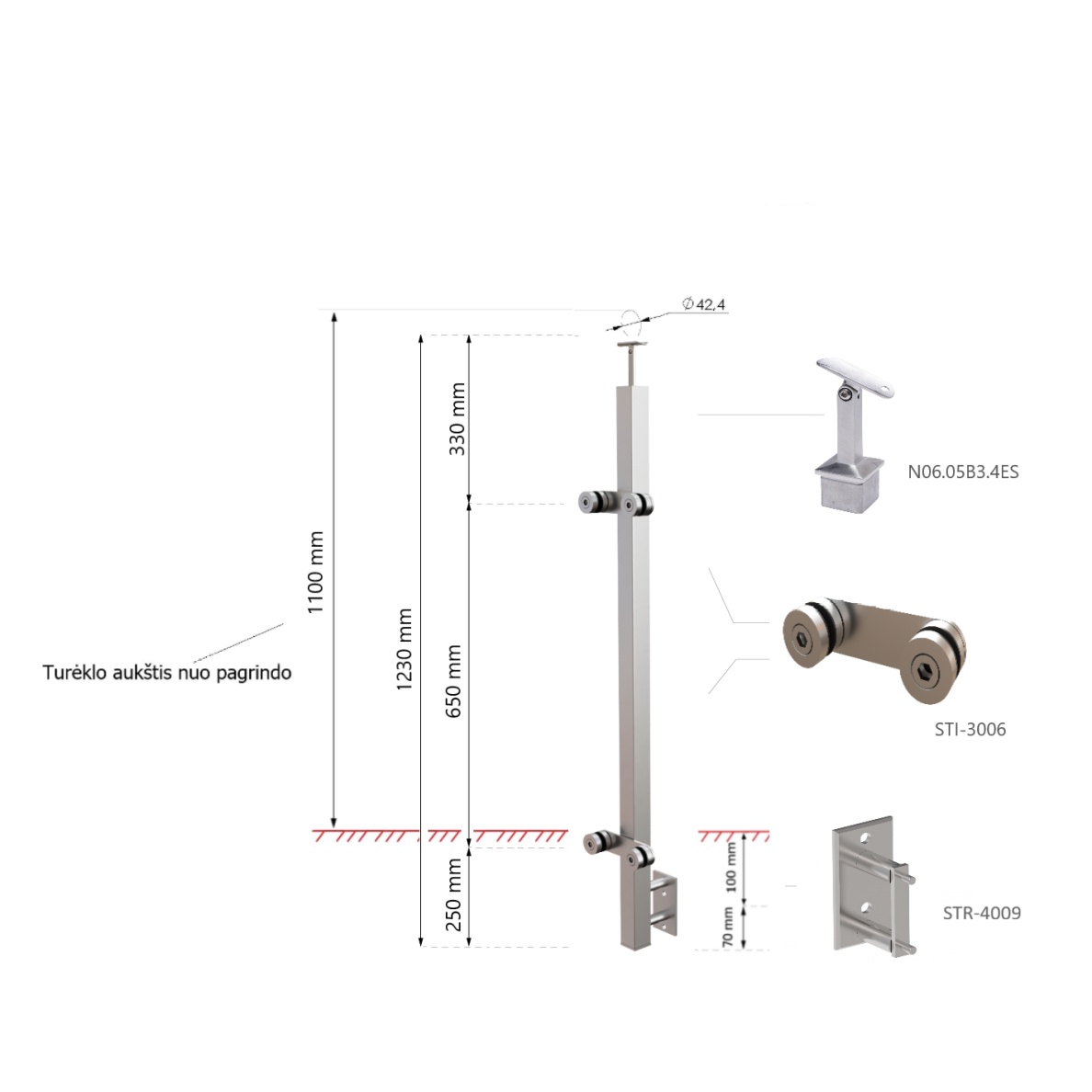

Balcony Middle Glass Railing Post with Point Glass Adaptors 40×40 H-1230 mm

Balcony Middle Glass Railing Post with Point Glass Adaptors 40×40 H-1230 mm STA-1141 is designed for glass railing systems and is used as a middle post between other railing posts. The strong 40×40×2 mm square profile provides secure glass fixing and structural stability.

The post is manufactured from AISI 304 stainless steel and features a satin brushed finish. Point glass adaptors are suitable for 8–18 mm thick glass. Glass adaptor gaskets are included in the set.

Technical Information

• Product code: STA-1141
• Type: Balcony Middle Glass Railing Post with Point Glass Adaptors
• Post height: 1230 mm
• Profile: 40×40×2 mm
• Material: AISI 304 stainless steel
• Finish: Satin brushed
• Installation: Side mounted
• Glass holders: Point glass adaptors
• Glass thickness: 8–18 mm
• Glass adaptor gaskets: Included in the set
• Weight: 3.45 kg

Applications

• Glass balcony railings.
• Glass terrace railings.
• Side-mounted glass railing systems.
• Residential glass railing systems.
• Commercial and public building glass railings.

Key Features

• Middle post for glass railing systems.
• Strong 40×40×2 mm square profile.
• Manufactured from AISI 304 stainless steel.
• Satin brushed finish.
• Point glass adaptors suitable for 8–18 mm thick glass.
• Glass adaptor gaskets are included in the set.
• Suitable for most indoor and outdoor railing applications.
• We manufacture the railing posts ourselves, allowing standard dimensions and glass adaptor positions to be adjusted and custom posts to be manufactured according to project requirements.

Installation

The post is mounted to the side of a balcony, terrace or other suitable solid base and is used as a middle post in a glass railing system. The glass is secured to the post using point glass adaptors.

The glass adaptor gaskets are included in the post set. The point glass adaptors are suitable for 8–18 mm thick glass.

Related Products

This post can be combined with other railing posts, glass holders, handrails and other railing components. Similar models are available in the glass posts with profile category.

Frequently Asked Questions

Where is this middle balcony glass railing post used?
The post is used as a middle element in balcony, terrace and other glass railing systems where the posts are mounted to the side of a suitable solid base.

What glass thickness are the point glass adaptors suitable for?
The point glass adaptors are suitable for 8–18 mm thick glass.

Are the glass adaptor gaskets included in the set?
Yes. The glass adaptor gaskets are included in the post set.

What is the post height?
The post height is 1230 mm.

Can custom-size railing posts be manufactured?
Yes. We manufacture the railing posts ourselves, so standard dimensions and glass adaptor positions can be adjusted according to project requirements.
