Bent Spigot Rod

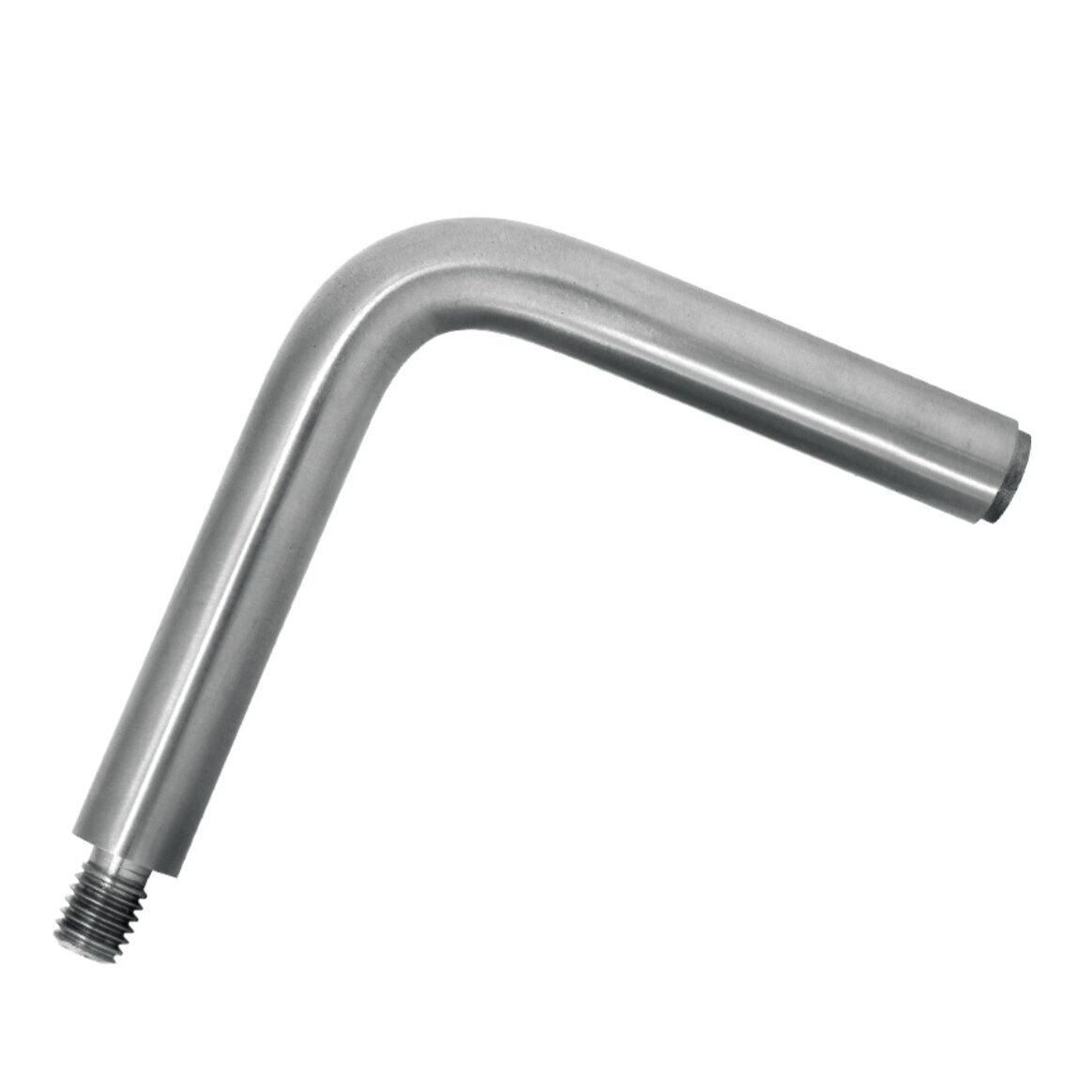

90° Bent Rod N08.5120.4US is a railing post support component with an M8 external thread and an M6 internal thread.

The rod is designed for assembling adjustable handrail brackets and railing post support structures. It is made from AISI 304 stainless steel and has a satin finish.

Technical information:

• Product code: N08.5120.4US
• Type: bent rod

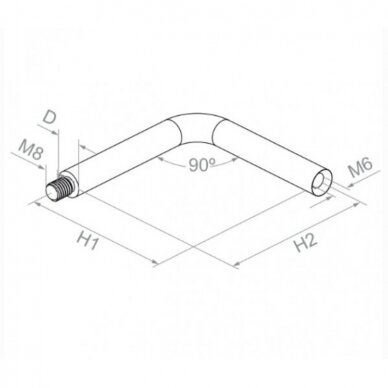

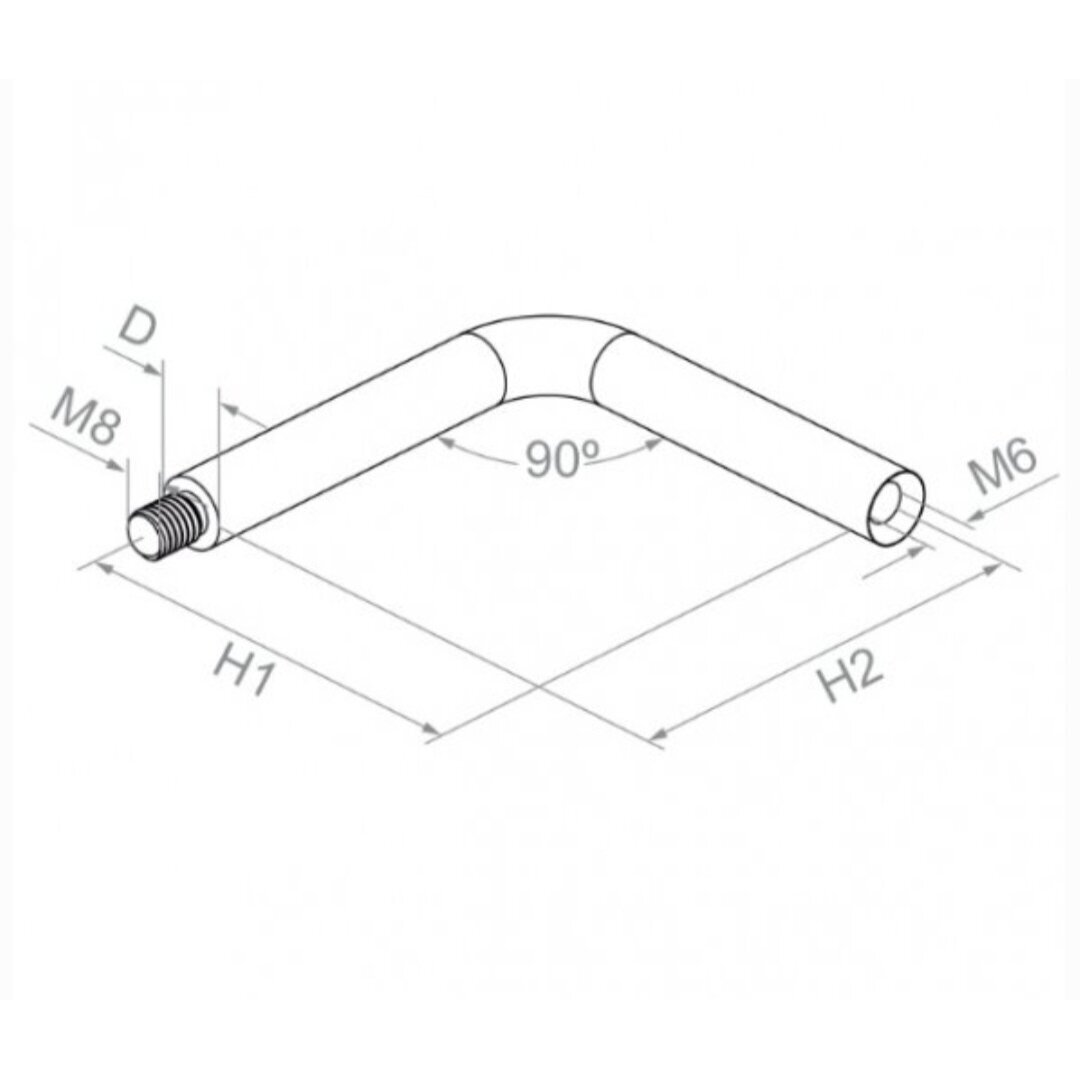

• Dimensions: 12 x 75 x 75 mm
• Angle: 90°
• External thread: M8
• Internal thread: M6
• Material: stainless steel
• Steel grade: AISI 304
• Finish: satin

Features:

• Bent at a 90° angle
• M8 external and M6 internal threads connect compatible components
• Designed for adjustable handrail brackets and railing post support structures
• AISI 304 stainless steel offers corrosion resistance
• Satin finish coordinates with stainless steel railing components

Applications:

• Assembly of adjustable handrail brackets
• Railing post support structures
• Stainless steel railing systems
• Indoor and outdoor railing structures

Installation:

Before installation, confirm that the connecting components are compatible with the M8 external and M6 internal threads of the rod.

Connect the rod to the corresponding railing system components according to the structural requirements. Once installed, check that the threaded connections and the complete structure are secure.

• Tubes and handrails
• Railing posts

Frequently asked questions:

What is the bend angle of the rod?
The rod is bent at a 90° angle.

What are the dimensions of the rod?
The rod measures 12 x 75 x 75 mm.

What threads does the rod have?
It has an M8 external thread and an M6 internal thread.

What is rod N08.5120.4US designed for?
It is designed for assembling adjustable handrail brackets and railing post support structures.

What material is the rod made from?
It is made from AISI 304 stainless steel and has a satin finish.
