Corner Wall Railing Post Bracket D42.4

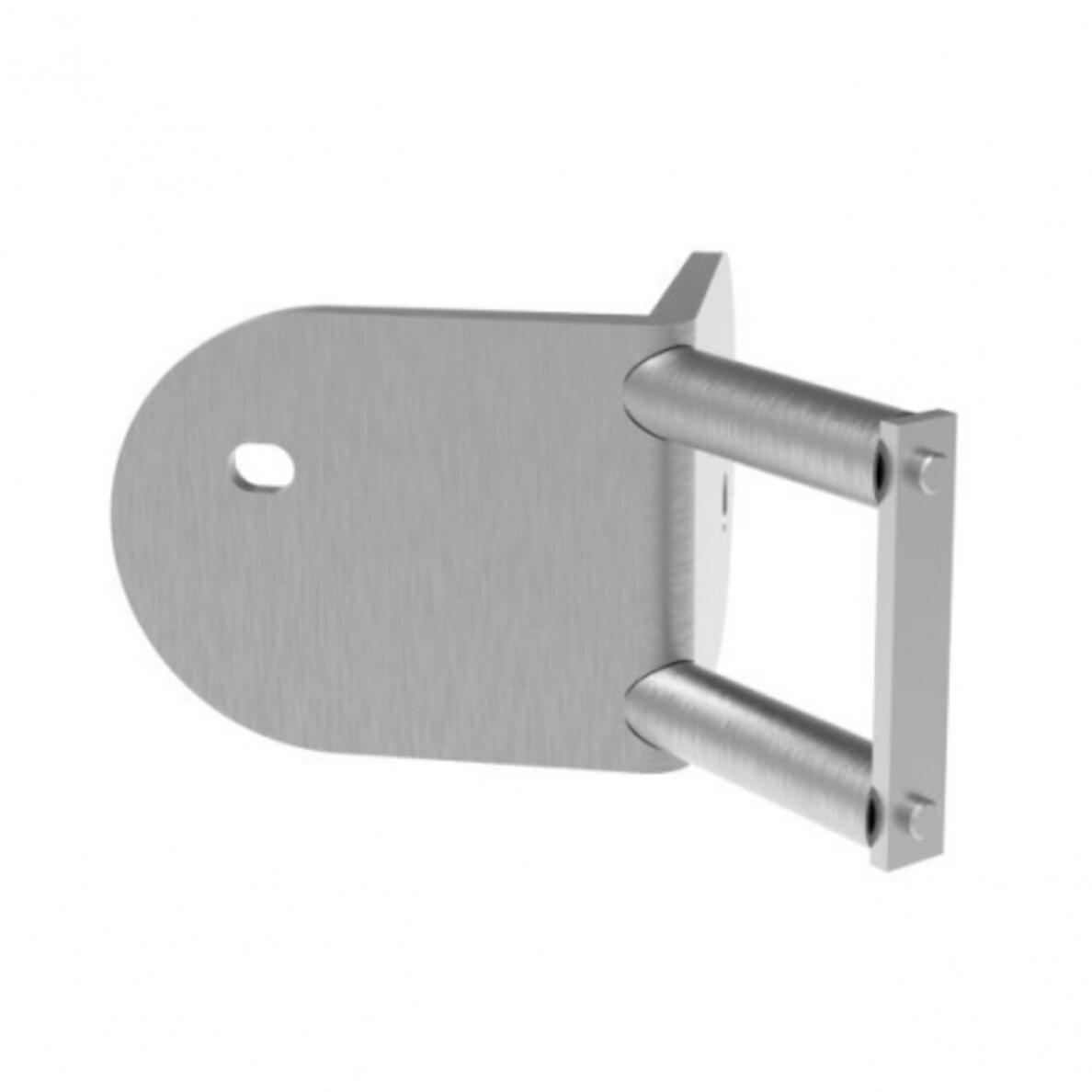

External Corner Wall Bracket for Ø42.4 Railing Posts STR-4005 is a stainless steel fixing component designed for mounting a Ø42.4 mm railing post on an external 90° corner.

Its two-support construction with an angled mounting plate allows a post to be installed where conventional wall-mounted brackets are unsuitable.

Technical Information:

• Product code: STR-4005
• Product type: corner wall-mounted railing post bracket
• Suitable post diameter: Ø42.4 mm
• Mounting location: external 90° corner
• Material: AISI 316 stainless steel
• Finish: satin

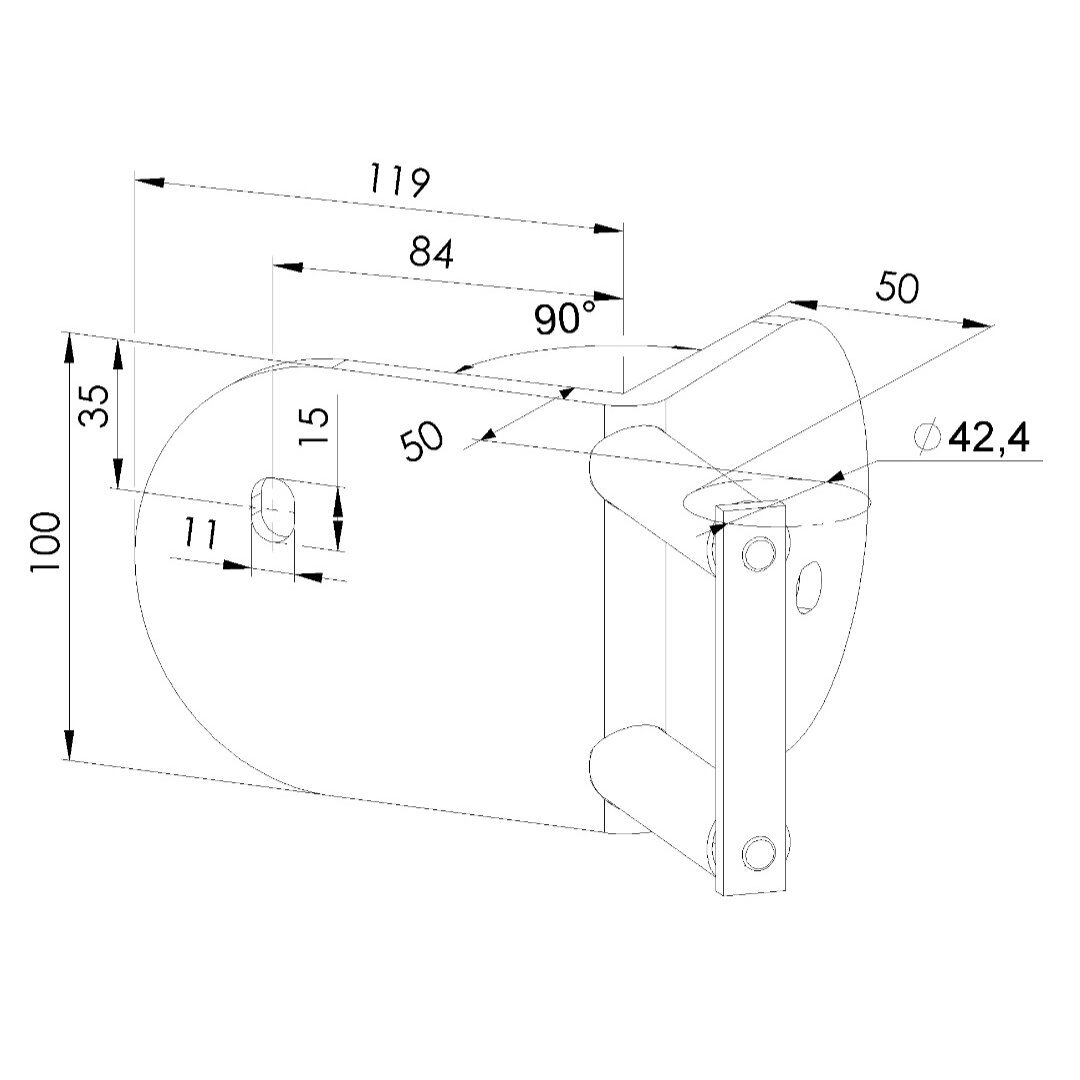

• Construction: two-support bracket with an angled mounting plate

Features:

• Designed for a Ø42.4 mm railing post
• Angled construction is suitable for installation on an external 90° corner
• Two supports help hold the railing post securely
• AISI 316 stainless steel offers corrosion resistance and durability
• Satin finish provides the railing structure with a professional appearance

Applications:

• Attaching a Ø42.4 mm railing post on an external 90° corner
• Locations where conventional wall-mounted brackets are unsuitable
• Indoor and outdoor railing structures
• Railing systems installed in coastal environments

Installation:

Before installation, confirm that the bracket is compatible with the Ø42.4 mm post and that the selected mounting location is an external 90° corner.

Select fixing components for the angled mounting plate and post according to the base material, railing system construction and load requirements. Check the stability of the complete connection after installation.

• Railing posts

Frequently Asked Questions:

What post is this bracket designed for?
The bracket is designed for a Ø42.4 mm railing post.

Where is the corner bracket installed?
It is designed for installation on an external 90° corner.

What material is the bracket made from?
It is manufactured from AISI 316 stainless steel.

What finish does the bracket have?
The bracket has a satin finish.

What is the construction of the bracket?
It consists of two supports and an angled mounting plate.
