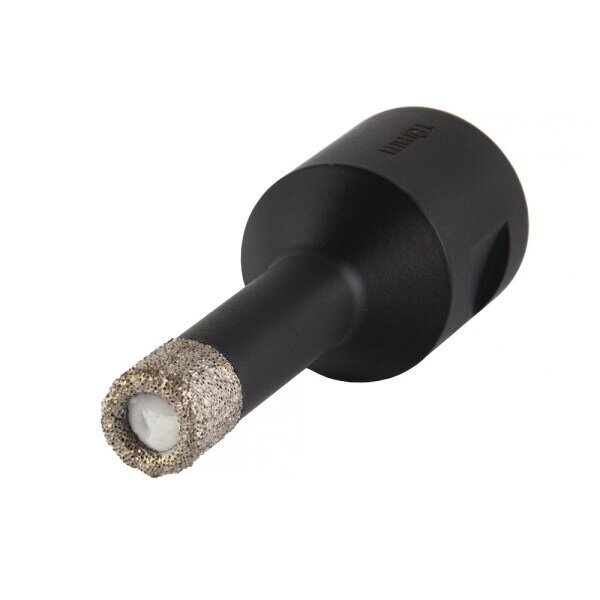

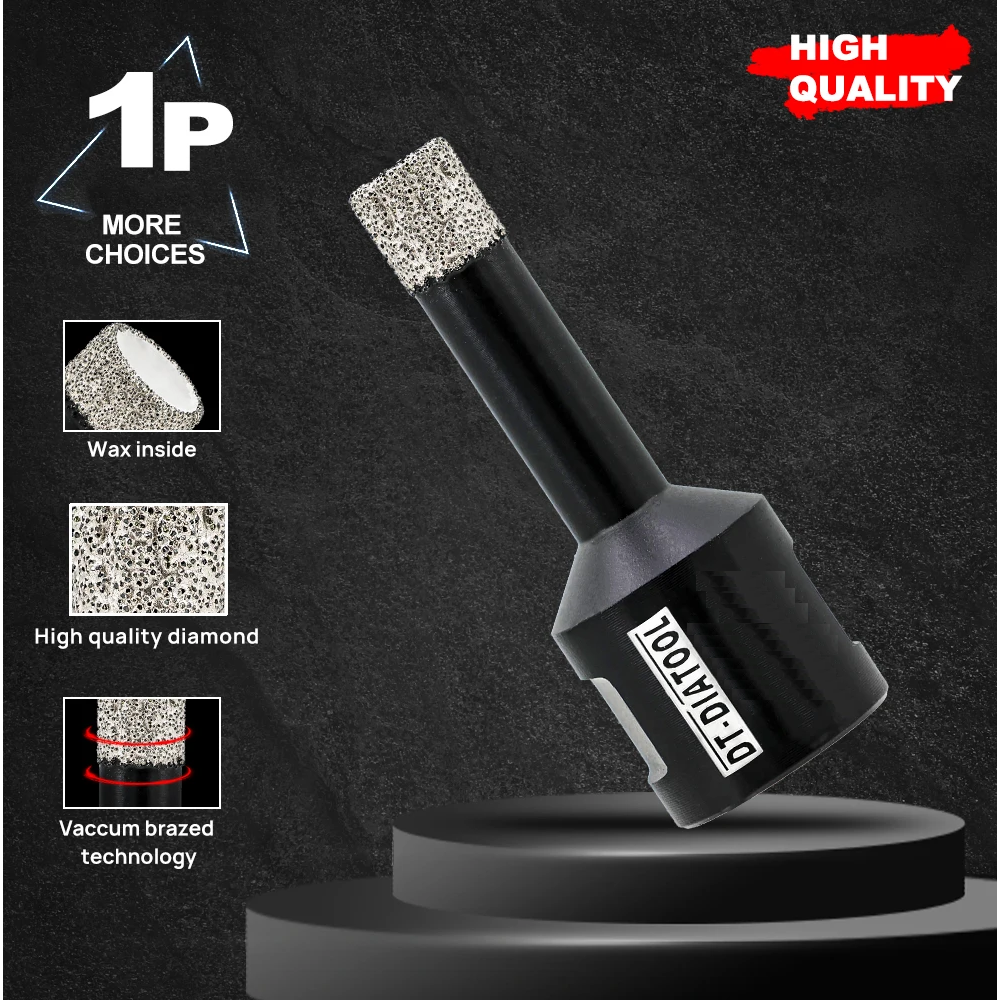

Diamond drill bit 10 mm

Diamond drill bit 10 mm (M14) is designed for precise and clean drilling in hard finishing materials. It is suitable for drilling ceramic tiles, porcelain stoneware, porcelain, granite and marble.

The drill bit features an M14 thread, allowing it to be mounted directly on a compatible angle grinder without additional adapters. The 10 mm diameter is suitable for mounting holes and other installation work requiring accurate drilling.

More drilling accessories can be found in our drills and taps category.

Technical information:

• Product code: GRA-0010
• Diameter: 10 mm
• Thread: M14
• Type: Diamond drill bit
• Suitable for: Angle grinder
• Drilling: Dry drilling, with optional water cooling
• Application: Drilling hard finishing materials

Applications:

• Ceramic tiles
• Porcelain stoneware
• Porcelain
• Granite
• Marble
• Drilling mounting holes

Advantages:

• Clean holes with minimal chipping
• High drilling accuracy
• M14 thread for direct mounting on an angle grinder
• Suitable for dry drilling
• Long service life when used correctly
• Optional water cooling

For installation and drilling work, see also our installation tools category.

Frequently asked questions:

What is the 10 mm diamond drill bit used for?
It is designed for drilling precise 10 mm holes in ceramic tiles, porcelain stoneware, porcelain, granite and marble.

Can this diamond drill bit be used with an angle grinder?
Yes. The M14 thread allows the drill bit to be mounted directly on a compatible angle grinder.

Is an additional adapter required?
No. The M14 thread allows direct mounting on a compatible angle grinder without an additional adapter.

Can the diamond drill bit be used for dry drilling?
Yes. It is suitable for dry drilling and can also be additionally cooled with water when required.
