Double Rod Holder D42.4

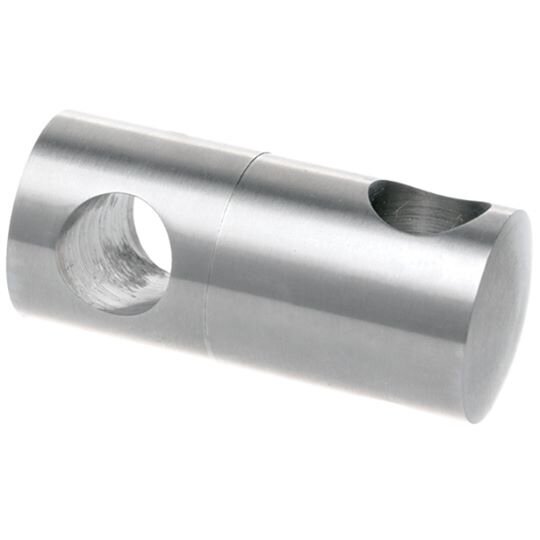

Double Rod Holder for Ø42.4 mm Post N02.1212.4US – a stainless steel double holder designed for fixing two Ø12 mm horizontal infill rods to a Ø42.4 mm round railing post. Its double design allows two rods to be securely mounted using a single component while maintaining a clean and professional appearance.

Manufactured from AISI 304 stainless steel with a satin finish, this holder offers excellent corrosion resistance, durability and an elegant appearance. It is suitable for both new installations and renovation of indoor and standard outdoor railing systems.

Technical Information:

• Code: N02.1212.4US
• Suitable for post: Ø42.4 mm
• Suitable for rods: 2 × Ø12 mm

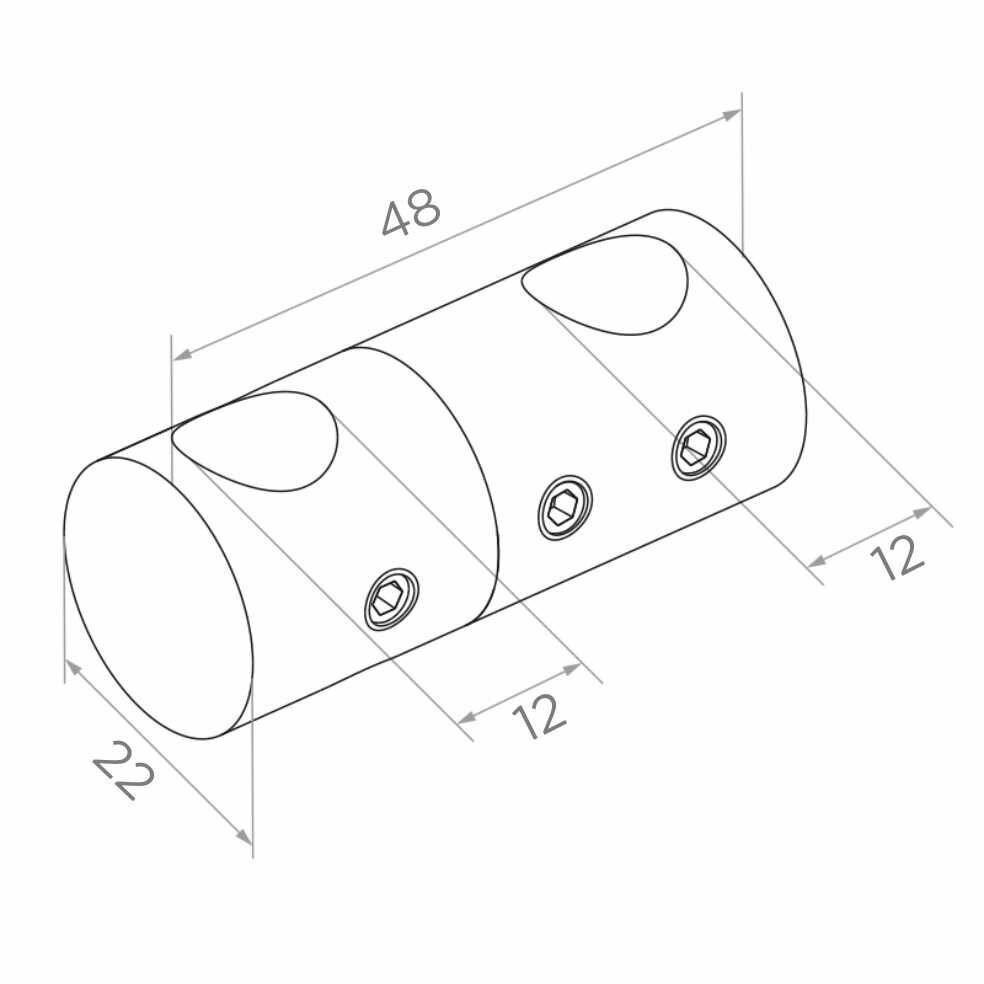

• Dimensions: Ø22 × 48 mm
• Material: AISI 304 stainless steel
• Finish: Satin
• Application: Double horizontal rod holder

Features:

• Designed for two Ø12 mm stainless steel rods.
• Suitable for Ø42.4 mm round railing posts.
• Double design allows two rods to be fixed with one holder.
• Durable AISI 304 stainless steel construction.
• Elegant satin finish.
• Quick and reliable installation.
• Suitable for indoor and standard outdoor railing systems.

Applications:

This holder is used in stainless steel railing systems for fixing two Ø12 mm horizontal infill rods to Ø42.4 mm round railing posts. It is suitable for balconies, staircases, terraces and other architectural railing applications.

Installation:

The holder is mounted onto the Ø42.4 mm post, while both Ø12 mm rods are inserted into the holder and secured using the integrated fixing screws. Proper installation ensures a durable and stable connection.

Related products:

For this holder we recommend other rod holders, rod elbows and connectors, rod end caps and the complete range of stainless steel rod elements.

Frequently Asked Questions:

How many rods can this holder secure?
This holder is designed to secure two Ø12 mm horizontal rods.

Which post diameter is it compatible with?
It is designed for Ø42.4 mm round stainless steel railing posts.

What material is it made from?
It is manufactured from AISI 304 stainless steel with a satin finish.

Is it suitable for outdoor use?
Yes. AISI 304 stainless steel is suitable for most standard outdoor environments. For coastal or highly corrosive conditions, AISI 316 products are recommended.

How are the rods secured?
Both rods are inserted into the holder and secured using the integrated fixing screws.
