Flange D42.4

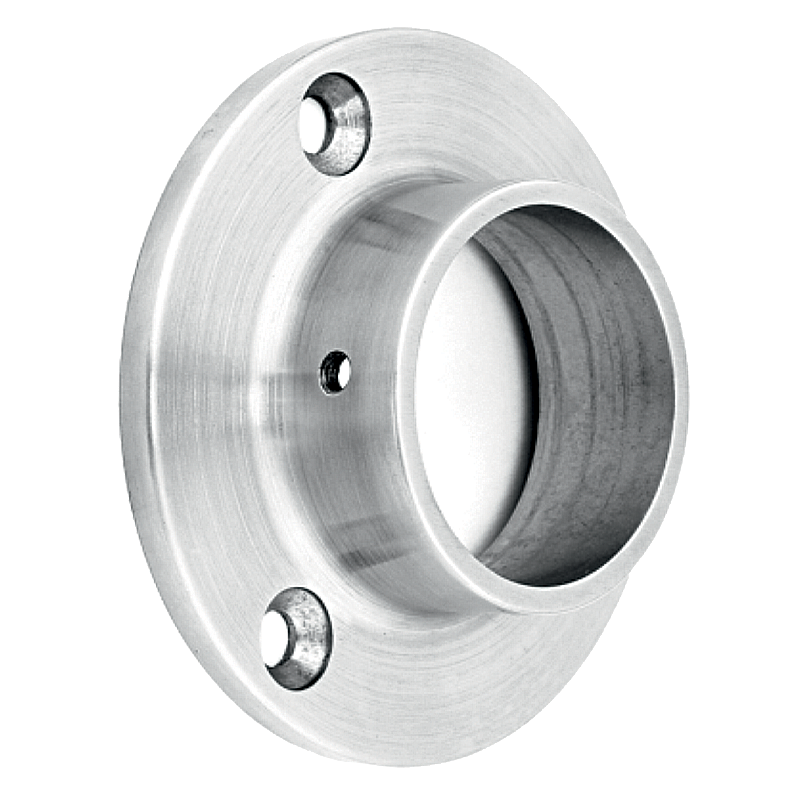

Wall-Mounted Tube Flange Ø42.4 N22.1001.4BS is a stainless steel fixing component designed for attaching a Ø42.4 mm railing tube or handrail to a wall or another flat and solid base.

The round flange has three mounting holes, while the tube is secured with a side screw. The product is manufactured from AISI 304 stainless steel and has a satin finish.

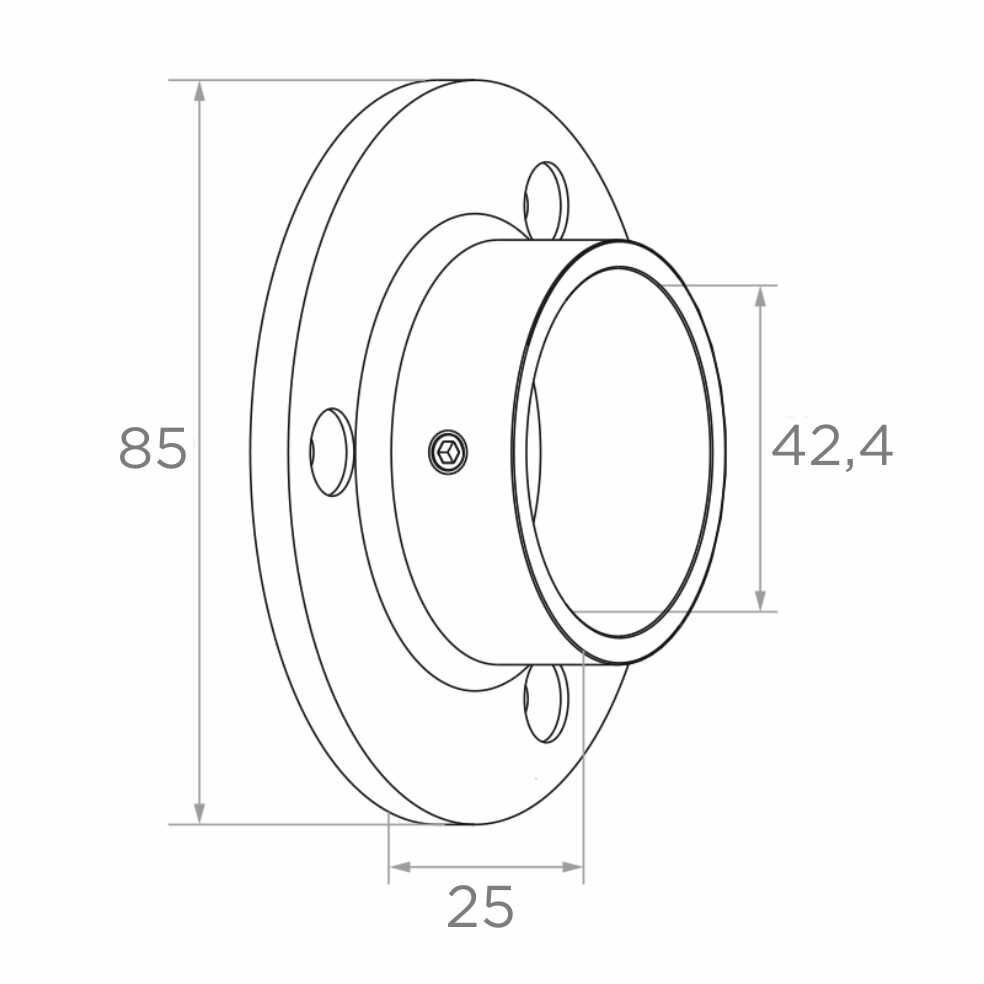

Technical Information:

• Product code: N22.1001.4BS
• Product type: wall-mounted tube flange
• Suitable tube diameter: Ø42.4 mm
• Shape: round
• Number of mounting holes: 3
• Tube fixing: side screw
• Material: AISI 304 stainless steel
• Finish: satin

Features:

• Designed for a Ø42.4 mm railing tube or handrail
• Three mounting holes allow the flange to be secured to a suitable base
• Side screw holds the tube inside the flange
• AISI 304 stainless steel offers corrosion resistance and durability
• Satin finish complements stainless steel railing components

Applications:

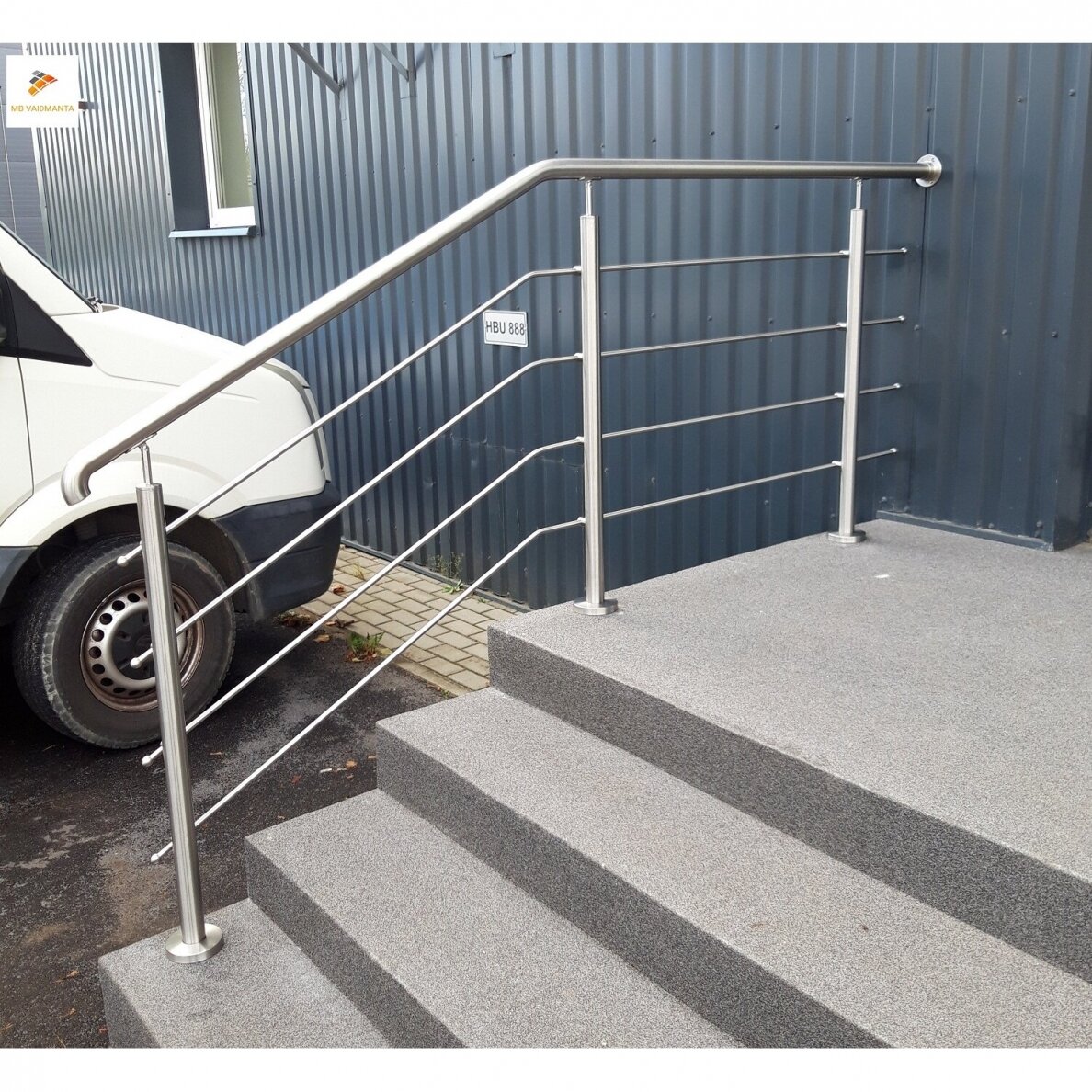

• Attaching a Ø42.4 mm railing tube to a wall
• Mounting a Ø42.4 mm handrail to a flat and solid base
• Stainless steel railing structures
• New and renovated railing systems

Installation:

Before installation, confirm that the flange is compatible with the Ø42.4 mm tube and select a suitable position on the wall or another flat and solid base.

Secure the flange through its three mounting holes, selecting fixing components according to the base material. Insert the tube into the flange and secure it with the side screw.

• Tubes and handrails

Frequently Asked Questions:

What tube is this flange designed for?
The flange is designed for a Ø42.4 mm railing tube or handrail.

How many mounting holes does the flange have?
The flange has three mounting holes.

How is the tube secured in the flange?
The tube is secured with a side screw.

What material is the flange made from?
It is manufactured from AISI 304 stainless steel.

What finish does the flange have?
The flange has a satin finish.
