Flat rod holder

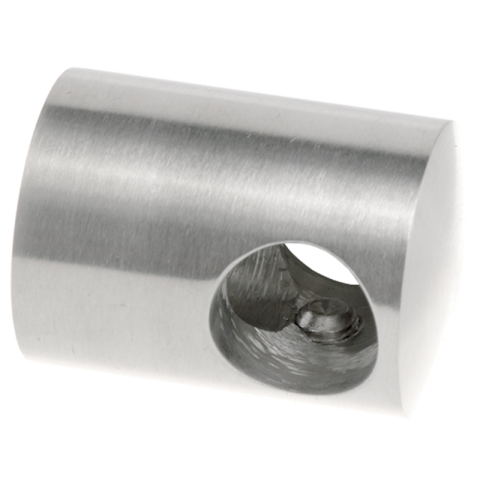

Flat Rod Holder N02.0012.4XS – a stainless steel holder designed for fixing a Ø12 mm horizontal infill rod to a flat surface or square profile. Its compact design provides a secure, stable and clean installation in stainless steel railing systems.

Manufactured from AISI 304 stainless steel with a satin finish, this rod holder offers excellent corrosion resistance, durability and a professional appearance. It is suitable for both new installations and renovation of indoor and standard outdoor railing systems.

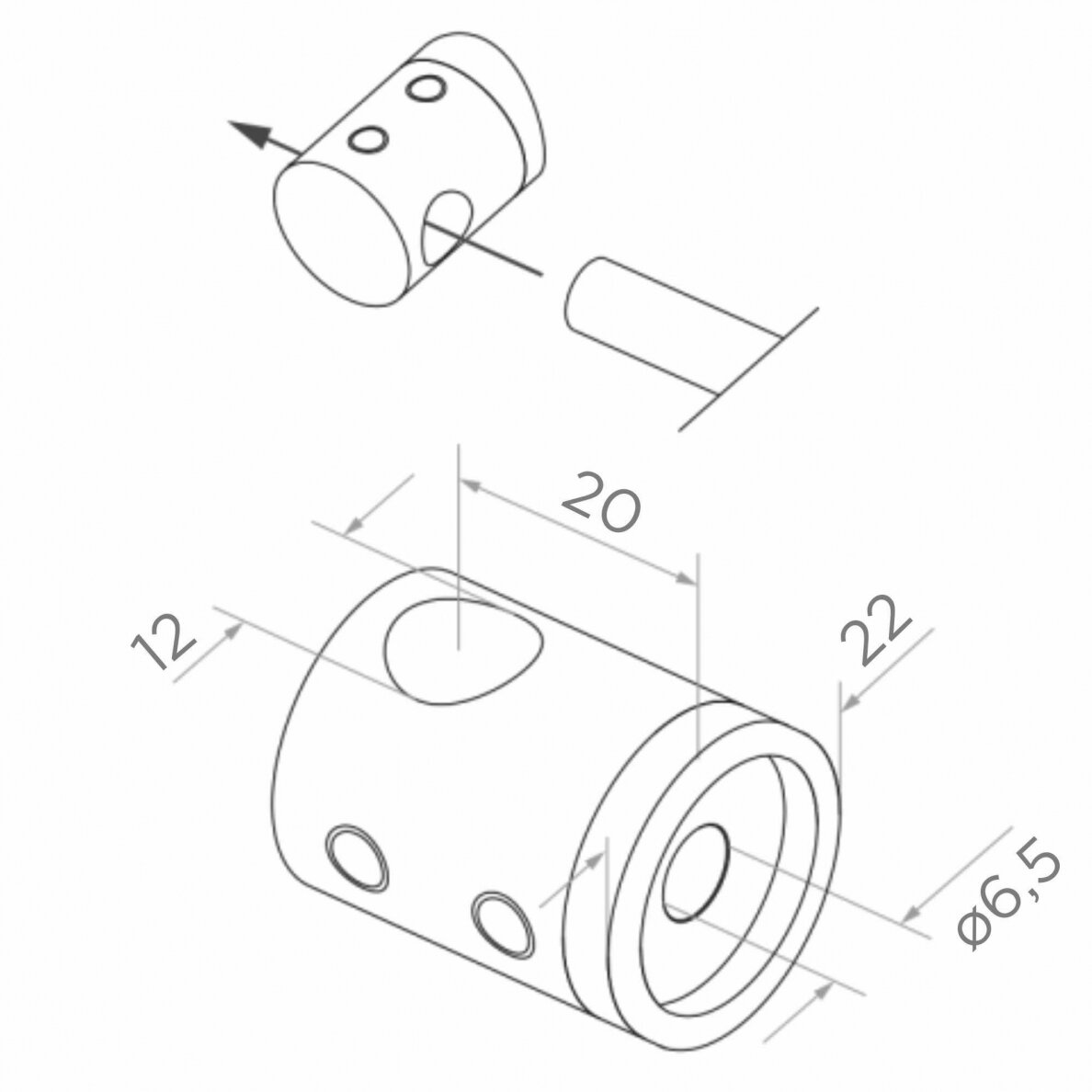

Technical Information:

• Code: N02.0012.4XS
• Installation: Flat surface / square profile
• Suitable for rod: Ø12 mm
• Material: AISI 304 stainless steel
• Finish: Satin
• Application: Horizontal infill rod holder

Features:

• Designed for Ø12 mm stainless steel rods.
• Suitable for flat surfaces and square profiles.
• Durable AISI 304 stainless steel construction.
• Elegant satin finish.
• Quick and reliable installation.
• Minimalist design.
• Suitable for indoor and standard outdoor railing systems.

Applications:

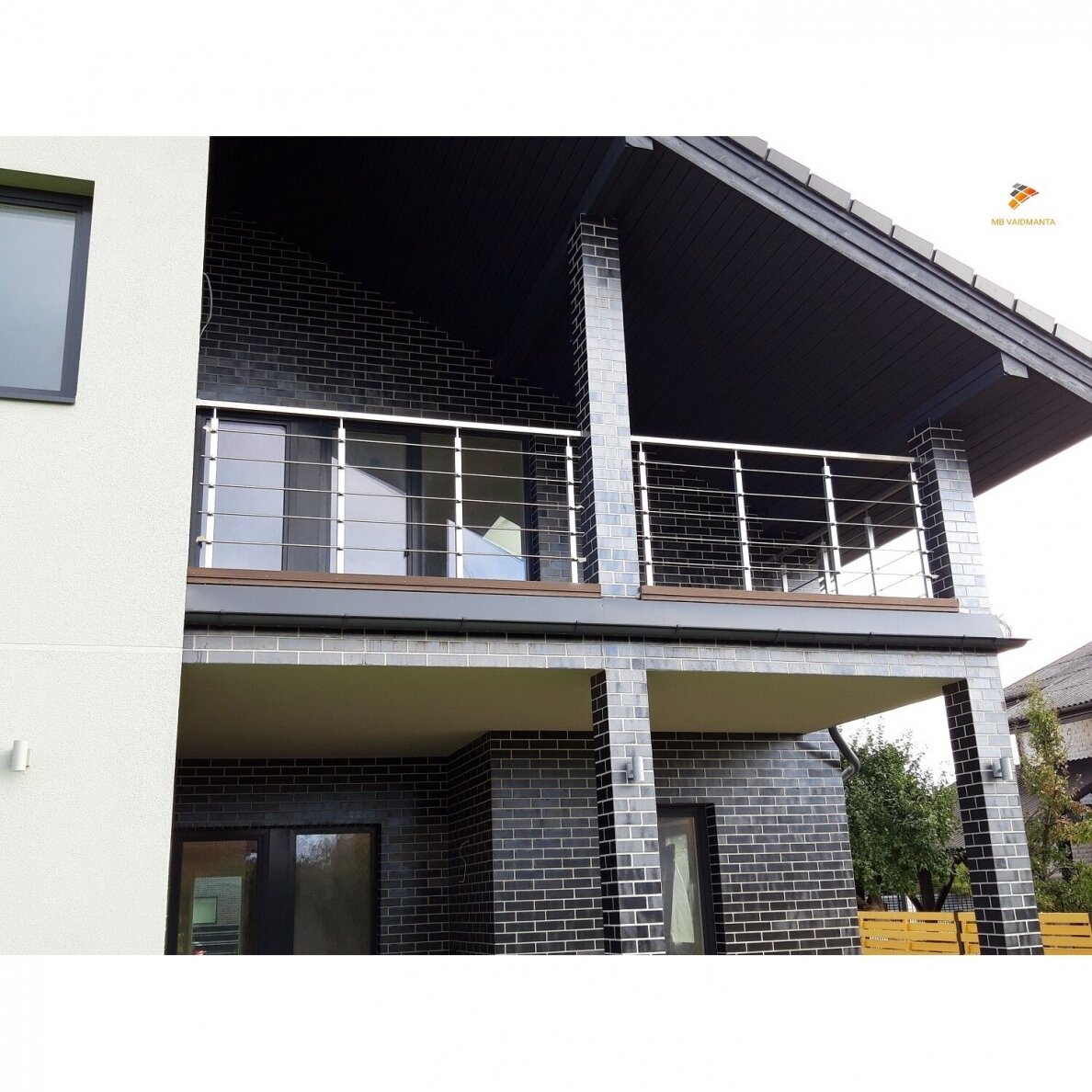

This flat rod holder is designed for fixing Ø12 mm horizontal infill rods to flat railing posts, square profiles and other flat structural surfaces. It is suitable for balconies, staircases, terraces and other stainless steel railing applications.

Installation:

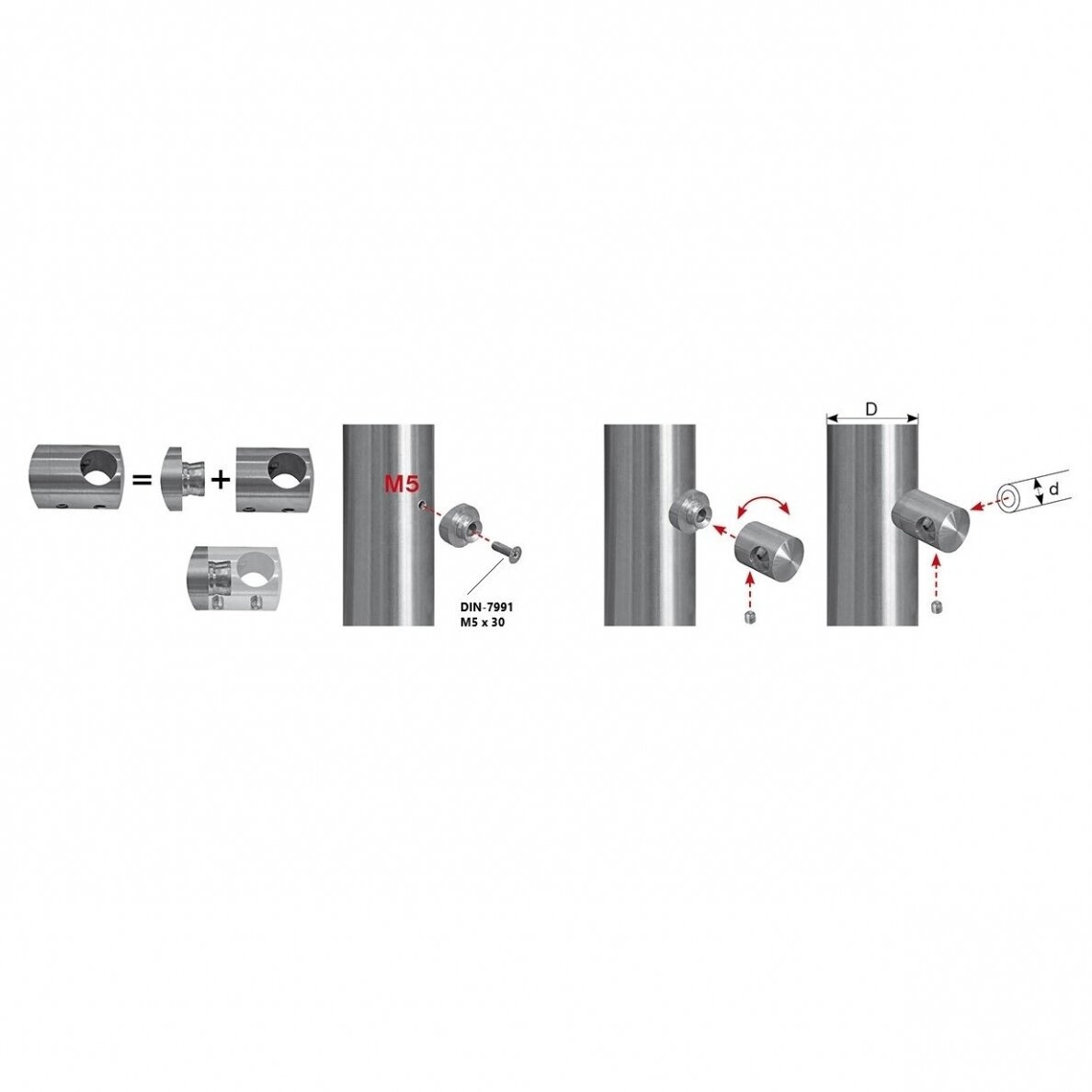

The holder is fixed to a flat surface using an appropriate fixing method. The Ø12 mm rod is inserted into the holder and secured with the internal fixing screw. Correct positioning of the holders ensures perfectly aligned horizontal rods and a professional finish.

Related products:

For this holder we recommend other rod holders, rod elbows and connectors, rod end caps and the complete range of stainless steel rod elements.

Frequently Asked Questions:

What is this holder used for?
It is designed for fixing Ø12 mm horizontal infill rods to flat surfaces or square profiles.

Which rod diameter is it compatible with?
It is designed for Ø12 mm stainless steel infill rods.

What material is it made from?
It is manufactured from AISI 304 stainless steel with a satin finish.

Is it suitable for outdoor use?
Yes. AISI 304 stainless steel is suitable for most standard outdoor environments. AISI 316 components are recommended for coastal or highly corrosive conditions.

How is the rod secured?
The rod is inserted into the holder and secured using the integrated internal fixing screw.
