Flat Wall Railing Post Bracket

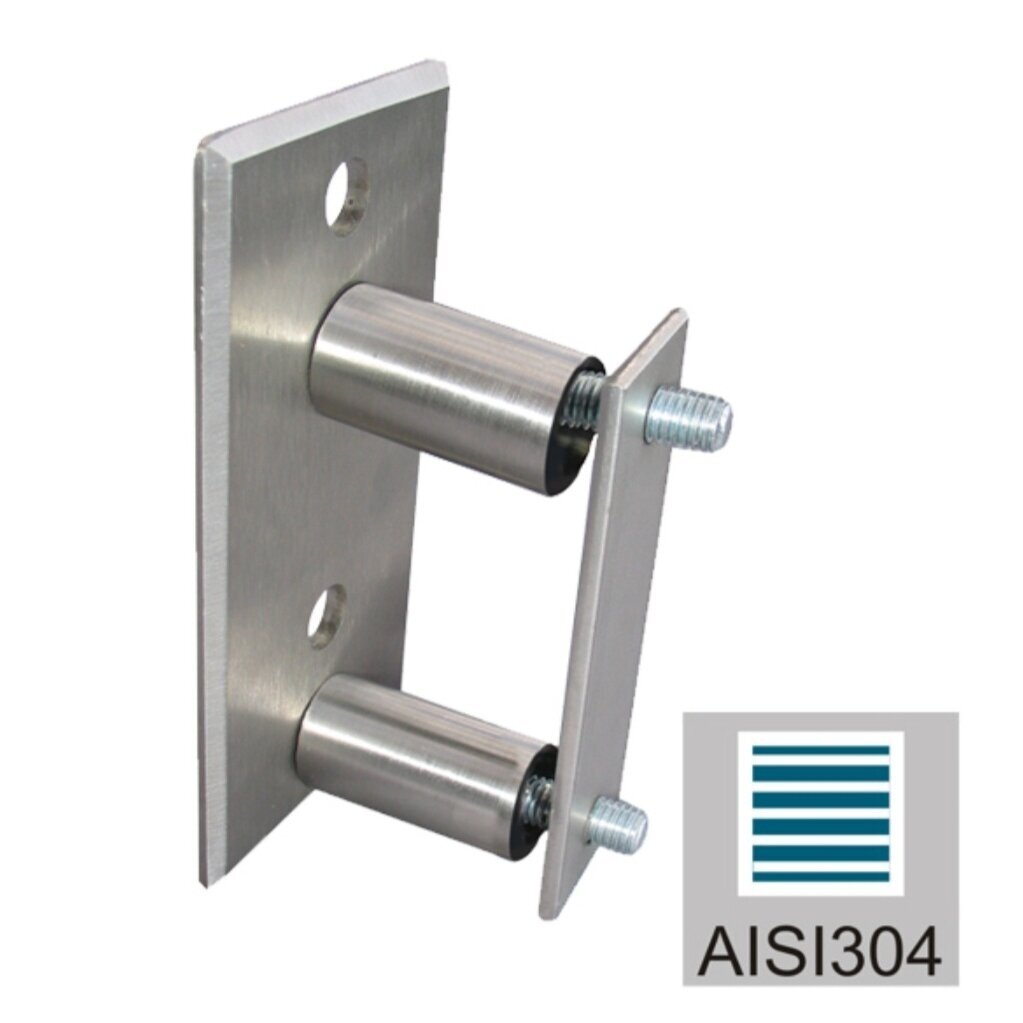

Wall-Mounted Bracket for Square Railing Posts STR-4009 is a stainless steel fixing component designed for attaching a 40 x 40 x 2 mm railing post to a wall or another solid base.

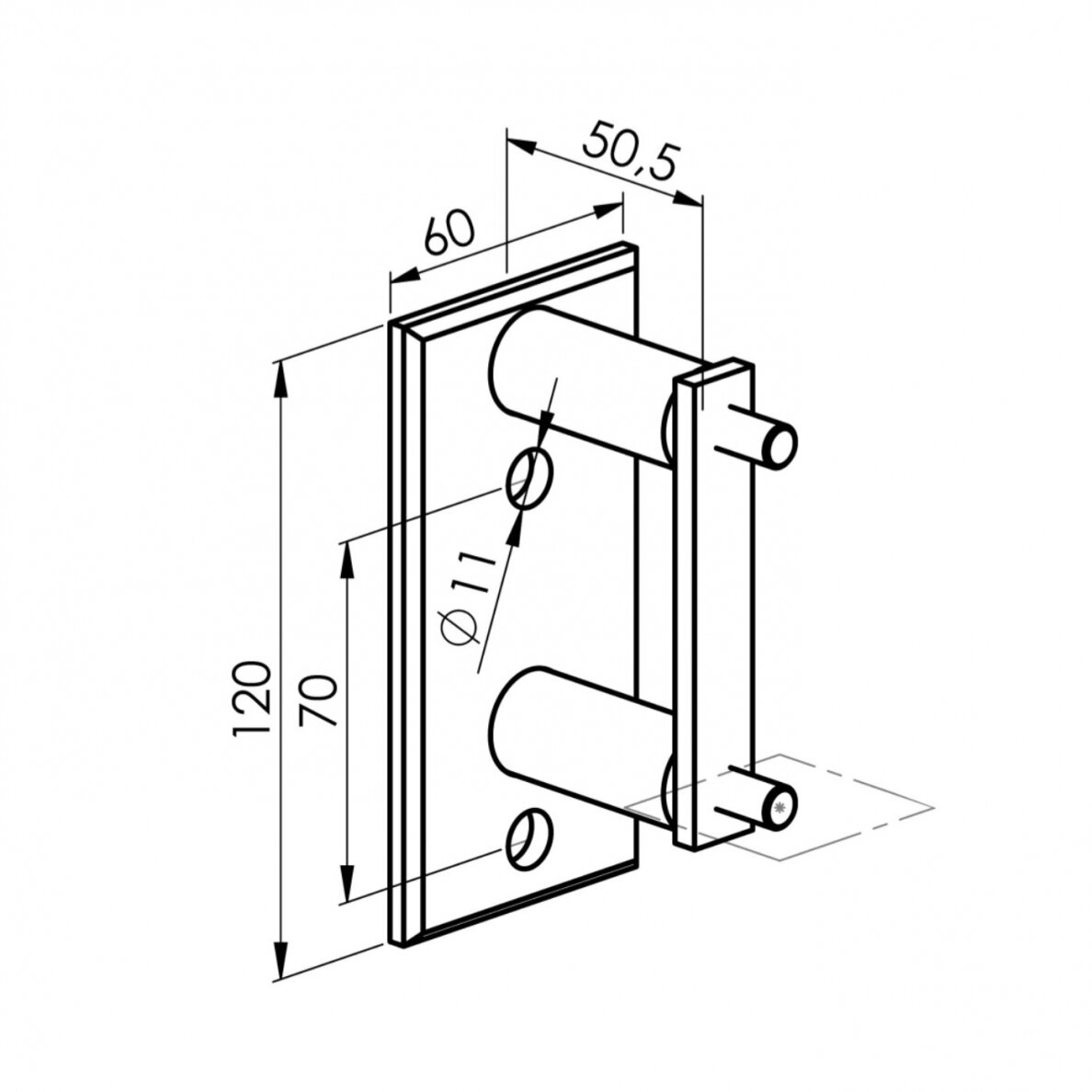

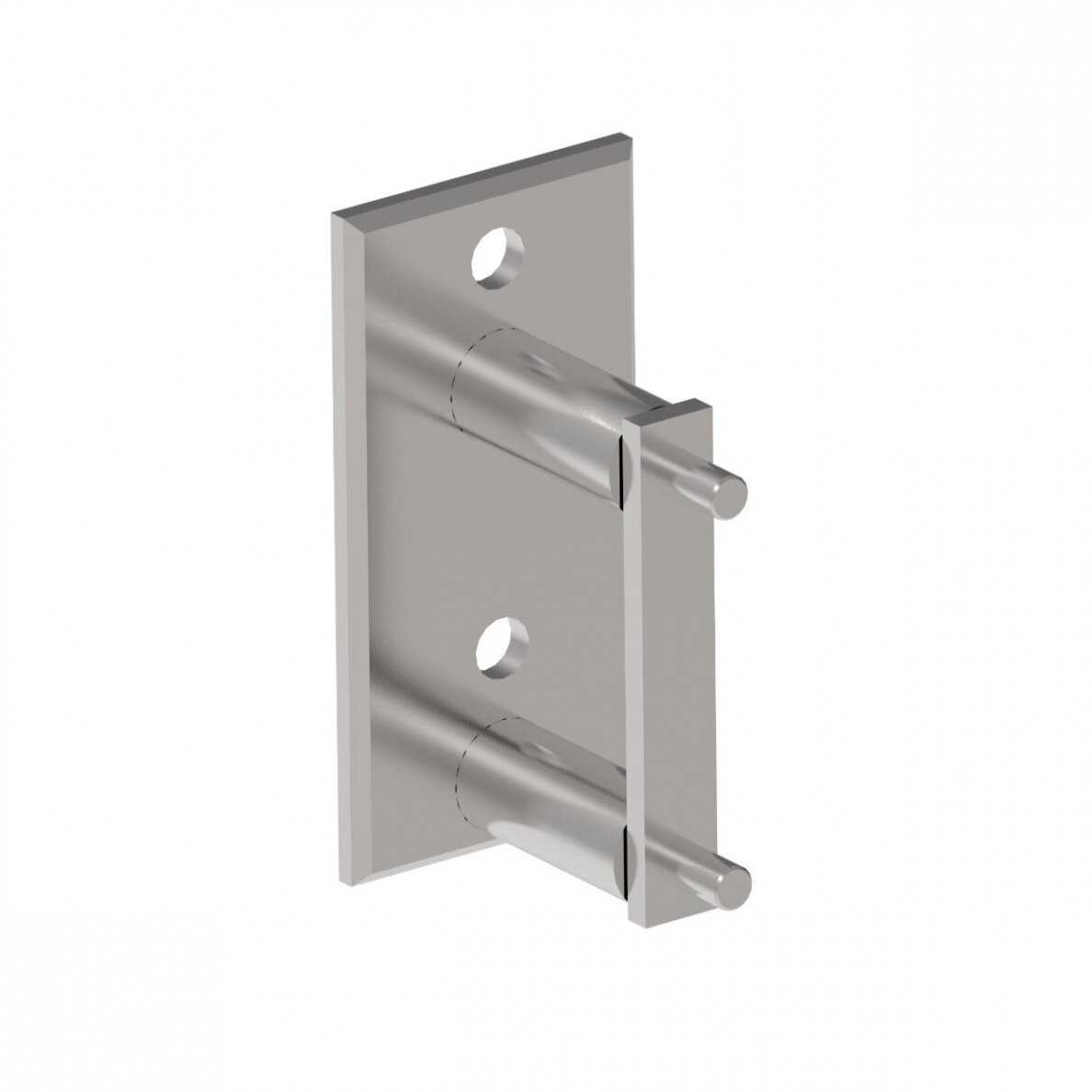

The bracket consists of a mounting plate, two supports and a flat front fixing plate. This construction helps create a secure connection while maintaining a neat railing system appearance.

Technical Information:

• Product code: STR-4009
• Product type: wall-mounted railing post bracket
• Suitable post size: 40 x 40 x 2 mm
• Mounting location: wall or another solid base
• Material: AISI 304 stainless steel
• Finish: satin
• Construction: two supports, mounting plate and flat front fixing plate

Features:

• Designed for a 40 x 40 x 2 mm square railing post
• Two supports help hold the post securely
• Flat front plate helps create a secure connection between the post and bracket
• Mounting plate allows the bracket to be attached to a wall or another base
• AISI 304 stainless steel and a satin finish provide durability and a neat appearance

Applications:

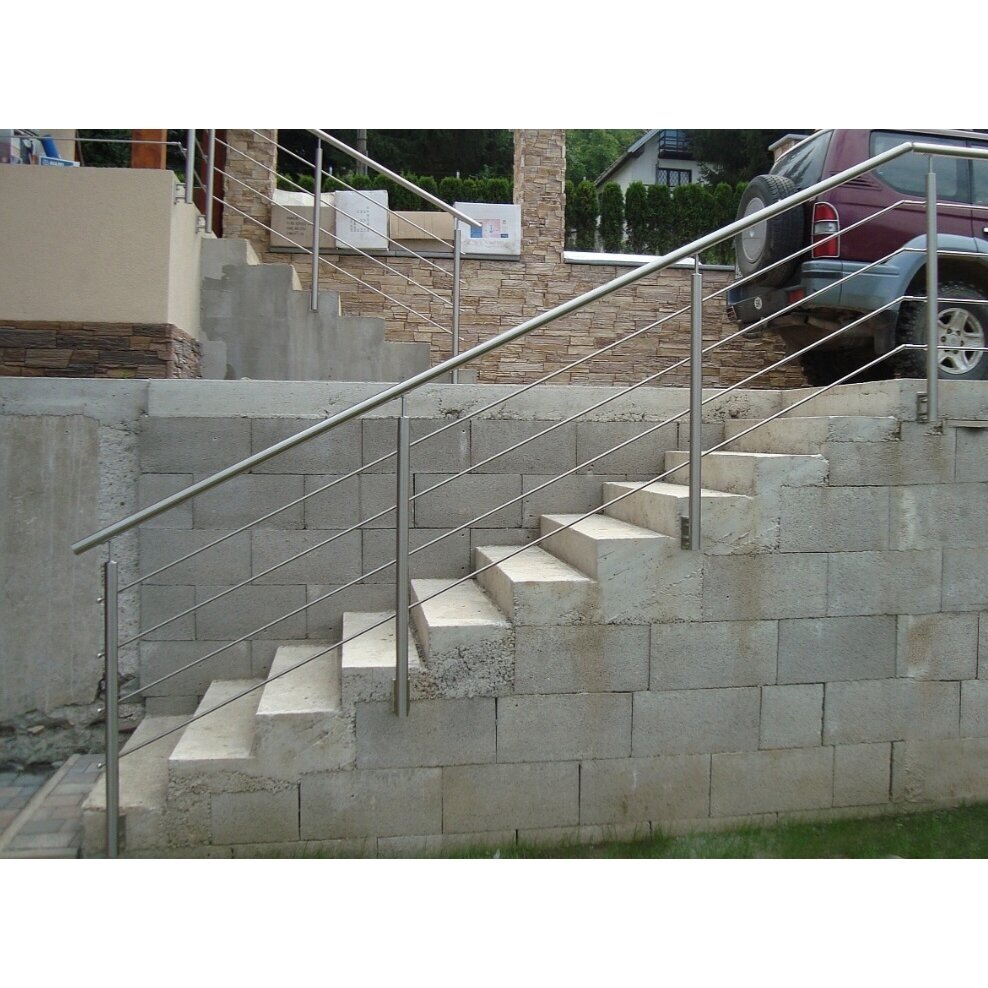

• Attaching a 40 x 40 x 2 mm square railing post to a wall
• Mounting a railing post to another solid base
• Wall-mounted stainless steel railing structures
• New and renovated railing systems

Installation:

Before installation, confirm that the bracket is compatible with the 40 x 40 x 2 mm post and select a suitable position on the wall or other solid base.

Select fixing components for the mounting plate and post according to the base material, railing system construction and load requirements. Check the stability of the complete connection after installation.

• Railing posts

Frequently Asked Questions:

What post is this bracket designed for?
The bracket is designed for a 40 x 40 x 2 mm square railing post.

Where is the railing post bracket mounted?
It is designed for mounting on a wall or another solid base.

What material is the bracket made from?
It is manufactured from AISI 304 stainless steel.

What finish does the bracket have?
The bracket has a satin finish.

What is the construction of the bracket?
It consists of a mounting plate, two supports and a flat front fixing plate.
