Glass Adaptor Spacer

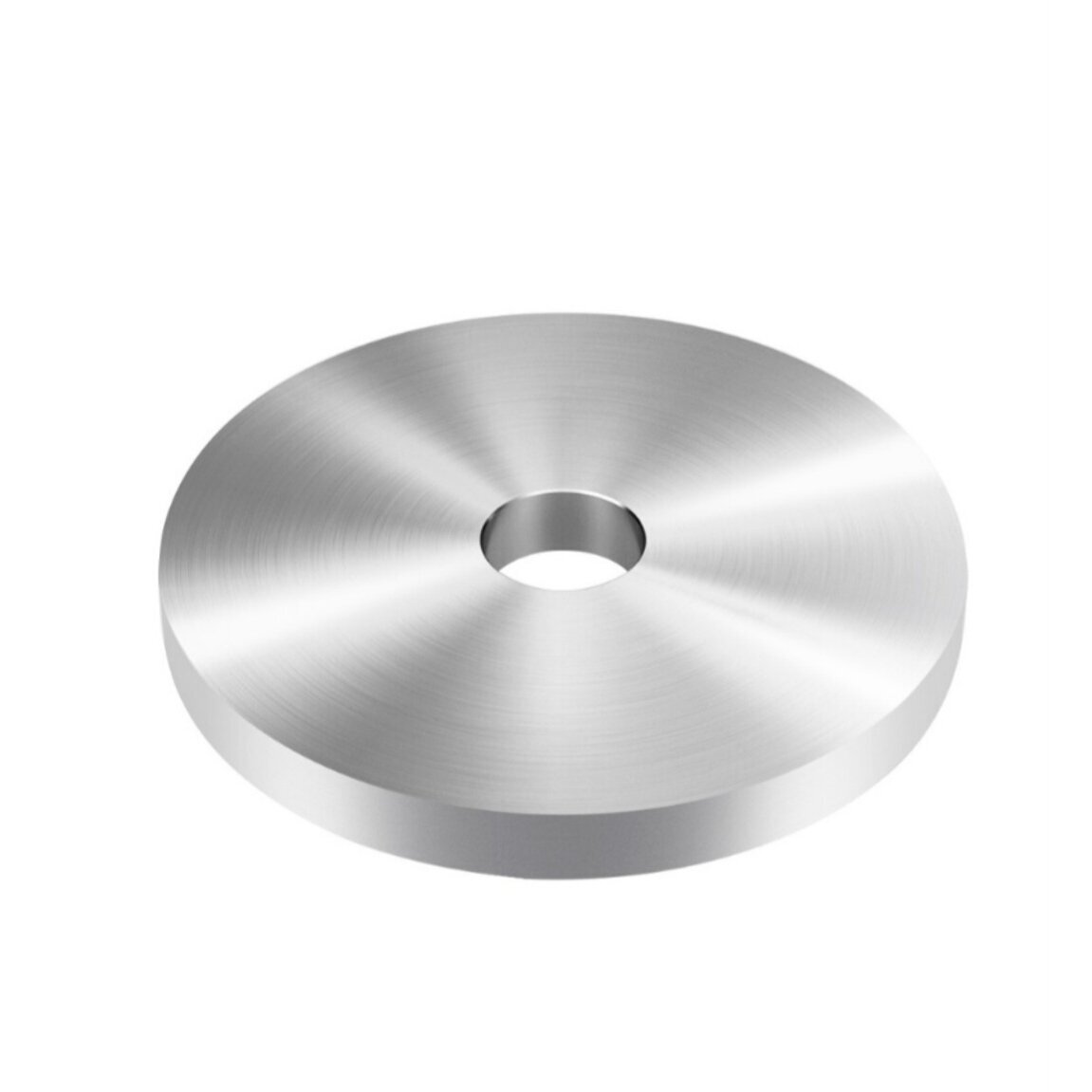

Glass Adaptor Spacer N01.5005.4US is designed to increase the distance between a point-fixed glass adaptor and a flat structural surface. The 50 mm diameter and 5 mm thick spacer provides a simple way to adjust the installation position of the glass adaptor and achieve the required distance from a wall or another fixing surface.

The spacer is manufactured from high-quality AISI 304 stainless steel, which provides corrosion resistance, a long service life and an attractive satin finish. The component has no thread and is designed for use with a point-fixed glass adaptor secured with an M10 fixing bolt.

Technical Information:

• Model: N01.5005.4US
• Purpose: increasing the distance between a glass adaptor and a flat surface

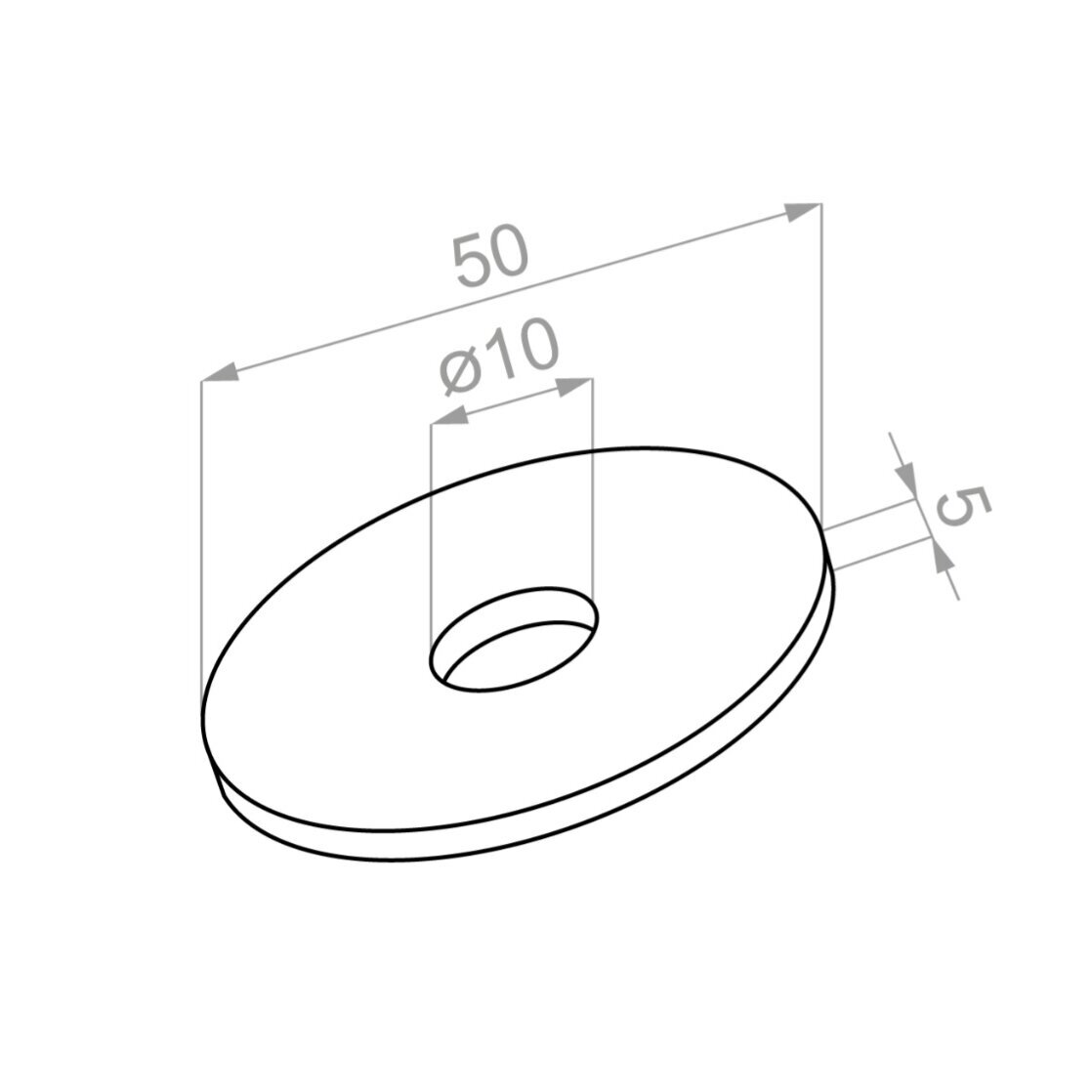

• Spacer diameter: 50 mm
• Spacer thickness: 5 mm
• Thread: none
• Compatibility: point-fixed glass adaptors with an M10 fixing bolt
• Material: AISI 304 stainless steel
• Finish: satin
• Package contents: 1 glass adaptor spacer

Features:

• Simple distance adjustment – increases the distance between the glass adaptor and the fixing surface by 5 mm.
• 50 mm diameter – designed for point-fixed glass adaptors of the same diameter.
• Used with an M10 bolt – suitable for adaptors installed with an M10 fixing bolt.
• AISI 304 stainless steel – corrosion-resistant and suitable for both indoor and outdoor use.
• Satin finish – matches satin-finished stainless steel adaptors and other railing components.

Applications:

• Glass railings
• Point-fixed glass adaptor installation
• Glass partitions
• Staircase, balcony and terrace glass structures
• Adjusting the distance from a wall or another flat surface

Installation:

The glass adaptor spacer is installed between the point-fixed glass adaptor and a flat fixing surface. The M10 fixing bolt passes through the central hole in the spacer and secures the glass adaptor to the structure.

One 5 mm thick spacer increases the distance between the adaptor and the fixing surface by 5 mm. More information about selecting and installing point-fixed glass adaptors is available in our technical guide Glass Clamp Installation and Applications.

• Glass Adaptors
• Stainless Steel Tubes
• Glass Railing Posts
• Glass Railing Systems

Frequently Asked Questions:

What is this glass adaptor spacer used for?
The spacer is used to increase the distance between a point-fixed glass adaptor and a flat fixing surface.

How much does this spacer increase the distance from the surface?
One spacer increases the distance by 5 mm.

Does the spacer have a thread?
No. The spacer has no thread, and the glass adaptor fixing bolt passes through its central hole.

What type of fixing bolt is this spacer designed for?
This model is designed for point-fixed glass adaptors installed with an M10 fixing bolt.

Is the spacer suitable for outdoor use?
Yes. AISI 304 stainless steel is corrosion-resistant and suitable for both indoor and outdoor use in normal environmental conditions.
