Handrail holder D42.4

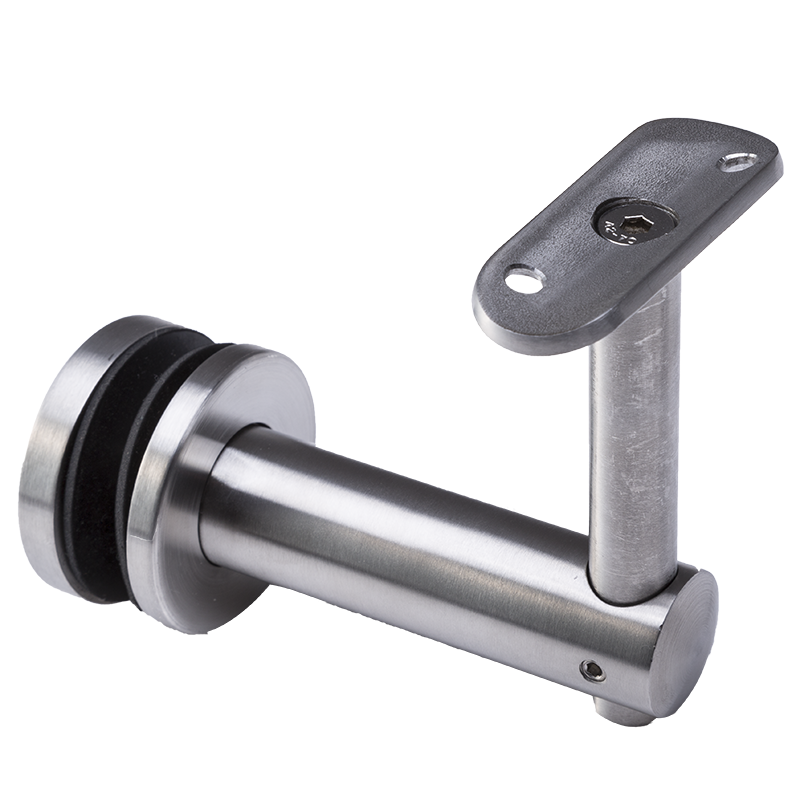

Glass-Mounted Handrail Bracket Ø42.4 mm N05.2552.4BS is designed to secure a 42.4 mm diameter stainless steel handrail to glass.

The bracket is made from AISI 304 stainless steel and has a satin finish. The included rubber gasket protects the glass from direct contact with the metal.

Technical information:

• Product code: N05.2552.4BS
• Type: glass-mounted handrail bracket
• Handrail diameter: 42.4 mm
• Material: stainless steel
• Steel grade: AISI 304
• Finish: satin
• Mounting: to glass
• Package contents: handrail bracket with glass gasket
• Weight: 0.605 kg

Features:

• Designed for a 42.4 mm diameter handrail
• Suitable for securing a handrail to glass
• Rubber gasket protects the glass from direct contact with the metal
• AISI 304 stainless steel construction is suitable for railing systems
• Satin finish coordinates with other stainless steel components

Applications:

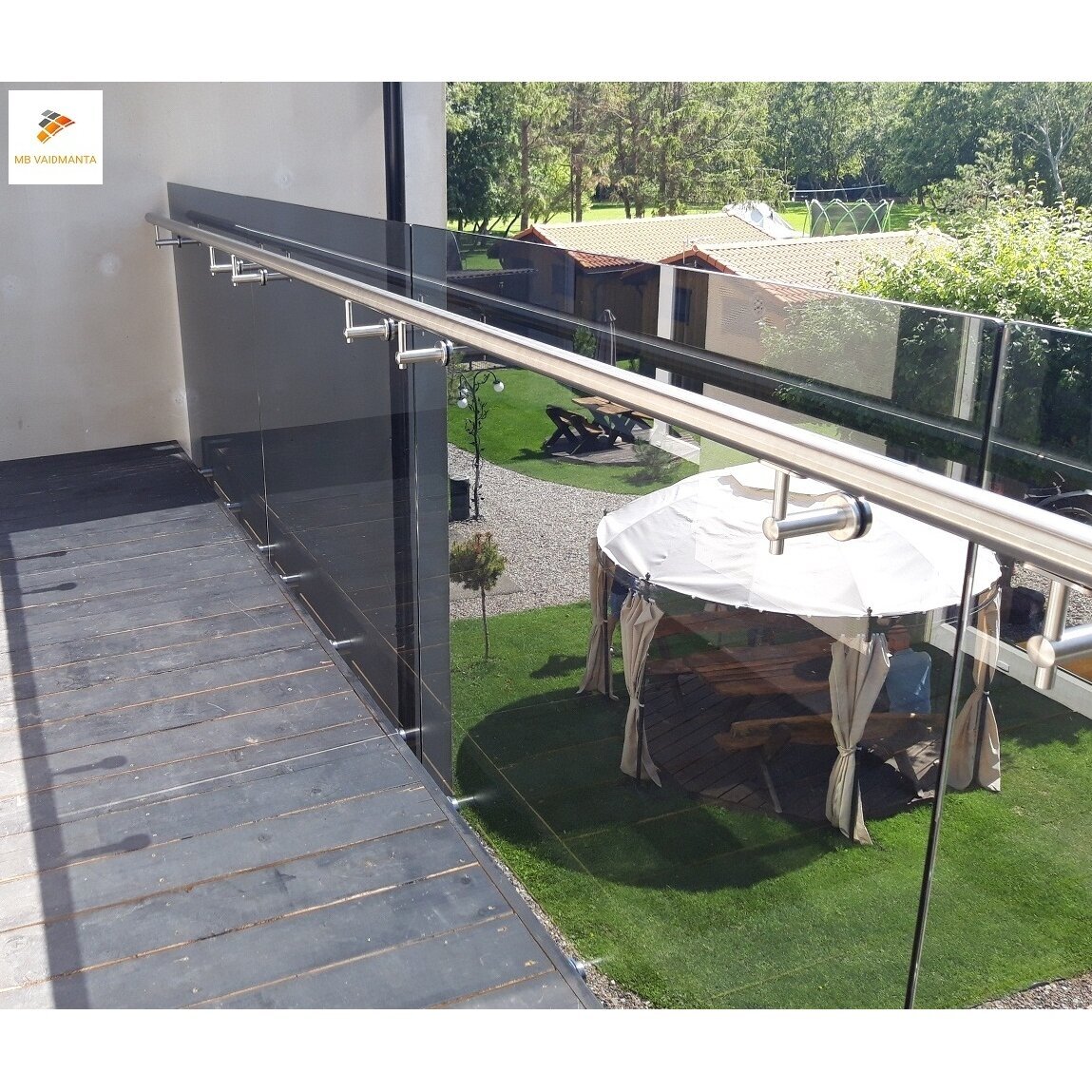

• Glass railing systems
• Balcony railings
• Stairway structures
• Stainless steel handrails with a diameter of 42.4 mm

Installation:

Before installation, confirm that the handrail diameter is 42.4 mm and select the bracket position on the glass according to the railing system requirements.

Place the included rubber gasket between the bracket and the glass to prevent direct contact between the metal and glass. Once installed, check that both the bracket and handrail are secure.

• Glass railings
• Tubes and handrails

Frequently asked questions:

What handrail is bracket N05.2552.4BS designed for?
It is designed for a stainless steel handrail with a diameter of 42.4 mm.

Where is this bracket installed?
The bracket is designed to secure a handrail to glass.

What material is the bracket made from?
It is made from AISI 304 stainless steel and has a satin finish.

Is a glass gasket included?
Yes, the bracket is supplied with a rubber glass gasket.

What is the weight of the bracket?
The bracket weighs 0.605 kg.
