M6 Facade Fixing Set, Brown (4 pcs.)

M6 Fixing Set for Insulated Facade, Brown (4 pcs.) is designed for mounting various elements through the facade insulation layer into the load-bearing wall. The set includes four 330 mm long A2 stainless steel M6 threaded rods and four brown RAL 8019 M6 nut caps for a neat finished appearance.

The standard set is suitable for facades with insulation thicknesses up to 250 mm. For thinner insulation, the threaded rods can be shortened, while for insulation thicker than 250 mm, we can supply longer M6 threaded rods on request.

Technical Information

• Code: INK-330-M6-4-Brown
• Thread: M6
• Threaded rod length: 330 mm
• Threaded rod material: A2 stainless steel
• Maximum insulation thickness: up to 250 mm
• Wall plug: multi-purpose SHARK® TWIST 10×56
• Nut: M6, A2 stainless steel
• Cap nut: M6, A2 stainless steel
• Nut cap: M6, brown RAL 8019

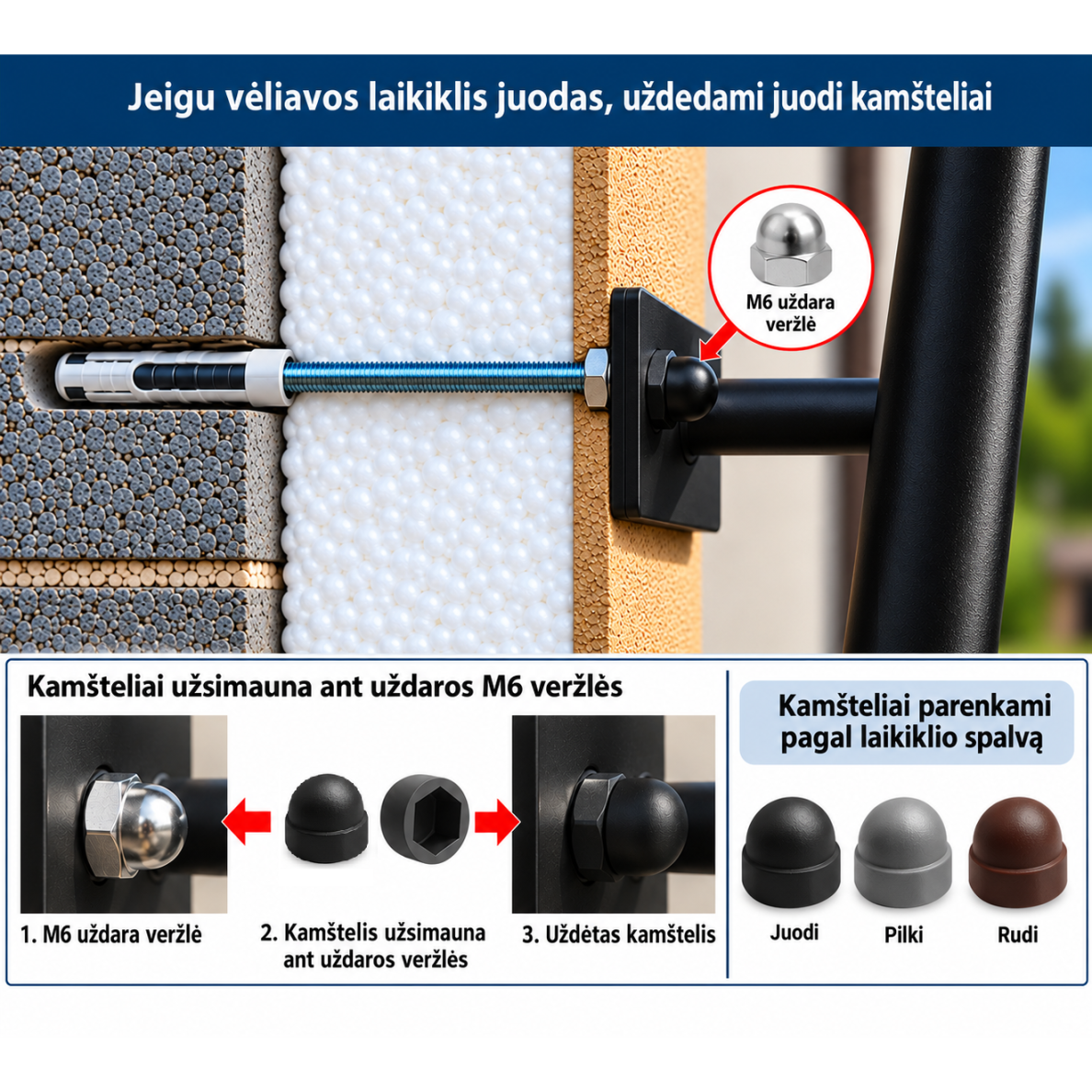

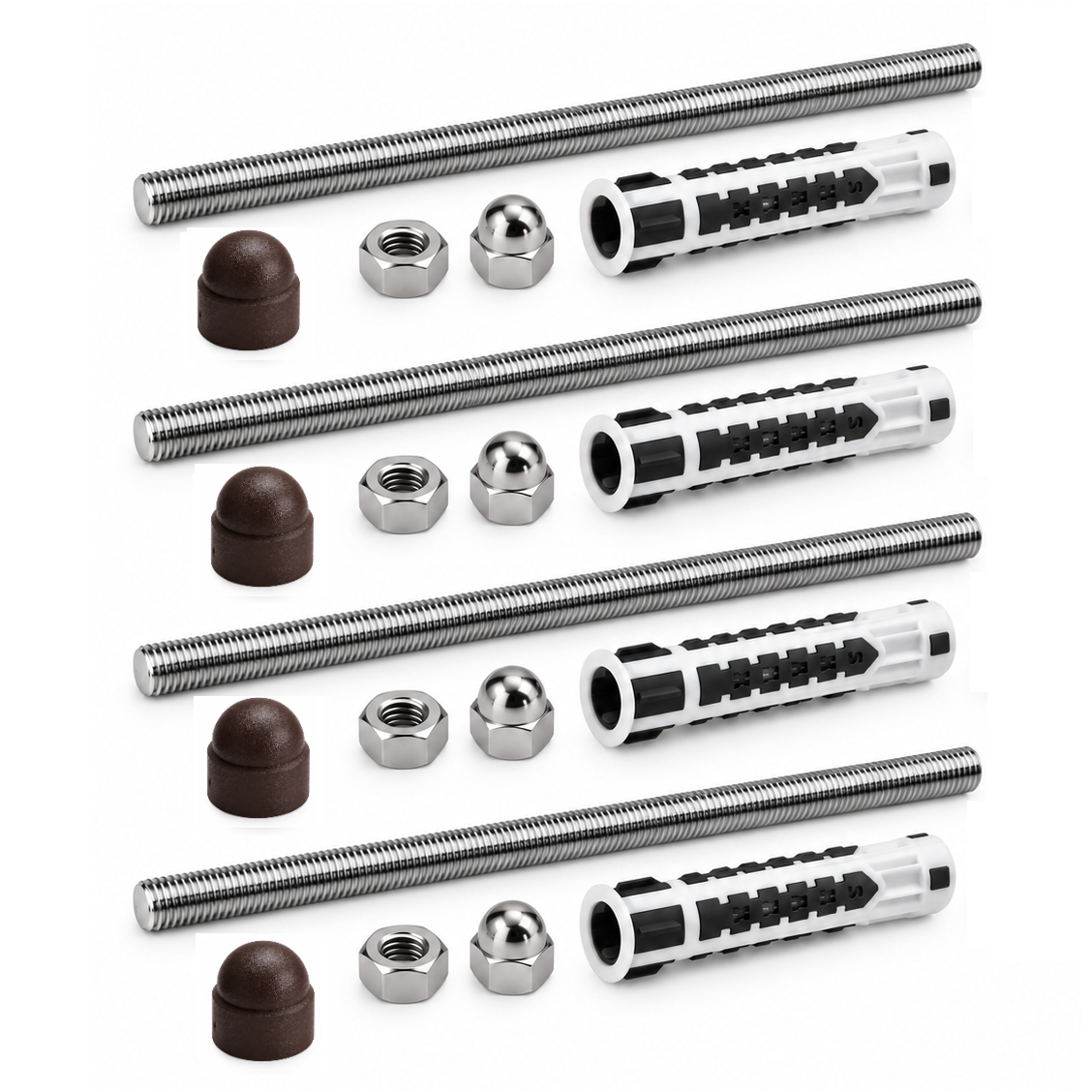

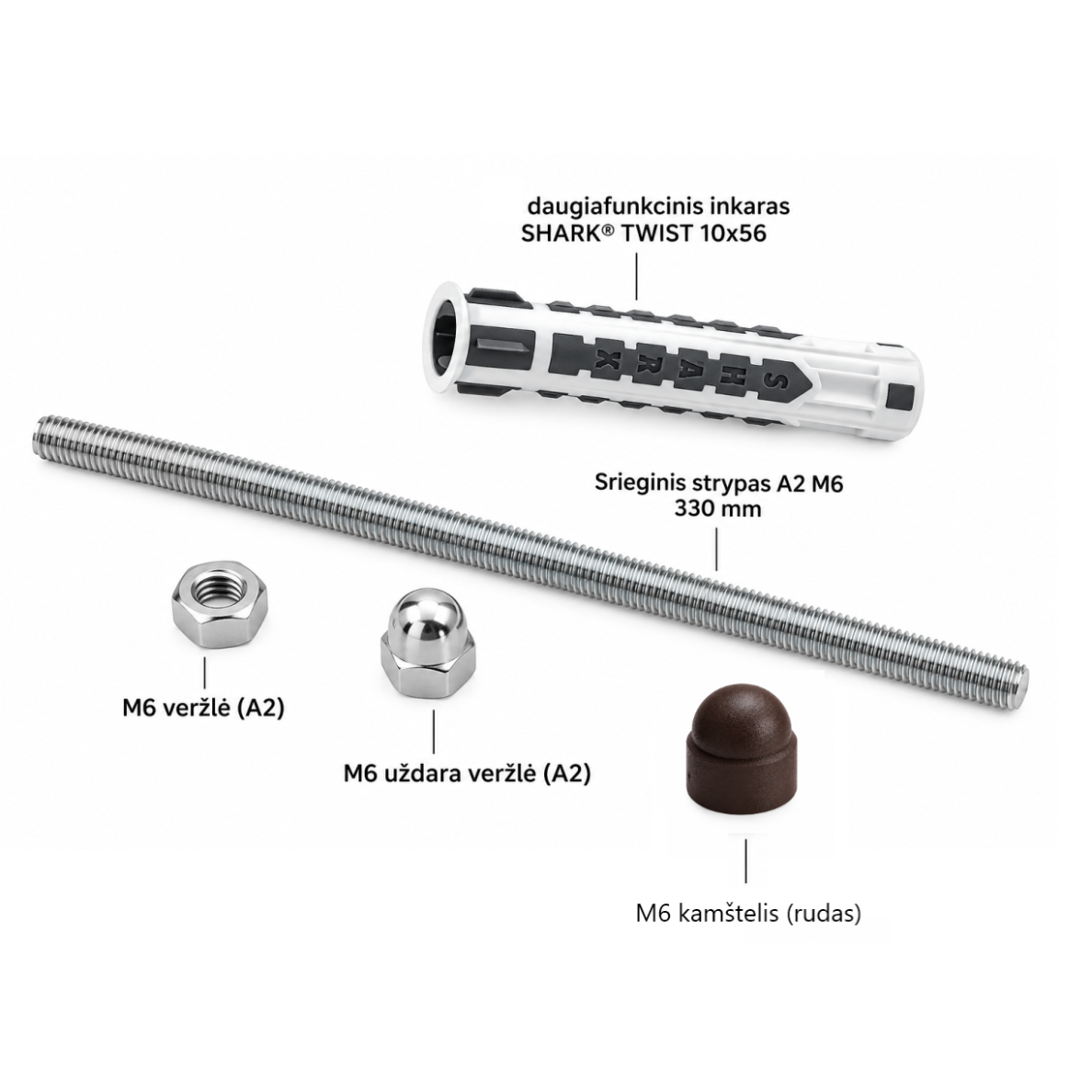

• Set includes: 4 pcs. M6 × 330 mm threaded rods, 4 pcs. SHARK® TWIST 10×56 wall plugs, 4 pcs. M6 nuts, 4 pcs. M6 cap nuts and 4 pcs. brown RAL 8019 M6 nut caps

Applications

• Mounting elements through facade insulation
• Fixing into the load-bearing wall
• Installation of flag holders
• Mounting other elements to insulated facades
• Insulated facades with insulation thicknesses up to 250 mm
• Fixings requiring a brown decorative finish

Key Features

• Four fixing points in one set
• 330 mm long M6 threaded rods
• A2 stainless steel threaded rods and nuts
• SHARK® TWIST 10×56 multi-purpose wall plugs
• Brown RAL 8019 M6 nut caps for a neat finished appearance
• Suitable for insulation thicknesses up to 250 mm
• The threaded rods can be shortened for thinner insulation
• Longer M6 threaded rods can be supplied for thicker insulation
• The standard M6 nuts provide solid support for the mounted element and help prevent compression of the facade finish
• Suitable for outdoor use

Installation

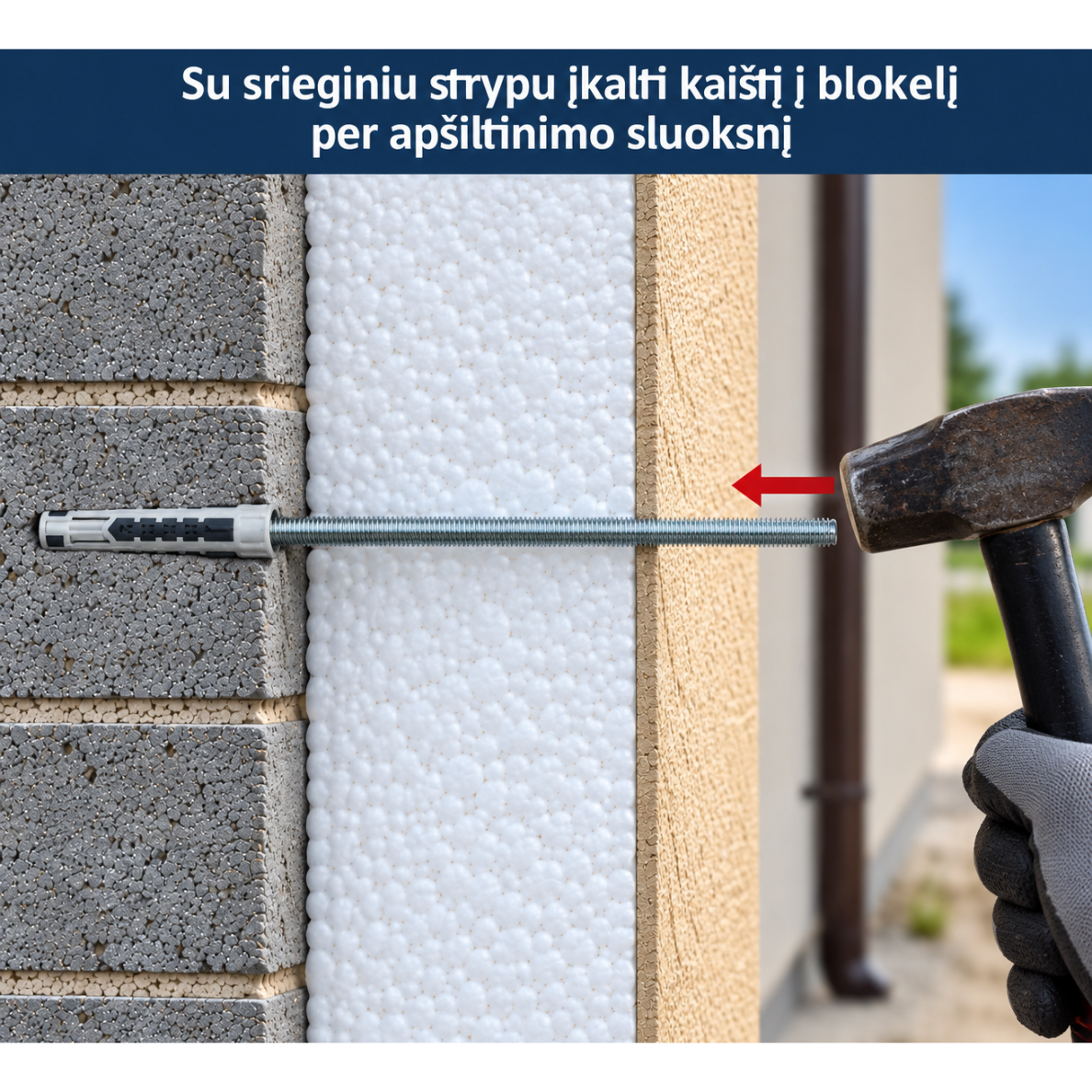

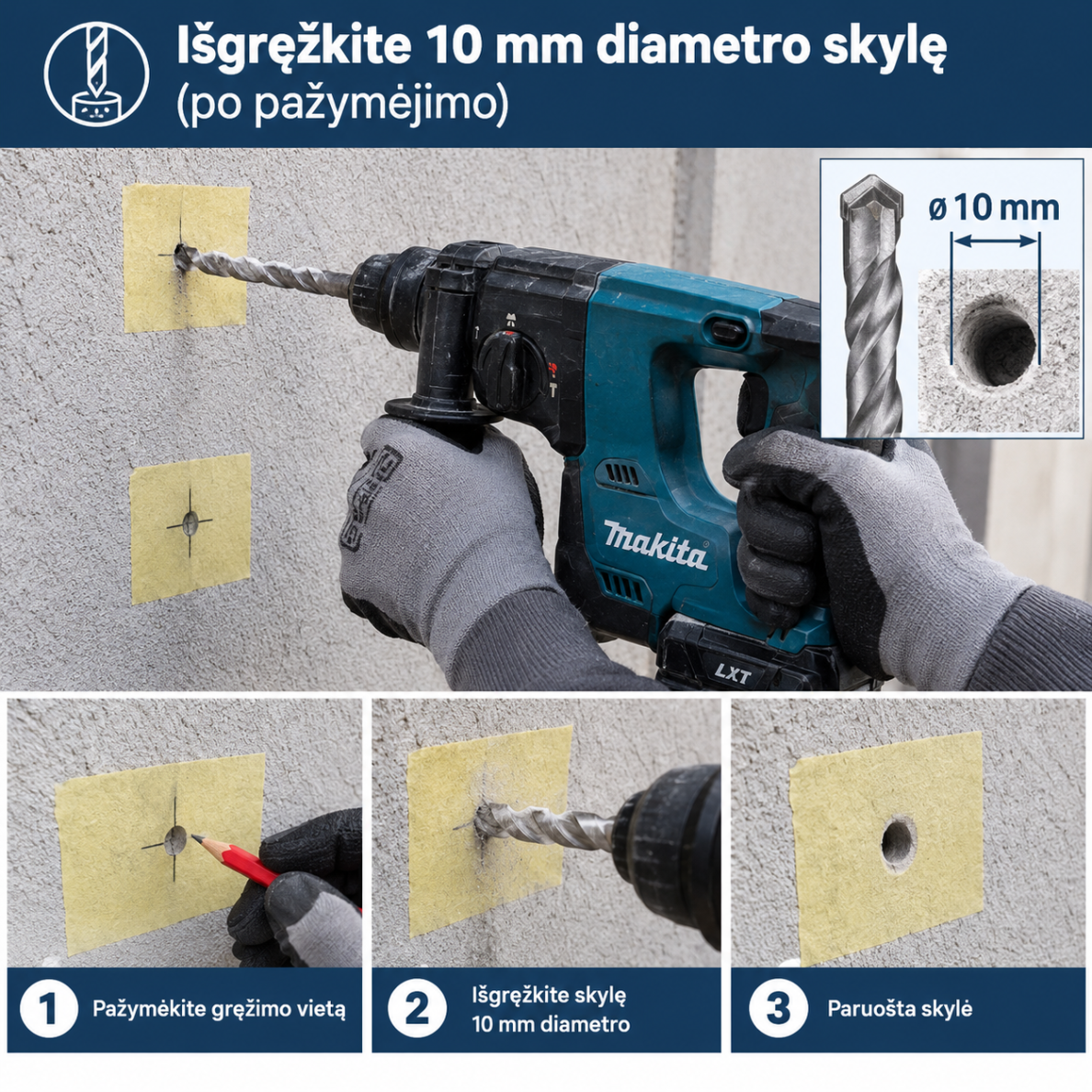

Drill through the facade insulation layer into the load-bearing wall and insert the SHARK® TWIST 10×56 wall plugs. Screw the standard M6 nuts and M6 cap nuts onto the threaded rods. Turn the cap nuts to screw the threaded rods into the wall plugs to the required depth.

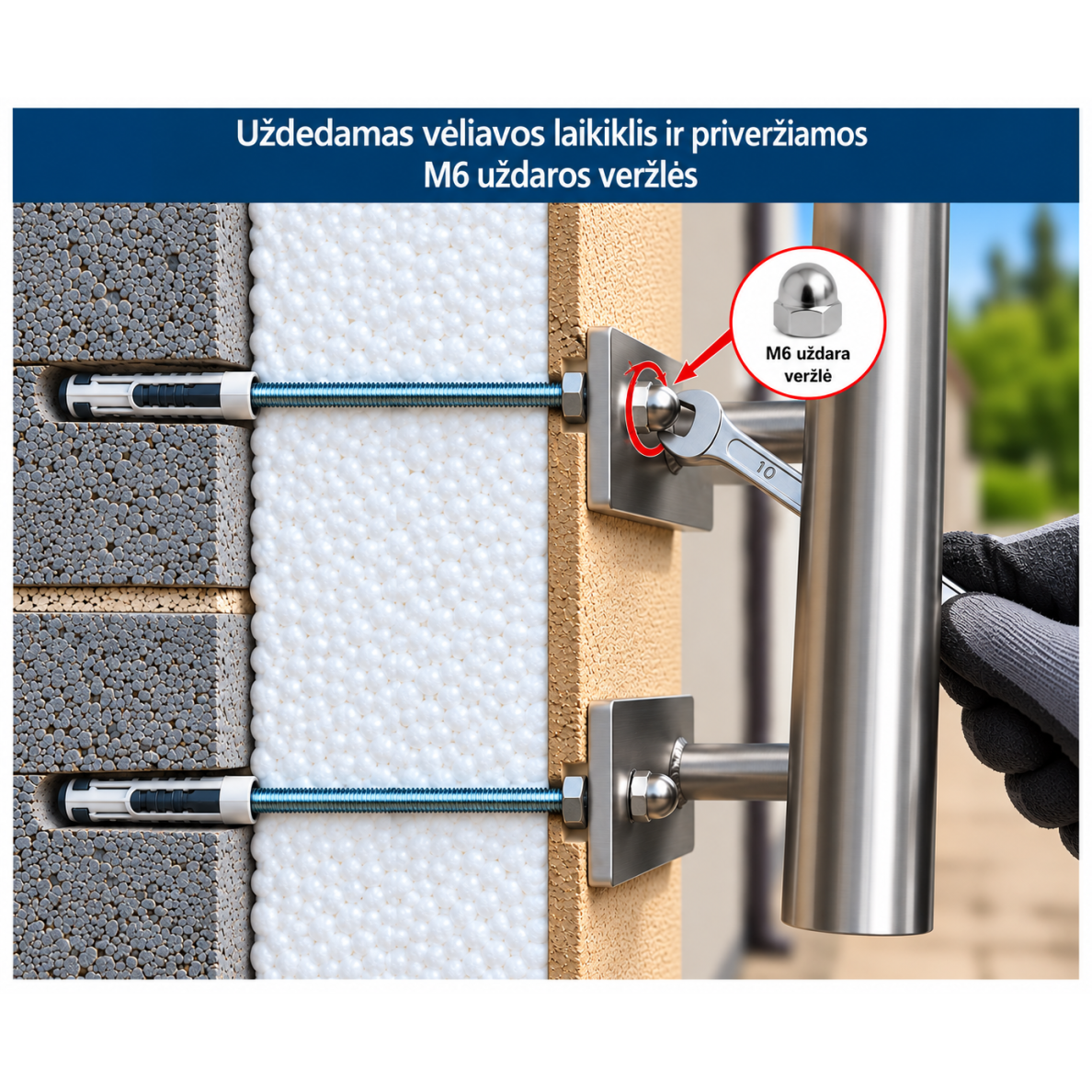

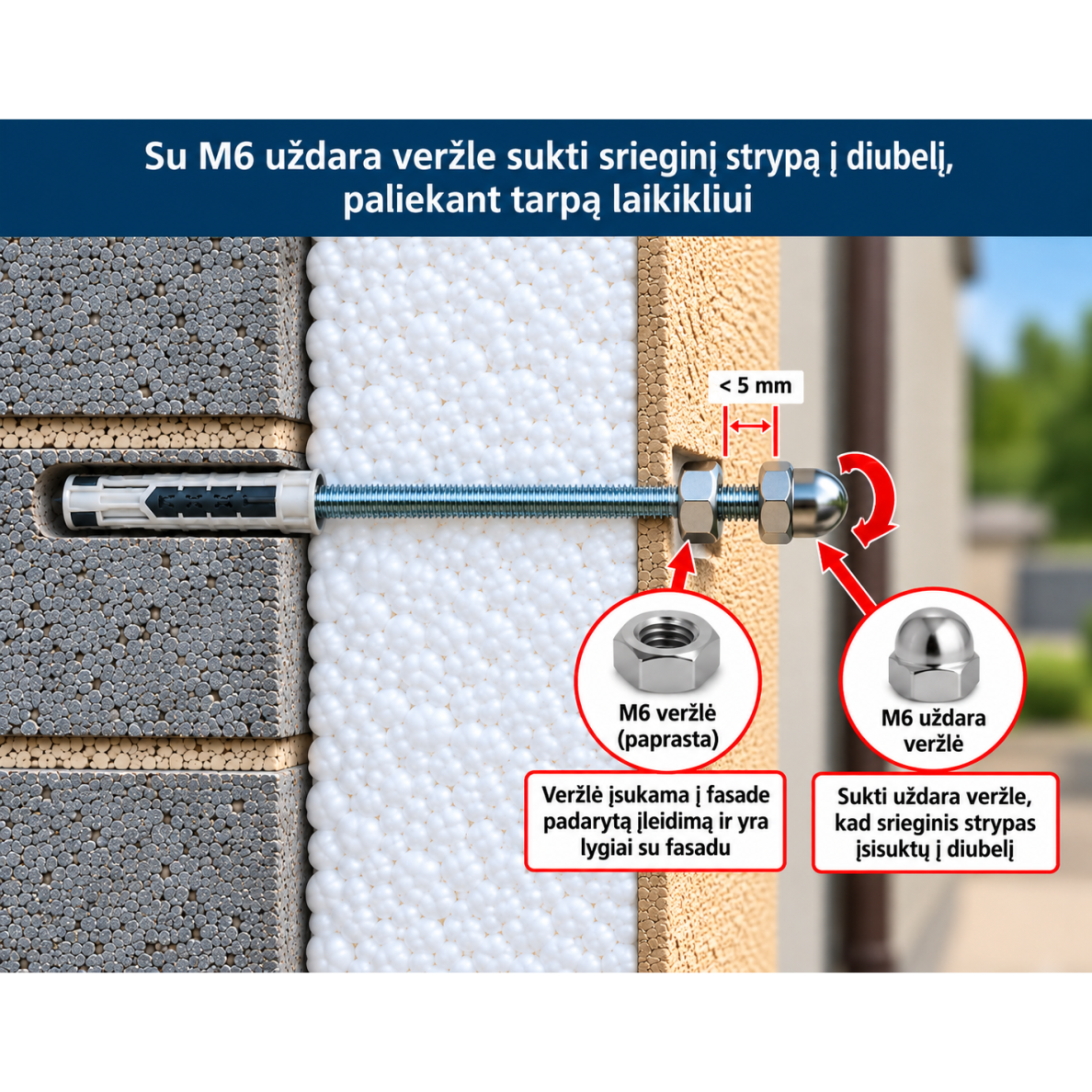

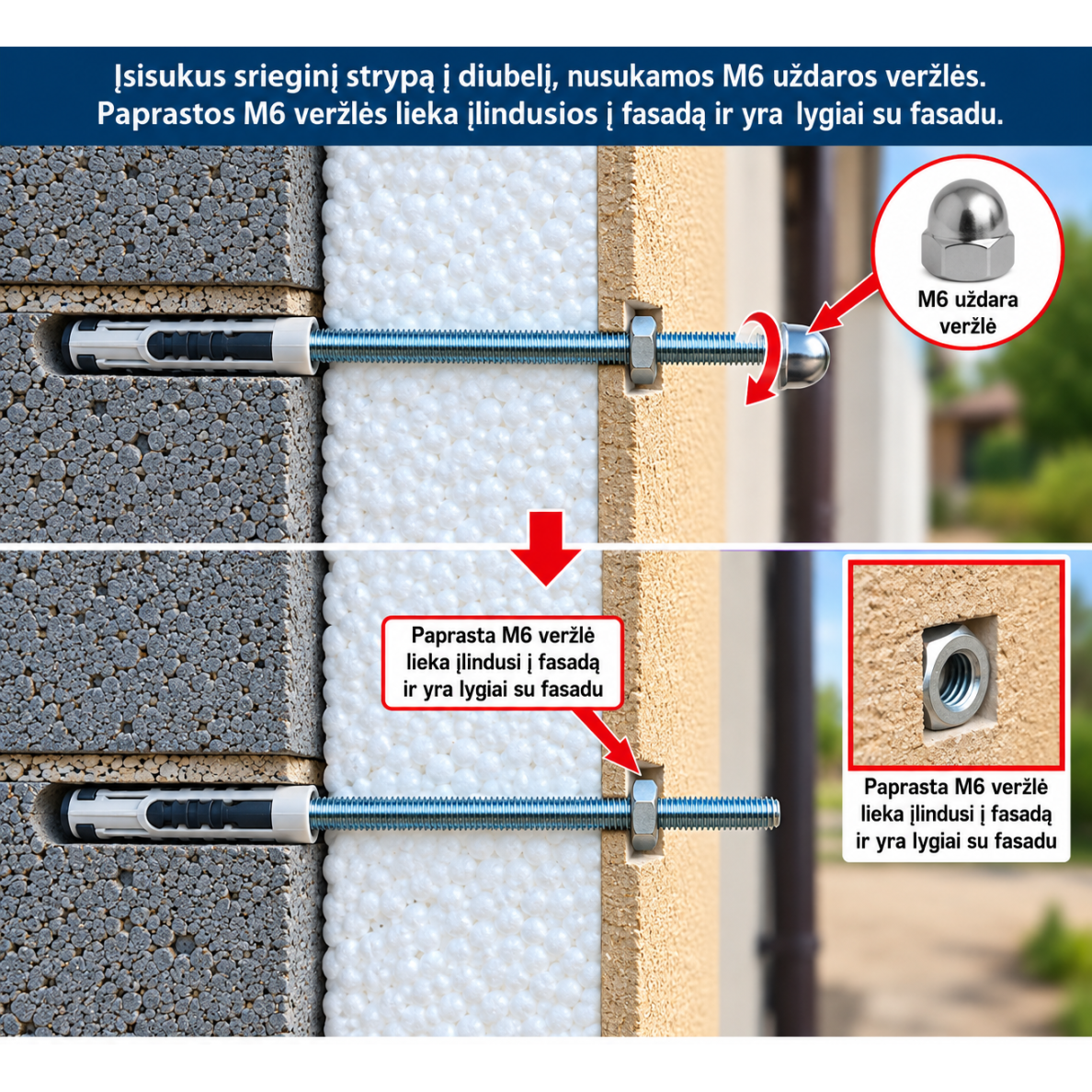

Once the threaded rods are installed, remove the M6 cap nuts and adjust the standard M6 nuts so that they protrude approximately 1 mm beyond the facade surface. Leave approximately 5 mm between the standard M6 nuts and the cap nuts for the element being mounted. Position the element on the threaded rods and secure it by tightening the M6 cap nuts. Finally, fit the brown RAL 8019 nut caps over the cap nuts. For detailed step-by-step instructions with illustrations, see our technical guide How to Fix Through an Insulated Facade?

Related Products

• Fixing Elements
• Fixing Through Insulated Facade
• Flag Holder Mounting

Frequently Asked Questions

How many fixing points are included in this set?
The set is designed for four fixing points. It includes 4 threaded rods, 4 wall plugs, 4 M6 nuts, 4 M6 cap nuts and 4 brown RAL 8019 M6 nut caps.

What are the brown nut caps used for?
The brown RAL 8019 caps are fitted over the M6 cap nuts after installation, providing a neat finished appearance and concealing the metal nuts.

What insulation thickness is this fixing set suitable for?
The standard set with 330 mm threaded rods is suitable for facade insulation thicknesses up to 250 mm.

Can the fixing set be used with insulation thicker than 250 mm?
Yes. On request, we can supply the set with longer M6 threaded rods for thicker insulation layers.

Why should the standard M6 nuts protrude from the facade?
The standard M6 nuts should protrude approximately 1 mm beyond the facade surface so that the mounted element rests against the nuts and does not compress the facade finish when tightened.
