Pipe End Cap D12 PVC

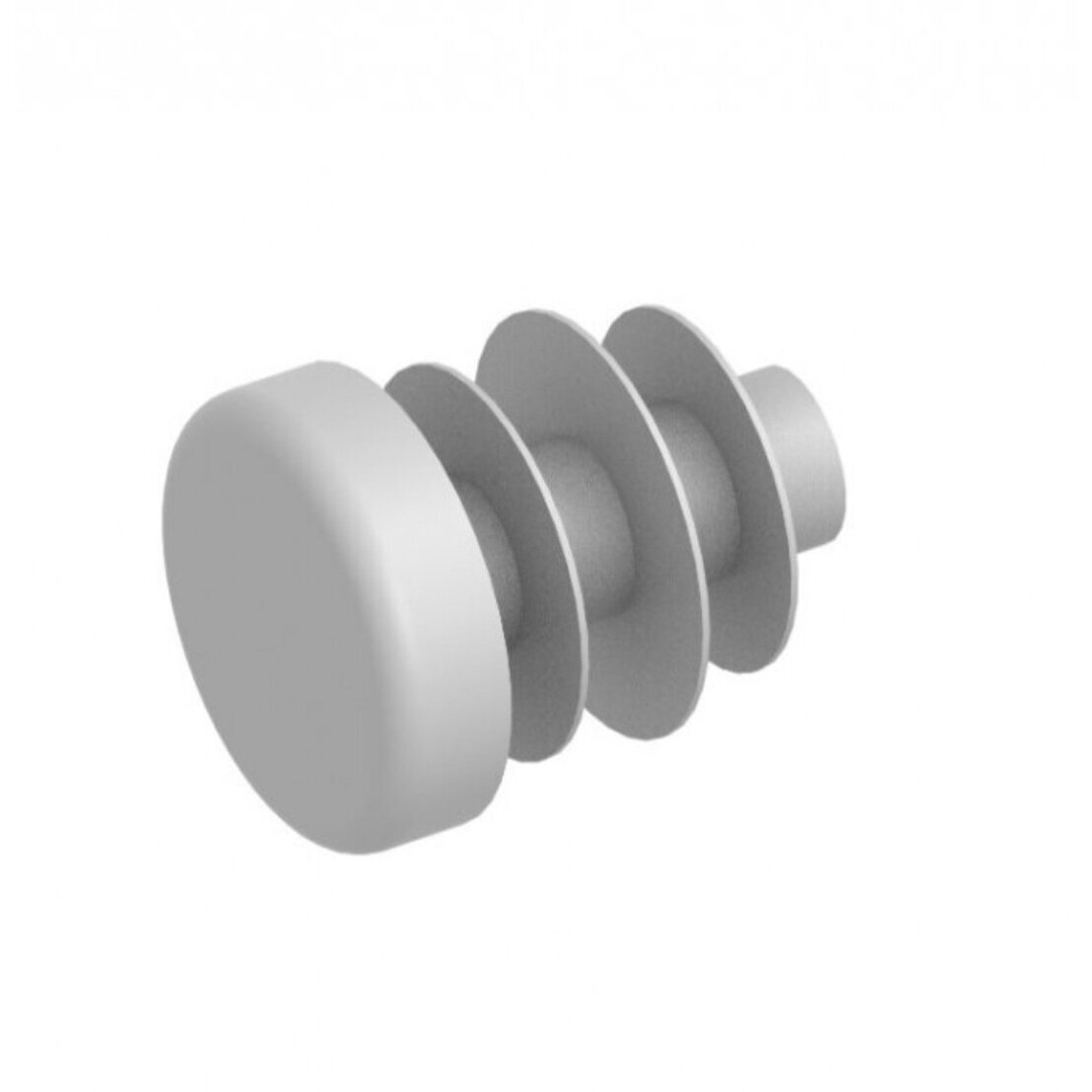

PVC Tube End Cap D12 AKL-1003 – a grey plastic end cap designed to provide a neat finish for Ø12×1.5 mm railing infill tubes. It covers the open tube end, helps protect the interior from dirt, moisture and mechanical damage, and gives the railing system a clean, professional appearance.

The cap is manufactured from PVC plastic and is installed by pressing it into the tube. Its ribbed insert provides a secure fit without additional screws or complicated installation work. It is a practical and economical solution for finishing horizontal infill tubes in indoor and standard outdoor railing systems.

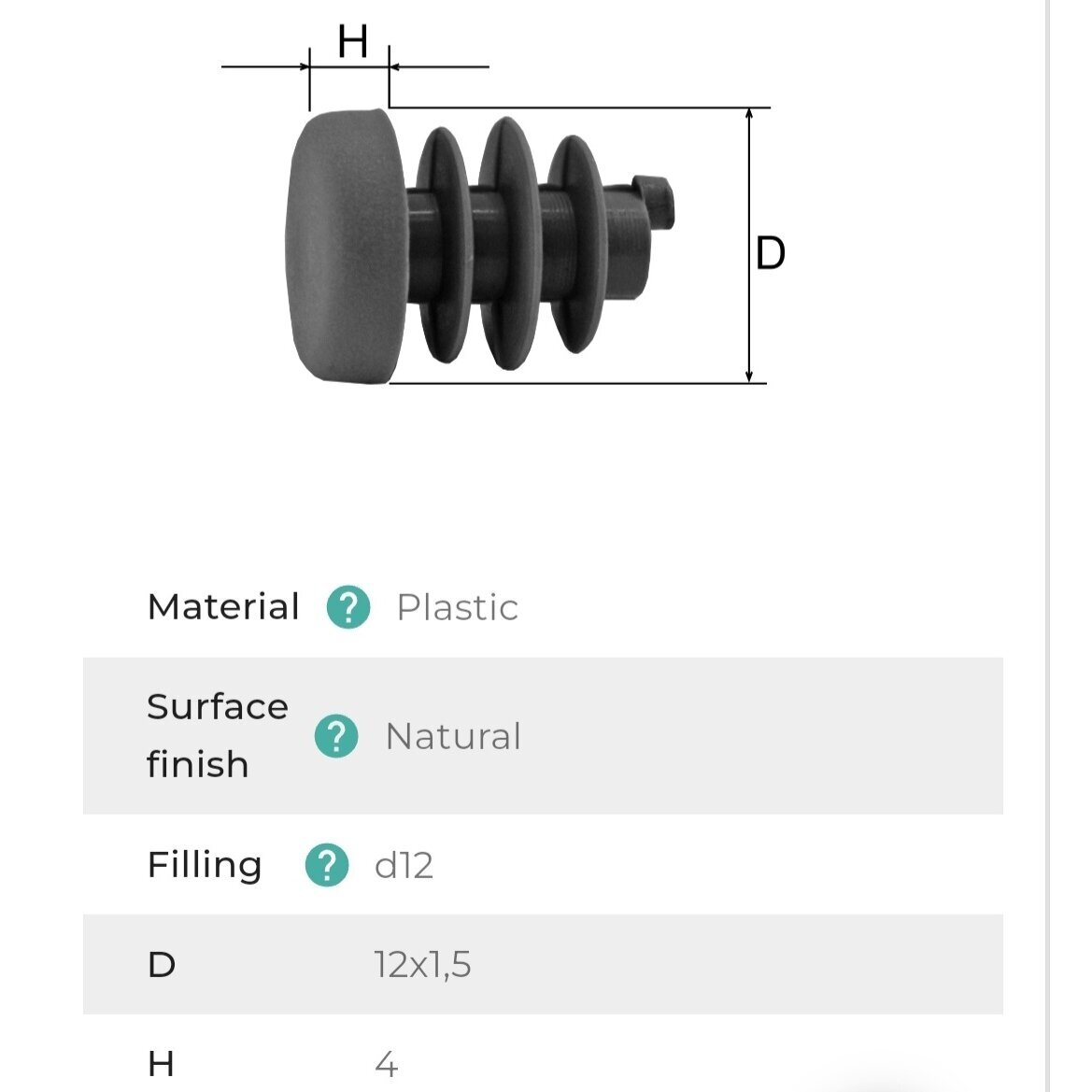

Technical Information:

• Code: AKL-1003
• Suitable for tube: Ø12×1.5 mm
• Material: PVC plastic
• Colour: Grey
• Installation: Push-fit into the tube
• Application: Protective and decorative tube end finishing

Features:

• Designed for Ø12×1.5 mm railing infill tubes.
• Provides a neat finish for an open tube end.
• Helps protect the tube interior from dust, moisture and dirt.
• Covers sharp tube edges.
• Ribbed insert provides a secure fit.
• Quick installation without screws or special tools.
• Grey colour complements satin stainless steel components.

Applications:

This tube end cap is used in stainless steel railing systems to finish the ends of Ø12×1.5 mm horizontal infill tubes. It is suitable for staircases, balconies, terraces, indoor railings, commercial buildings and public railing installations where a safe and visually clean tube end finish is required.

Installation:

Before installation, clean the inside of the tube and remove any sharp edges. Insert the ribbed section of the cap into the Ø12×1.5 mm tube and press it evenly until the front face sits against the tube end. Additional adhesive is normally not required, although a suitable plastic-to-metal adhesive may be used if the fit is loose.

Related products:

For this cap, we recommend other rod and tube end caps, rod elbows and connectors, rod holders and the complete range of rod elements.

Frequently Asked Questions:

Which tube is this end cap designed for?
It is designed for Ø12×1.5 mm horizontal infill tubes.

What material is the cap made from?
It is manufactured from grey PVC plastic.

How is the tube end cap installed?
It is pressed into the inside of the tube. The ribbed insert helps keep the cap securely in place.

Is adhesive required for installation?
Usually not. The cap is designed for push-fit installation, although suitable adhesive may be used if the connection is loose.

What is the main purpose of this cap?
It provides a neat tube end finish, helps protect the interior from dirt and reduces the risk of contact with sharp edges.

Can it be used on outdoor railings?
Yes, it can be used in standard outdoor conditions. Long-term durability depends on environmental exposure and the intensity of direct ultraviolet radiation.
