Rod holder D48.3

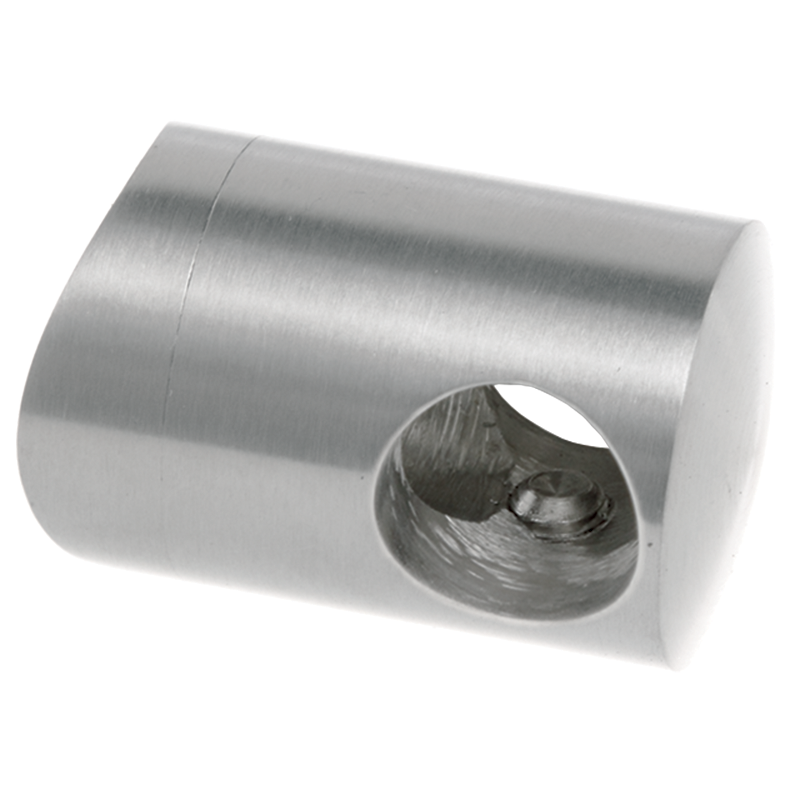

Rod Holder for Ø48.3 mm Post 0830048 – a stainless steel holder designed for fixing a Ø12 mm horizontal infill rod to a Ø48.3 mm round railing post. It provides a secure, stable and professional connection in stainless steel railing systems.

Manufactured from AISI 304 stainless steel with a satin finish, this rod holder offers excellent corrosion resistance, durability and an elegant appearance. It is suitable for both new installations and renovation of indoor and standard outdoor railing systems.

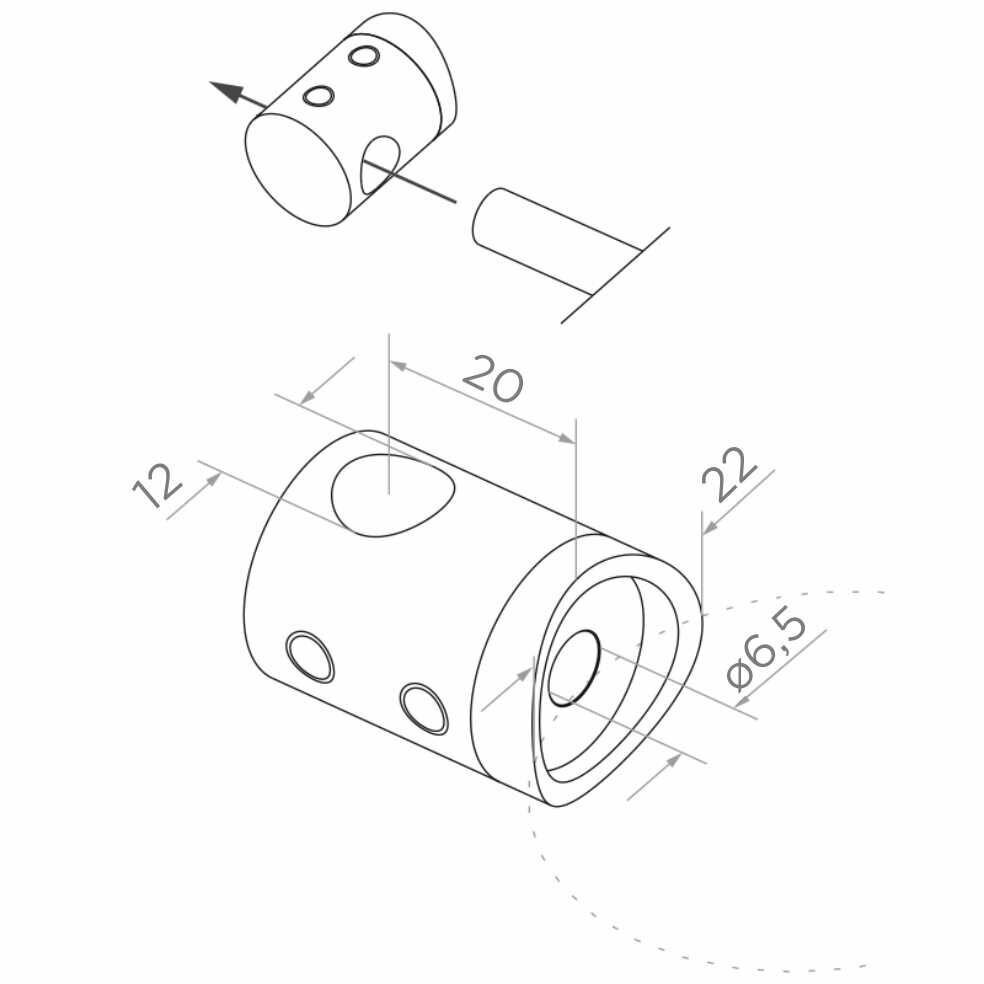

Technical Information:

• Code: 0830048
• Suitable for post: Ø48.3 mm
• Suitable for rod: Ø12 mm
• Material: AISI 304 stainless steel
• Finish: Satin
• Application: Horizontal infill rod holder

Features:

• Designed for Ø12 mm stainless steel rods.
• Suitable for Ø48.3 mm round railing posts.
• Durable AISI 304 stainless steel construction.
• Elegant satin finish.
• Quick and reliable installation.
• Provides secure rod fixing.
• Suitable for indoor and standard outdoor railing systems.

Applications:

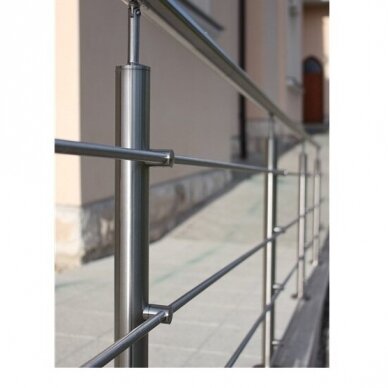

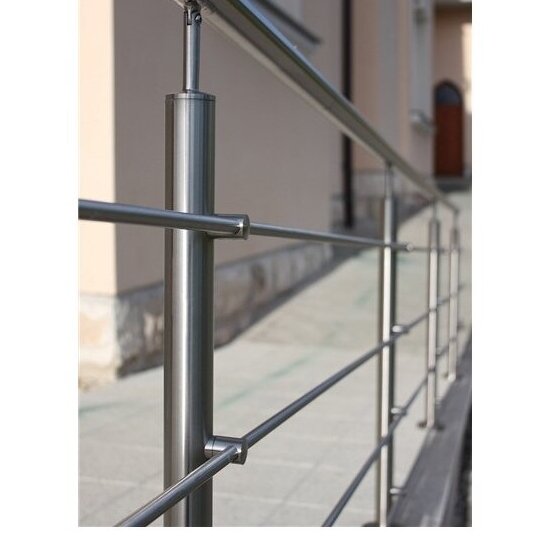

This rod holder is used in stainless steel railing systems for fixing Ø12 mm horizontal infill rods to Ø48.3 mm round railing posts. It is suitable for balconies, staircases, terraces and other architectural railing applications.

Installation:

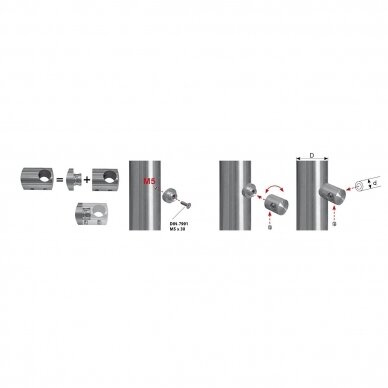

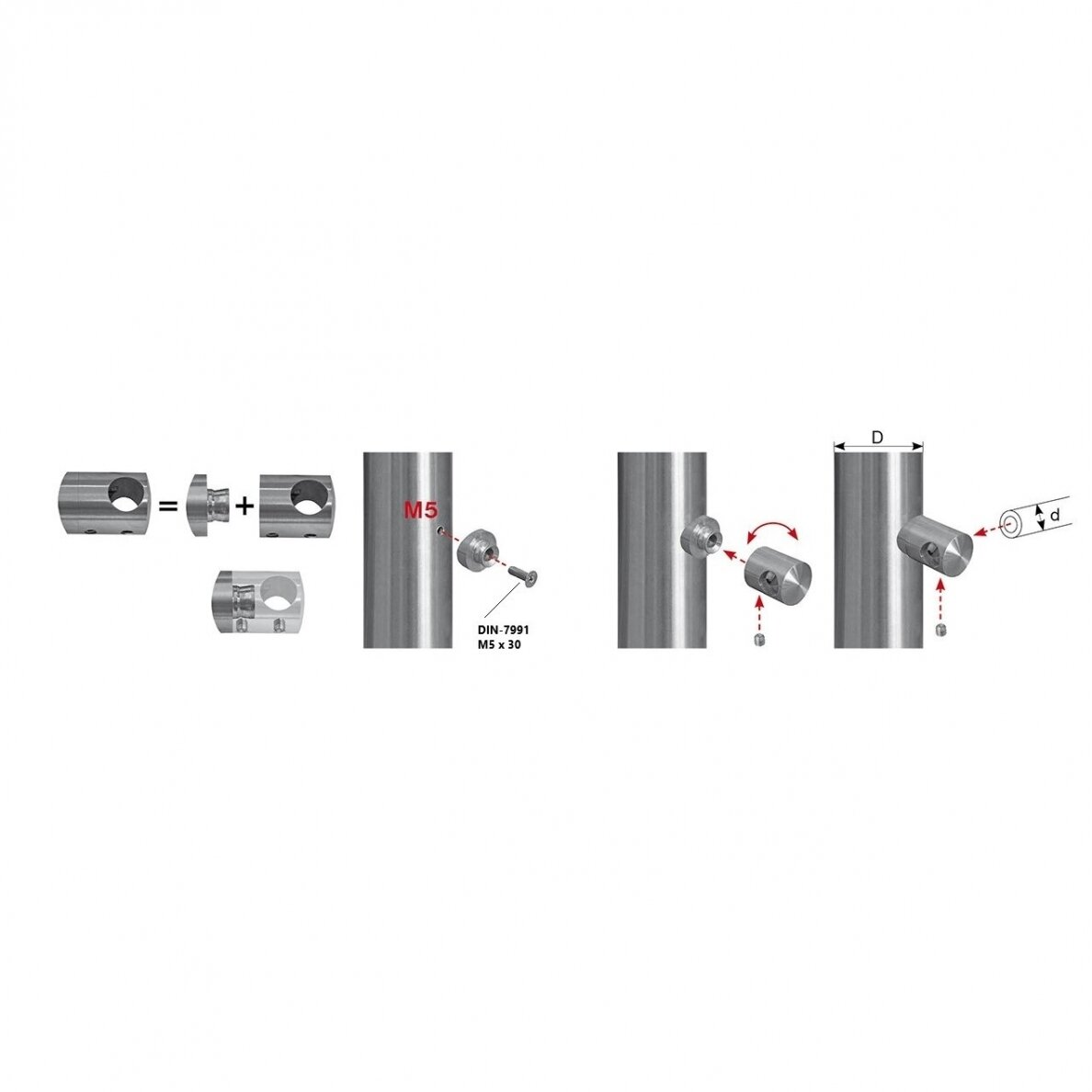

The holder is fitted onto the Ø48.3 mm post, while the Ø12 mm rod is inserted into the holder and secured using the integrated fixing screw. Proper installation ensures a durable and stable connection.

Related products:

For this holder we recommend other rod holders, rod elbows and connectors, rod end caps and the complete range of stainless steel rod elements.

Frequently Asked Questions:

Which rod diameter is this holder designed for?
It is designed for Ø12 mm stainless steel infill rods.

Which post diameter is it compatible with?
It is designed for Ø48.3 mm round stainless steel railing posts.

What material is it made from?
It is manufactured from AISI 304 stainless steel with a satin finish.

Is it suitable for outdoor use?
Yes. AISI 304 stainless steel is suitable for most standard outdoor environments. For coastal or highly corrosive conditions, AISI 316 products are recommended.

How is the rod secured?
The rod is inserted into the holder and secured using the integrated fixing screw.
