Flange D33.7

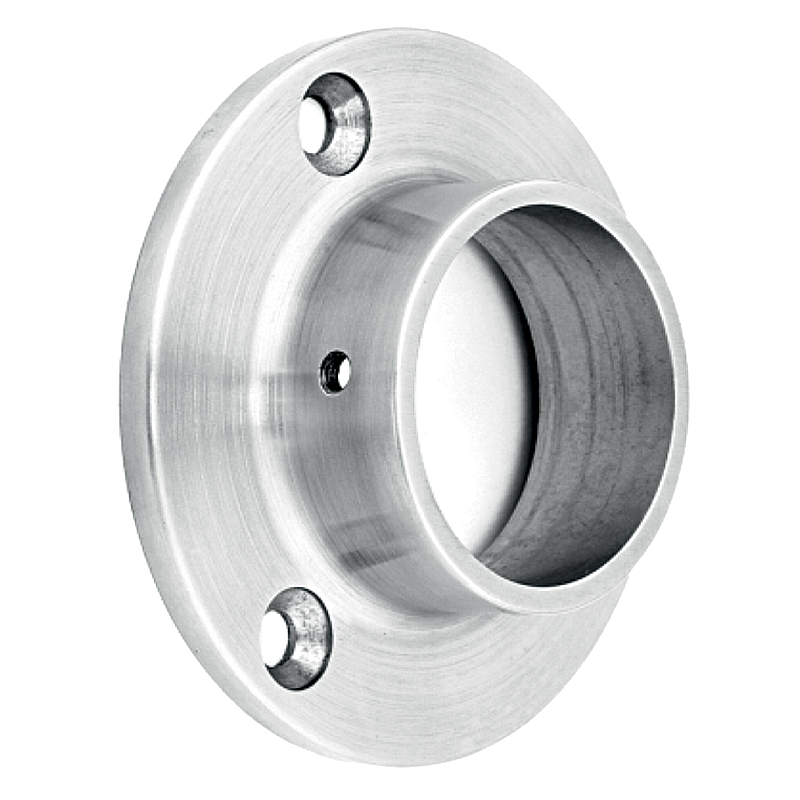

Wall Flange for Ø33.7 mm Tube 0505033 is a stainless steel mounting component designed to secure an Ø33.7 mm railing tube or handrail to a wall or another flat surface. Its round shape and three mounting holes provide a stable and visually neat fixing point for railing systems.

Made from AISI 304 stainless steel, the flange features a satin finish suitable for professional railing installations. The tube is secured inside the flange with a side locking screw, making the component suitable for both new and renovated railing systems.

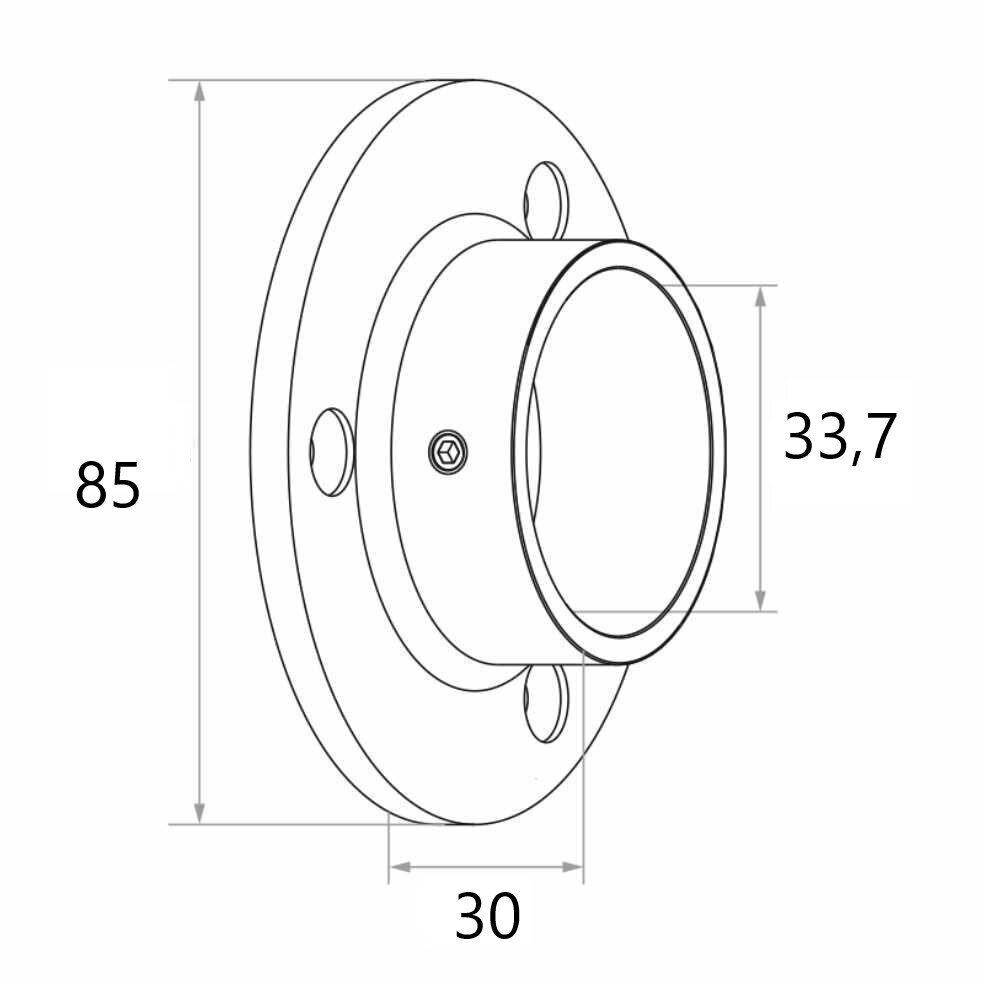

Technical Information:

• Product code: 0505033
• Product type: wall-mounted flange
• Suitable tube diameter: Ø33.7 mm
• Material: AISI 304 stainless steel
• Finish: satin
• Shape: round
• Base mounting: three screws
• Tube retention: side locking screw

Features:

• Three mounting holes help secure the flange firmly to a flat surface.
• The side locking screw holds the Ø33.7 mm tube securely in position.
• AISI 304 stainless steel offers corrosion resistance and durability.
• The satin finish provides a clean, professional appearance.
• The round design complements railing systems made with round tubes and handrails.

Applications:

• Fixing Ø33.7 mm railing tubes and handrails to walls.
• Installing railing structures on other flat surfaces.
• New-build and renovation railing projects.

Installation:

Secure the flange to the wall or another flat surface using three screws. Select suitable fasteners according to the base material and the requirements of the railing system.

Insert the Ø33.7 mm tube into the flange and secure it with the side locking screw. Check the position of the tube before fully tightening the fixings.

• Tubes and Handrails

Frequently Asked Questions:

What tube diameter is this flange designed for?
The flange is designed for an Ø33.7 mm tube or handrail.

What material is the flange made from?
It is made from AISI 304 stainless steel.

What finish does the flange have?
The flange has a satin finish.

How is the flange attached to the base?
It is secured to a wall or another flat surface using three screws.

How is the tube secured inside the flange?
The tube is held in place with a side locking screw.
