Weld-on Hinge (110 mm)

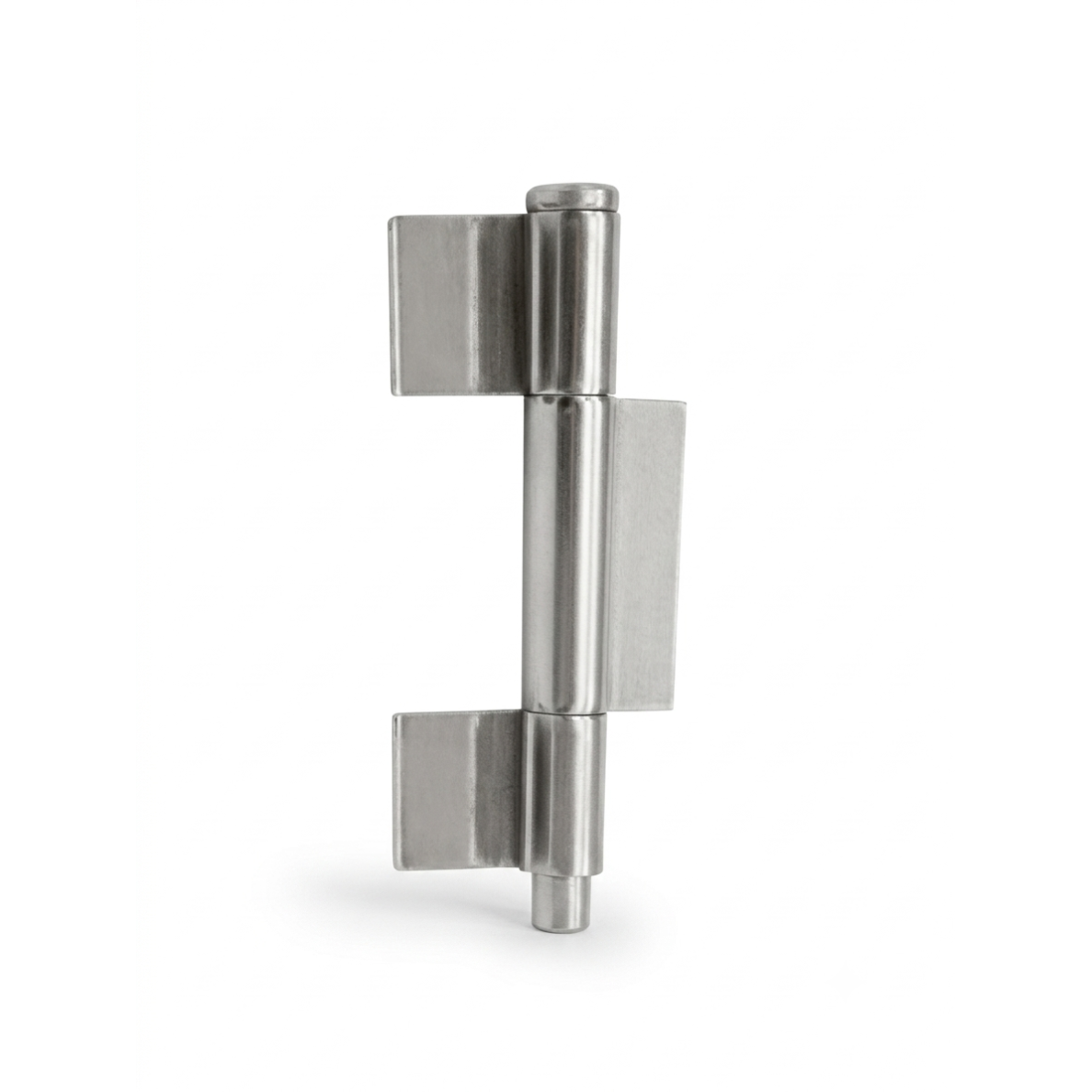

Weld-On Hinge LAN-1624 is a durable 110 mm hinge designed for metal gates, doors and other welded structures.

The hinge is manufactured from AISI 304 stainless steel and has a matte finish. Its weld-on construction provides secure fixing, while the maximum load capacity of 80 kg makes it suitable for frequently used structures.

Technical Information:

• Product code: LAN-1624
• Type: weld-on hinge
• Dimensions: 15 × 110 mm
• Installation: weld-on
• Material: AISI 304 stainless steel
• Finish: matte
• Maximum hinge load: 50 kg

Features:

• Strong and durable construction
• AISI 304 stainless steel provides corrosion resistance
• Designed for weld-on installation
• Suitable for indoor and outdoor use
• Matte finish provides a clean appearance

Applications:

• Gates
• Metal doors
• Other welded metal structures

Installation:

The hinge is installed by welding it to the metal structure. Before installation, accurately position the hinge and ensure that the structure is suitable for the intended load.

Frequently Asked Questions:

What are the hinge dimensions?
The hinge dimensions are 15 × 110 mm.

What is the maximum hinge load?
The maximum hinge load is 50 kg.

What material is the hinge made from?
The hinge is manufactured from AISI 304 stainless steel.

How is the hinge installed?
The hinge is installed by welding.

What finish does the hinge have?
The hinge has a matte finish.
