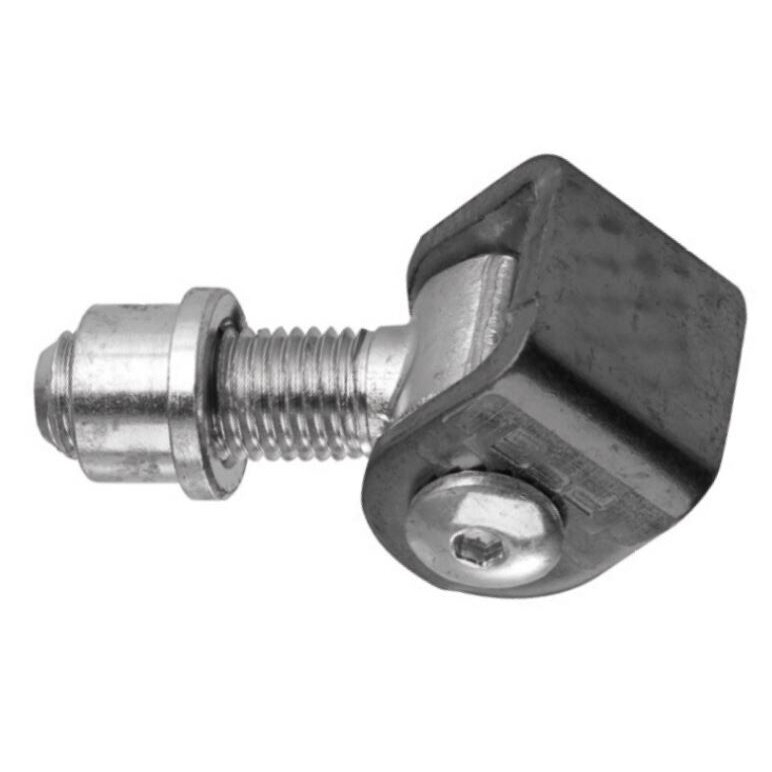

Adjustable Zinc-Plated M16 Gate Hinge

Adjustable Zinc-Plated M16 Gate Hinge, 78 mm Length (Weld-On) is a strong adjustable hinge designed for swing gates. The M16 adjustment thread allows precise correction of the gate position after installation, helping to compensate for gate sagging and maintain proper alignment.

The hinge is manufactured from steel and zinc plated to provide protection against corrosion, rain, moisture and temperature changes. The black hinge loop is designed to be welded directly to the metal gate structure, providing a strong and reliable connection.

With a length of 78 mm and an M16 thread, this hinge provides a compact and practical solution for metal gates. Adjustment nuts allow the gate position to be corrected, while the robust construction supports a maximum load of up to 65 kg per pair when two hinges are used on a 2 m high gate leaf.

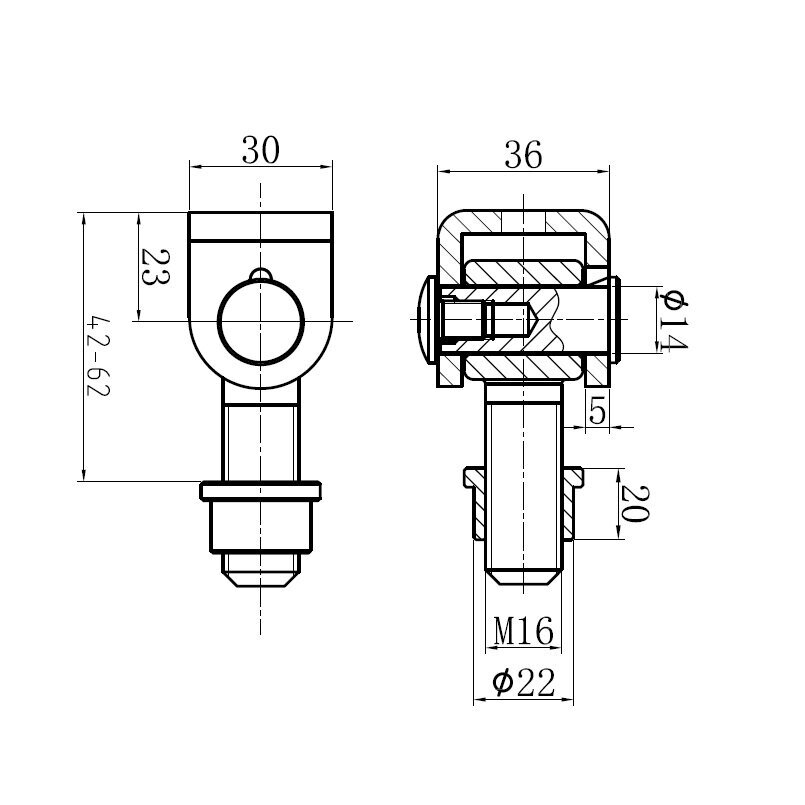

Technical Information:

• Code: 61.001
• Thread: M16
• Length: 78 mm
• Bolt length: 40 mm
• Width: 36 mm
• Material: Steel
• Finish: Zinc plated
• Mounting: Weld-on
• Maximum load per pair: 65 kg (2 m gate leaf)

Applications:

• Swing gates
• Metal gates
• Welded gate structures
• Adjustable gate mounting
• Outdoor gate installations

Features:

• M16 adjustment thread
• Gate position can be adjusted after installation
• Helps compensate for gate sagging
• Weld-on black hinge loop
• Strong steel construction
• Zinc-plated surface
• Protection against corrosion and moisture
• Suitable for outdoor use

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is the adjustable M16 gate hinge used for?
This hinge is designed for swing metal gates and allows the gate position to be adjusted after installation.

How is this gate hinge installed?
The black hinge loop is welded directly to the metal gate structure to provide a strong and secure connection.

Can the gate position be adjusted after installation?
Yes. The M16 thread and adjustment nuts allow the gate position to be corrected and help compensate for gate sagging.

What is the maximum load capacity?
When two hinges are used on a 2 m high gate leaf, the maximum load capacity is approximately 65 kg per pair.

Is the hinge suitable for outdoor use?
Yes. The zinc-plated surface protects the steel against corrosion, moisture and environmental exposure.
