Adjustable Zinc-Plated M16 Gate Hinge

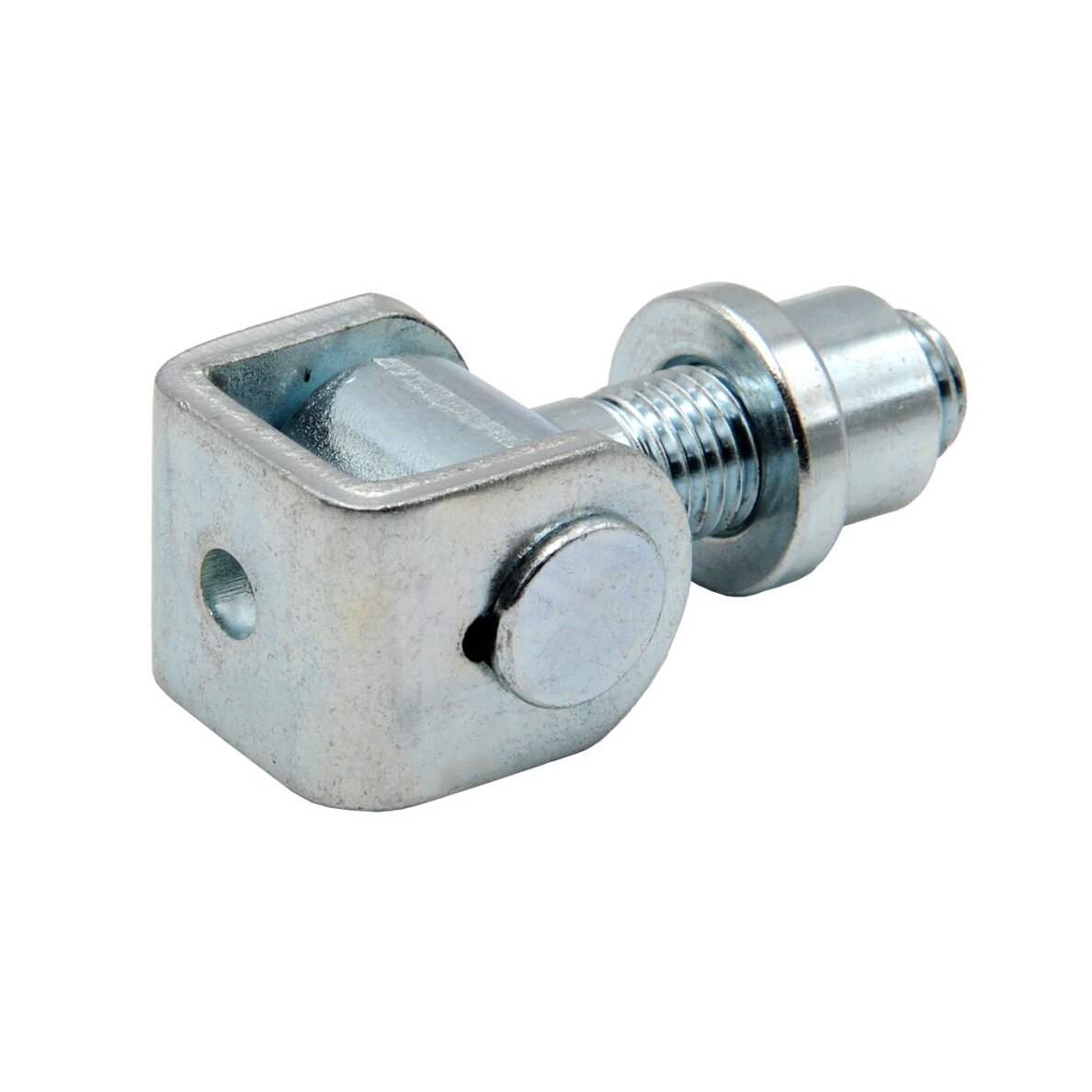

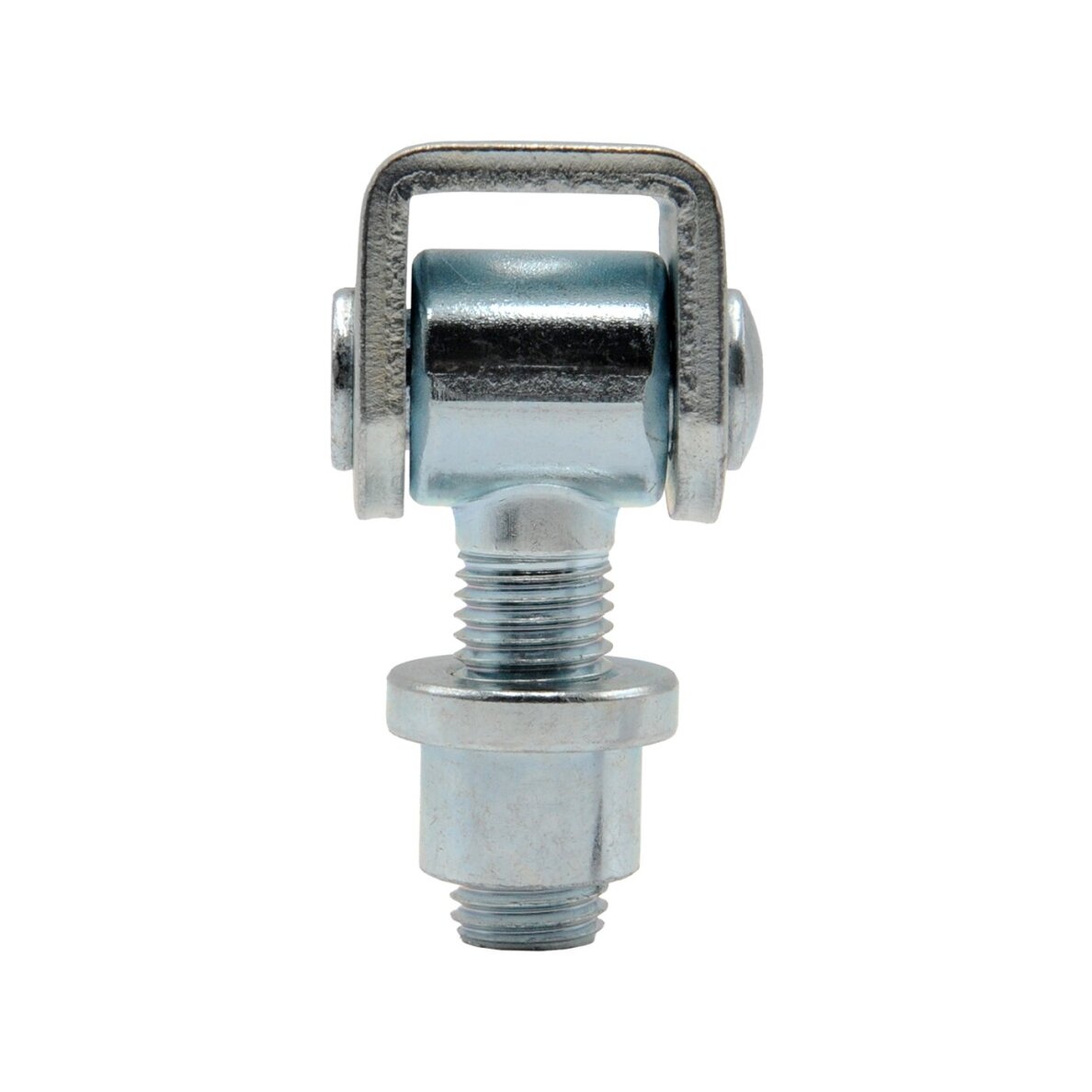

Adjustable Zinc-Plated M16 Gate Hinge, 78 mm Length is a strong adjustable hinge designed for swing gates and doors. The M16 threaded adjustment allows precise positioning after installation, making it easy to compensate for gate sagging or other alignment changes.

The hinge is manufactured from steel and fully zinc plated. The zinc coating protects the surface against corrosion, moisture, temperature changes and rust, making the hinge suitable for outdoor applications.

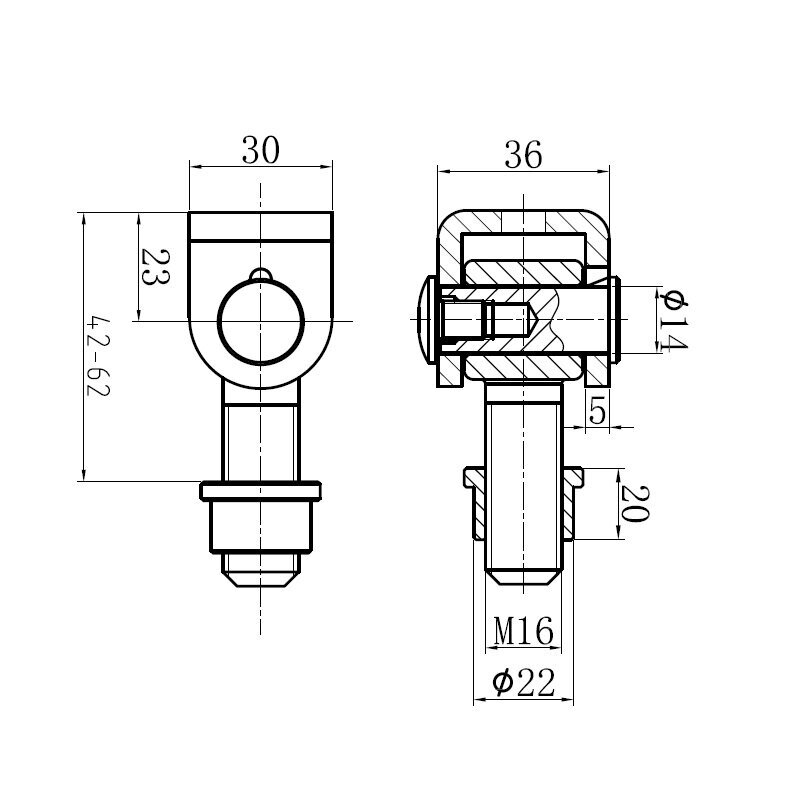

The 78 mm long and 36 mm wide construction is compact yet strong. The adjustment nut allows the gate position to be corrected, while the robust hinge construction is suitable for intensive use and supports a maximum load of up to 65 kg per pair when two hinges are used on a 2 m high gate leaf.

Technical Information:

• Code: 61.001.01
• Thread diameter: M16
• Length: 78 mm
• Bolt length: 40 mm
• Width: 36 mm
• Material: Steel
• Finish: Zinc plated
• Maximum load per pair: 65 kg (2 m gate leaf)

Applications:

• Swing gates
• Metal gates
• Doors
• Adjustable gate mounting
• Outdoor structures

Features:

• M16 adjustment thread
• Position can be adjusted after installation
• Helps compensate for gate sagging
• Strong steel construction
• Fully zinc-plated surface
• Protection against corrosion and moisture
• Compact 36 mm wide construction
• Suitable for outdoor use

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is the adjustable M16 hinge used for?
This hinge is designed for swing gates and doors that require strong and adjustable mounting.

Can the gate position be adjusted after installation?
Yes. The M16 thread and adjustment nut allow the gate position to be corrected and help compensate for gate sagging.

What is the maximum load capacity?
When two hinges are used on a 2 m high gate leaf, the maximum load capacity is up to 65 kg per pair.

Is the hinge suitable for outdoor use?
Yes. The fully zinc-plated surface protects the steel against corrosion, moisture and environmental exposure.
