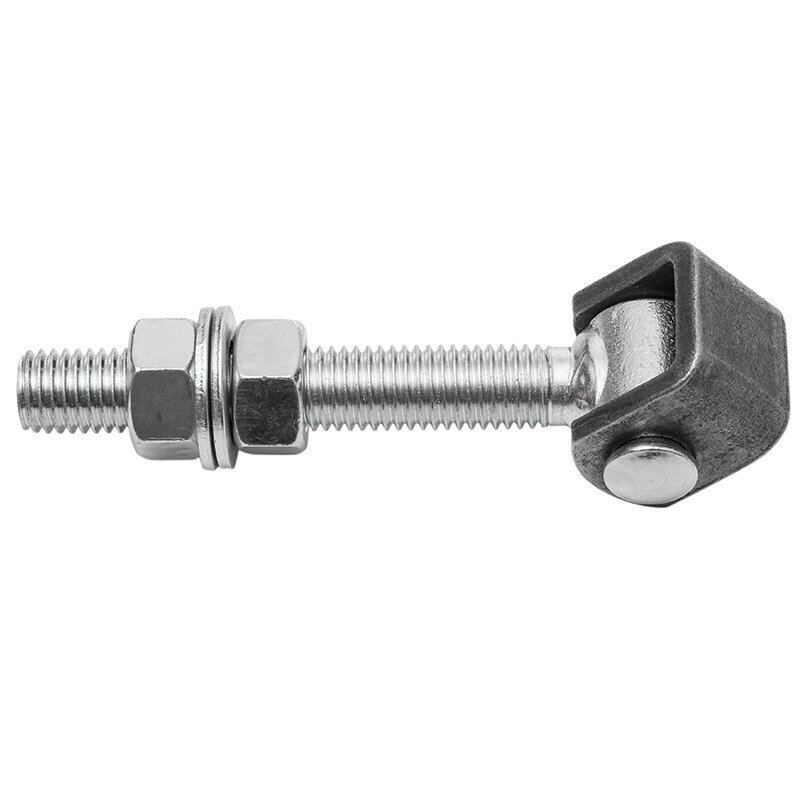

Adjustable Steel M16 Gate Hinge

Adjustable Steel M16 Gate Hinge, 180 mm Length is a long adjustable hinge with an M16 thread, designed for outdoor gates, doors and other metal structures. The adjustment mechanism allows precise gate positioning during installation and makes it possible to correct the position later when required.

The hinge is manufactured from strong steel and protected with a zinc coating that helps protect the product against corrosion, rust, moisture and environmental exposure. The black lug gives the hinge a distinctive appearance, while its robust construction is designed for long-term use.

The 180 mm overall length and 130 mm bolt length provide a wide adjustment range. It is a practical solution for gates that require reliable mounting and the ability to correct their position after installation.

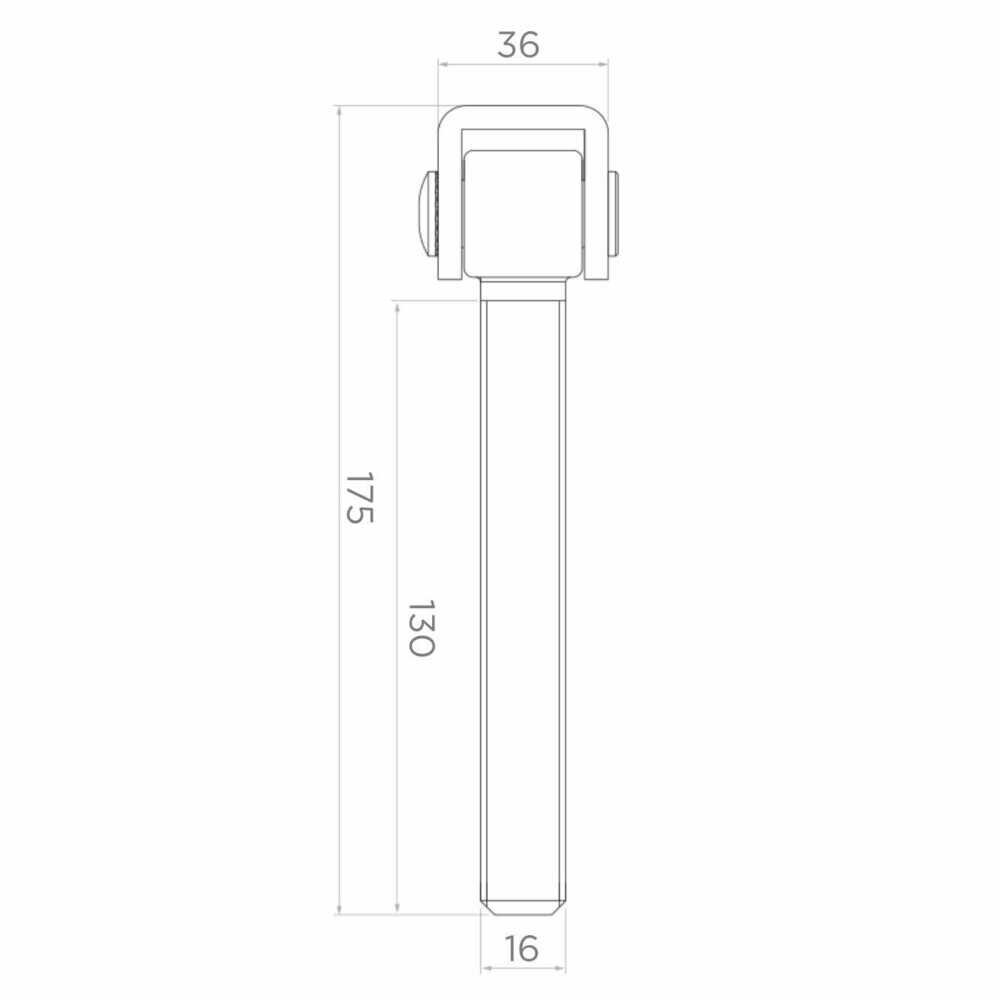

Technical Information:

• Code: 61.003.16
• Thread: M16
• Overall length: 180 mm
• Bolt length: 130 mm
• Lug width: 36 mm
• Material: Steel
• Surface protection: Zinc-plated
• Lug: Black
• Type: Adjustable gate hinge

Applications:

• Swing gates
• Outdoor gates
• Metal gates
• Doors
• Adjustable gate mounting
• Metal structures

Features:

• M16 adjustment thread
• 180 mm overall length
• 130 mm adjustment bolt
• Gate position can be adjusted after installation
• Helps compensate for gate sagging
• Strong steel construction
• Zinc-plated surface for corrosion protection
• Resistant to moisture and environmental exposure
• Suitable for long-term outdoor use

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is the adjustable M16 hinge used for?
This hinge is designed for outdoor and swing gates, doors and other metal structures that require strong and adjustable mounting.

Can the gate position be adjusted after installation?
Yes. The M16 thread and long adjustment bolt allow the gate or door position to be corrected even after installation.

What is the overall length of the hinge?
The overall hinge length is 180 mm, while the adjustment bolt is 130 mm long.

Is the hinge suitable for outdoor use?
Yes. The zinc-plated steel surface helps protect the hinge against corrosion, rust, moisture and other environmental conditions.
