Adjustable Steel M16 Gate Hinge with Circlip

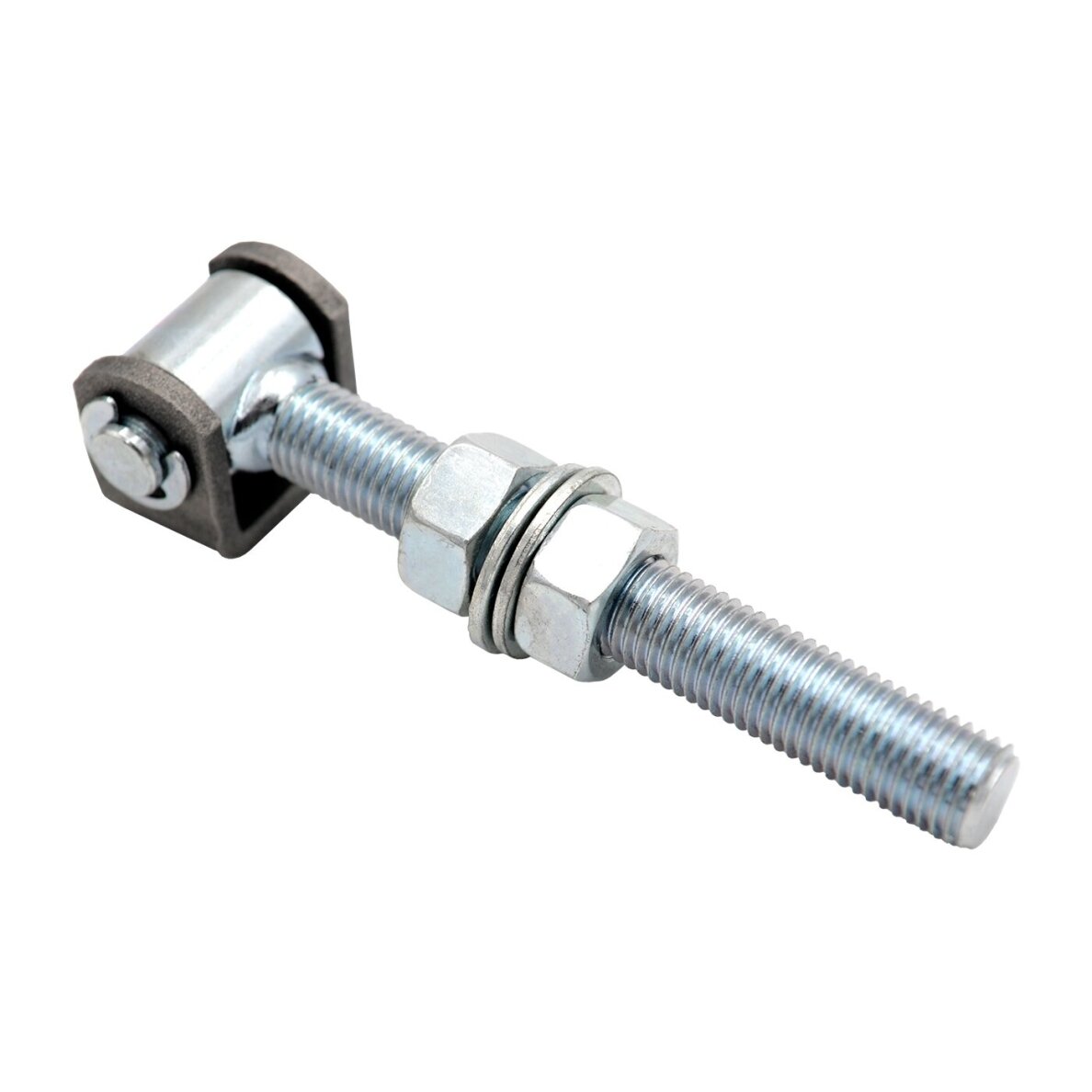

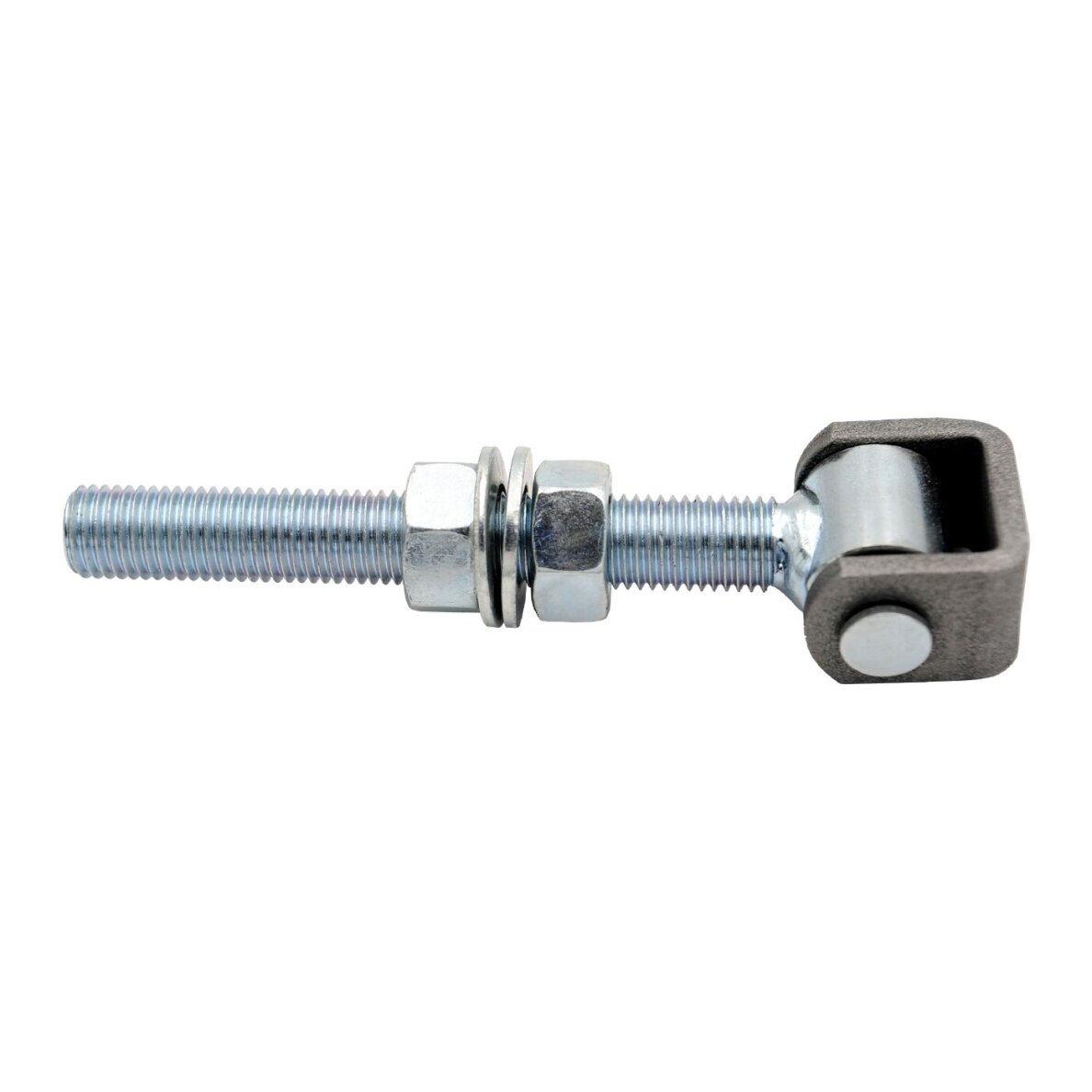

Adjustable Steel M16 Gate Hinge with Circlip, 150 mm Length is a long adjustable hinge with an M16 thread, designed for outdoor gates, doors and other metal structures. The adjustment mechanism allows precise gate positioning during installation and makes it possible to correct the position after installation.

The hinge is manufactured from strong steel and protected with a zinc coating that helps prevent corrosion, rust and moisture damage. The black lug gives the product a distinctive appearance, while the robust construction ensures reliable performance in outdoor conditions.

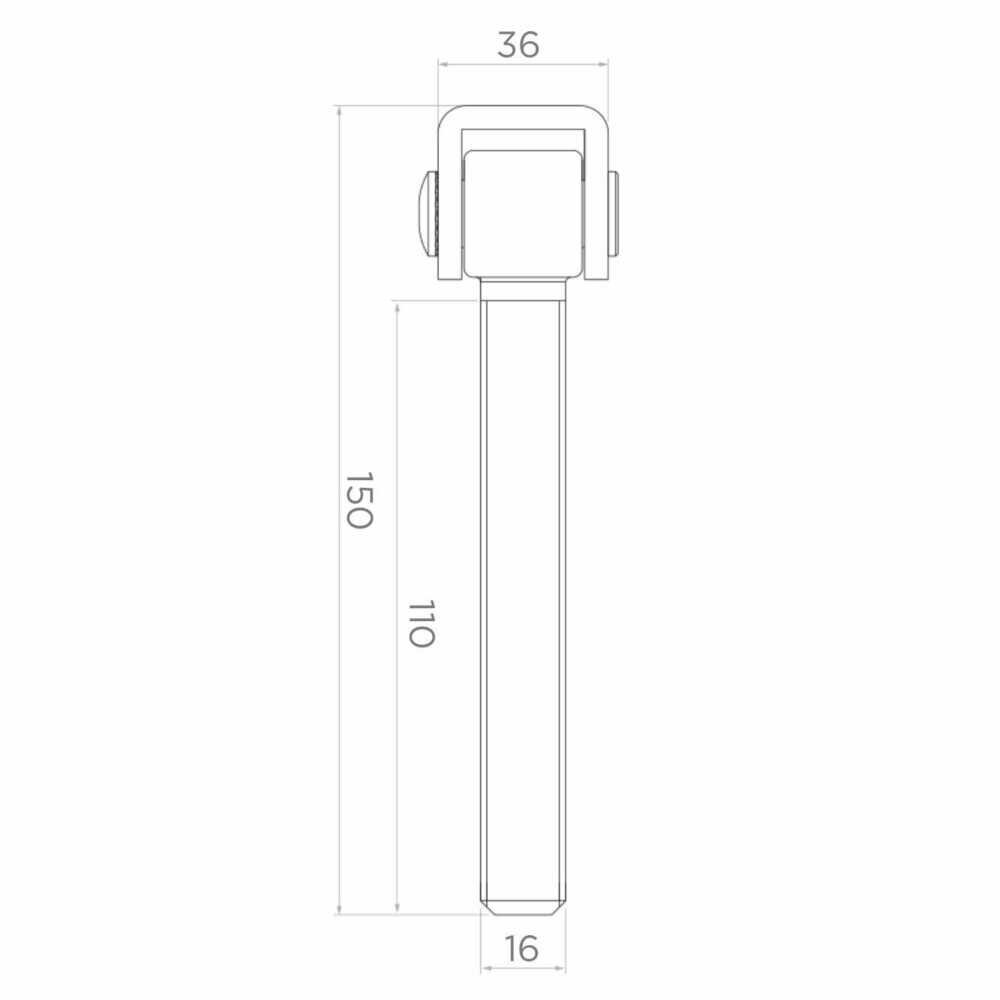

The 150 mm overall length and 110 mm bolt length provide a practical adjustment range. A pair of hinges can support up to 65 kg when used on a gate leaf up to 2 metres long.

Technical Information:

• Code: 61.003.16.01
• Thread: M16
• Overall length: 150 mm
• Bolt length: 110 mm
• Lug width: 36 mm
• Material: Steel
• Surface: Zinc-plated
• Lug: Black
• Construction: With circlip
• Maximum load: up to 65 kg per pair of hinges for a gate leaf up to 2 m long

Applications:

• Swing gates
• Outdoor gates
• Metal gates
• Doors
• Adjustable gate mounting
• Metal structures

Features:

• M16 adjustment thread
• 150 mm overall length
• 110 mm adjustment bolt
• Gate position can be adjusted after installation
• Helps compensate for gate sagging
• Strong steel construction
• Zinc-plated surface for corrosion protection
• Resistant to moisture and environmental exposure
• Load capacity up to 65 kg per pair of hinges

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is the adjustable M16 hinge used for?
This hinge is designed for swing and outdoor gates, doors and other metal structures that require adjustable mounting.

Can the gate position be adjusted after installation?
Yes. The M16 thread and adjustment nuts allow the gate or door position to be corrected after installation.

What load can the hinges support?
A pair of hinges can support up to 65 kg when used on a gate leaf up to 2 metres long.

Is the hinge suitable for outdoor use?
Yes. The zinc-plated steel surface helps protect the hinge against corrosion, rust and moisture.
