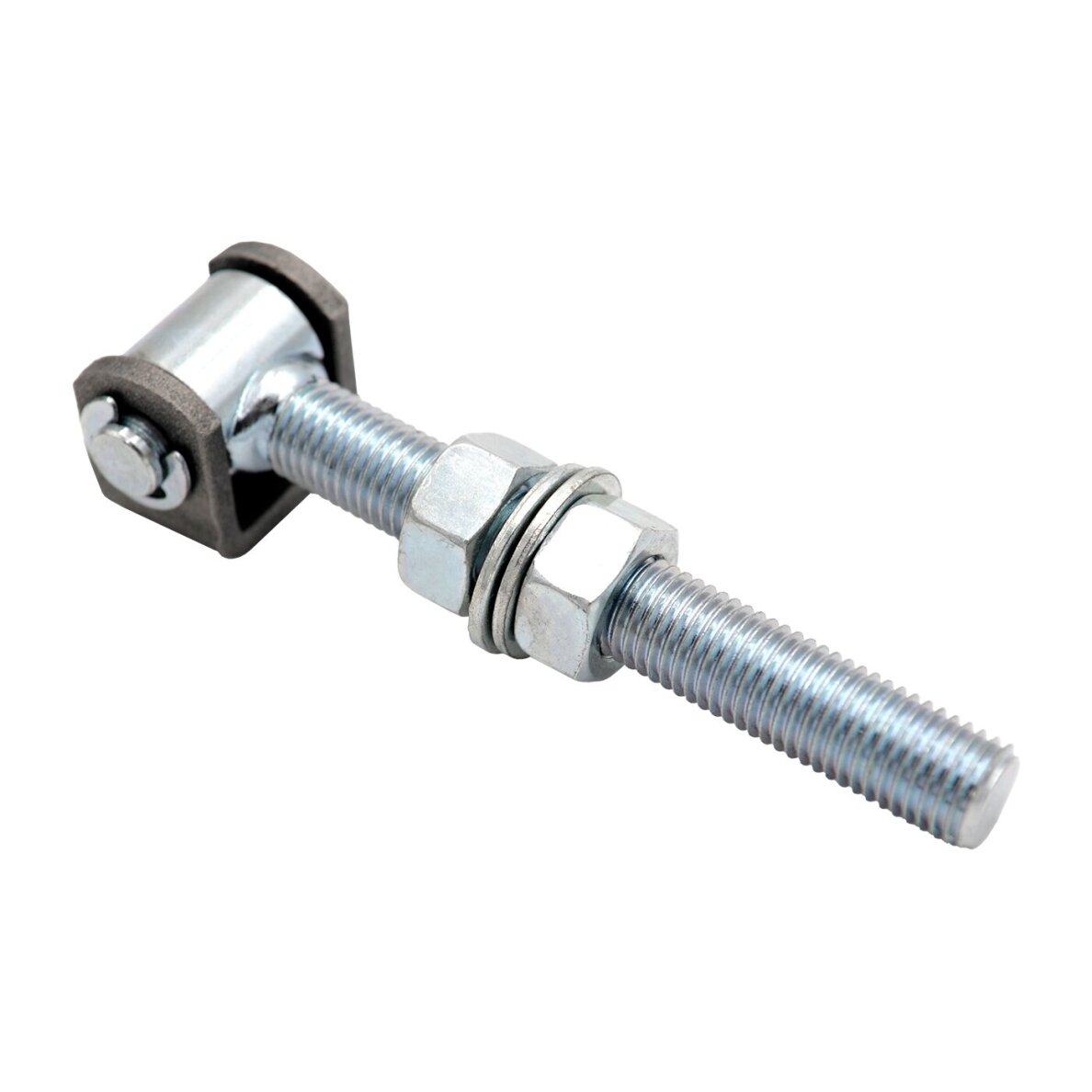

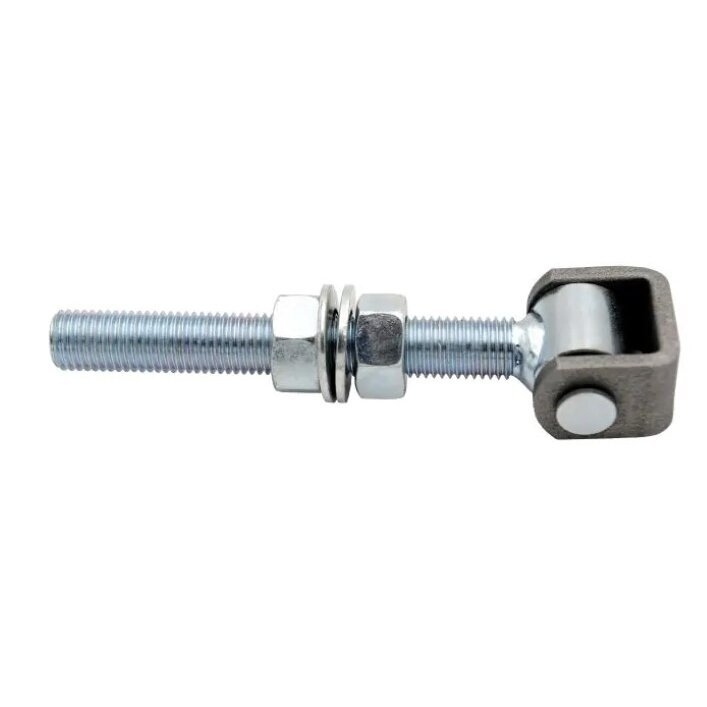

Adjustable Steel M16 Gate Hinge

Adjustable Steel M16 Gate Hinge, 150 mm Length is a strong adjustable hinge with an M16 thread, designed for outdoor gates, pedestrian gates, doors and other metal structures. The adjustment mechanism allows precise gate positioning during installation and makes it possible to correct the position after installation.

The hinge is manufactured from strong steel and protected with a zinc coating that helps protect the product against corrosion, rust, moisture and other environmental conditions. The black lug and zinc-plated body provide a solid appearance and reliable performance in outdoor applications.

The 150 mm overall length and 110 mm bolt length provide a practical adjustment range. It is a reliable choice for gate systems where strength, durability and the ability to compensate for gate sagging or structural changes are important.

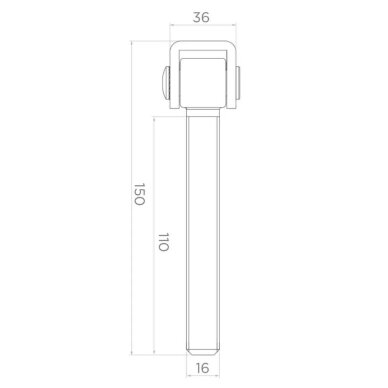

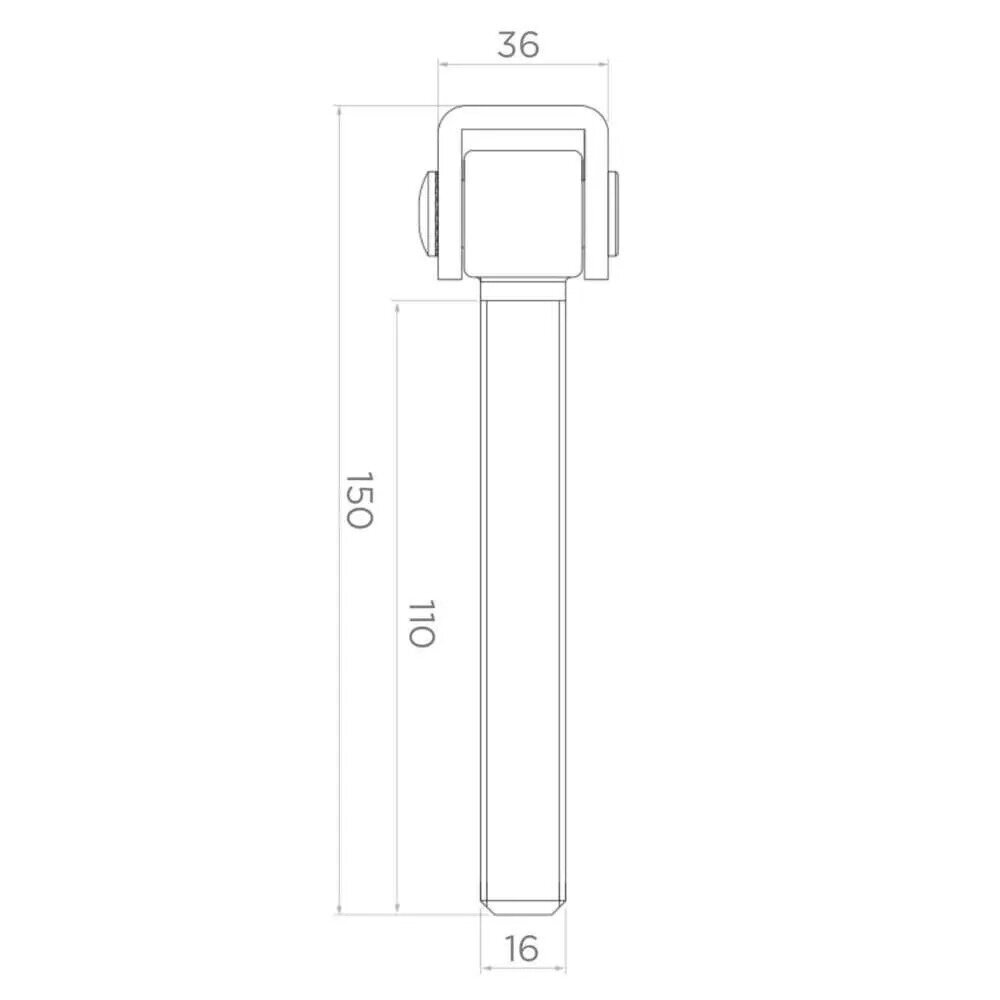

Technical Information:

• Code: 61.003.16.02
• Thread: M16
• Overall length: 150 mm
• Bolt length: 110 mm
• Lug width: 36 mm
• Material: Steel
• Surface protection: Zinc-plated
• Lug: Black
• Type: Adjustable gate hinge

Applications:

• Swing gates
• Outdoor gates
• Pedestrian gates
• Metal gates
• Doors
• Metal structures

Features:

• M16 adjustment thread
• 150 mm overall length
• 110 mm adjustment bolt
• Gate position can be adjusted after installation
• Helps compensate for gate sagging
• Strong steel construction
• Zinc-plated surface for corrosion protection
• Resistant to moisture and environmental exposure
• Suitable for intensive outdoor use

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is the adjustable M16 hinge used for?
This hinge is designed for swing gates, outdoor gates, pedestrian gates, doors and other metal structures that require strong and adjustable mounting.

Can the gate position be adjusted after installation?
Yes. The M16 thread and adjustment nuts allow the gate or door position to be corrected even after installation.

What is the length of the hinge?
The overall hinge length is 150 mm, while the adjustment bolt is 110 mm long.

Is the hinge suitable for outdoor use?
Yes. The zinc-plated steel surface helps protect the hinge against corrosion, rust, moisture and other environmental conditions.
