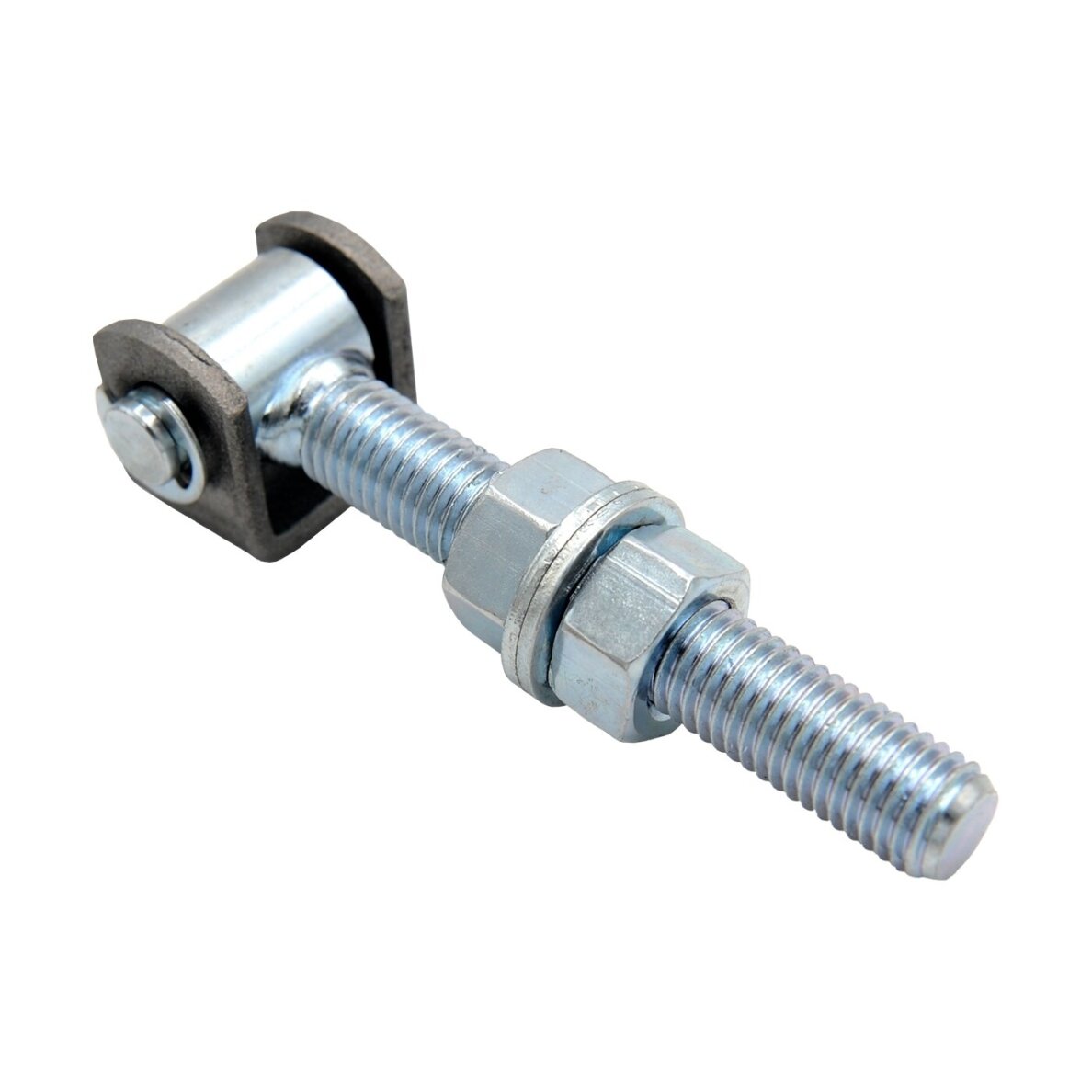

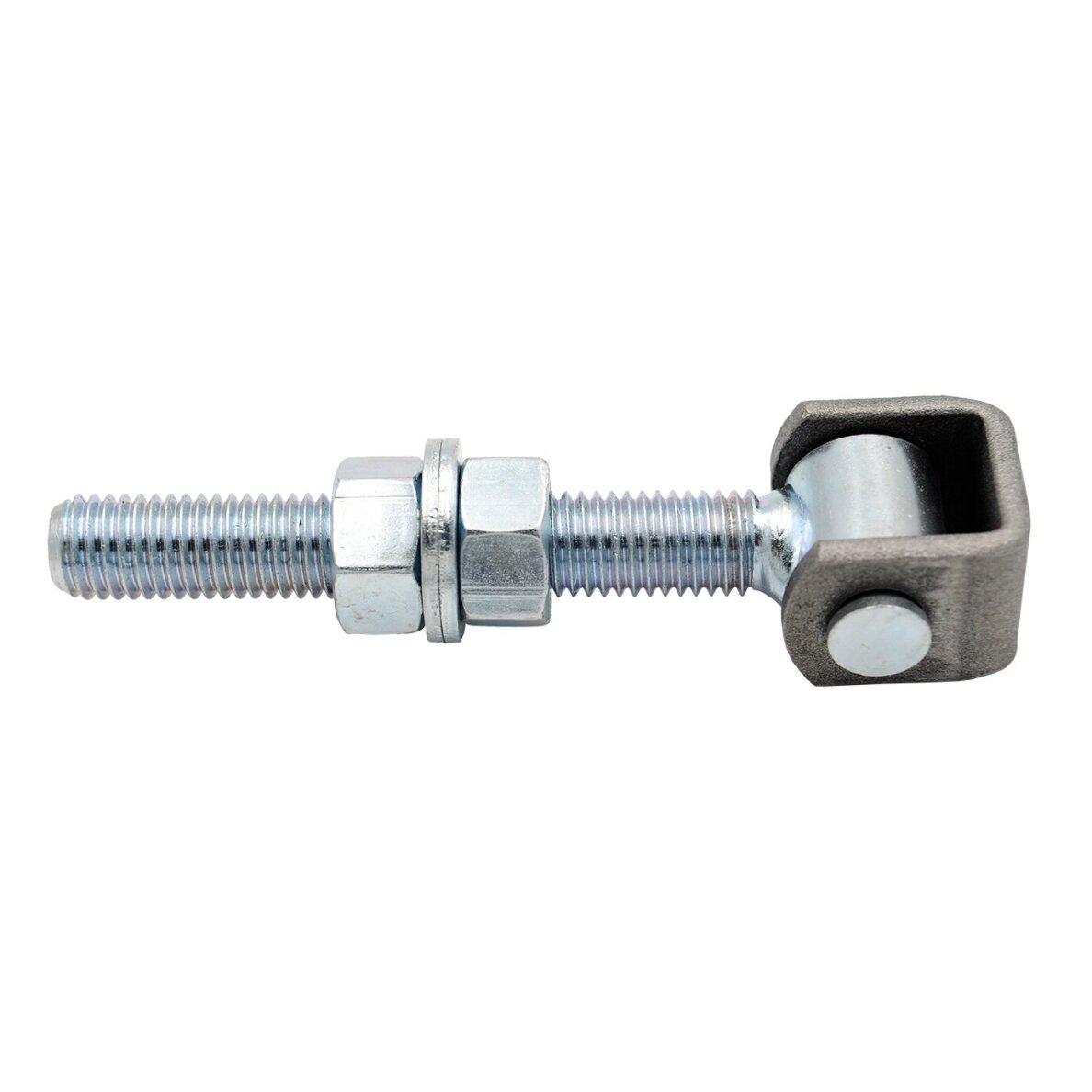

Adjustable Steel M18 Gate Hinge with Circlip

Adjustable Steel M18 Gate Hinge with Circlip, 150 mm Length is a long adjustable hinge with an M18 thread designed for swing gates, doors and other metal structures. Its construction allows precise gate positioning during installation and makes it possible to correct the position later when required.

The hinge is manufactured from strong steel and protected with a zinc coating that helps prevent corrosion, rust and moisture damage. The black lug gives the hinge a distinctive appearance, while the strong construction is designed for long-term outdoor use.

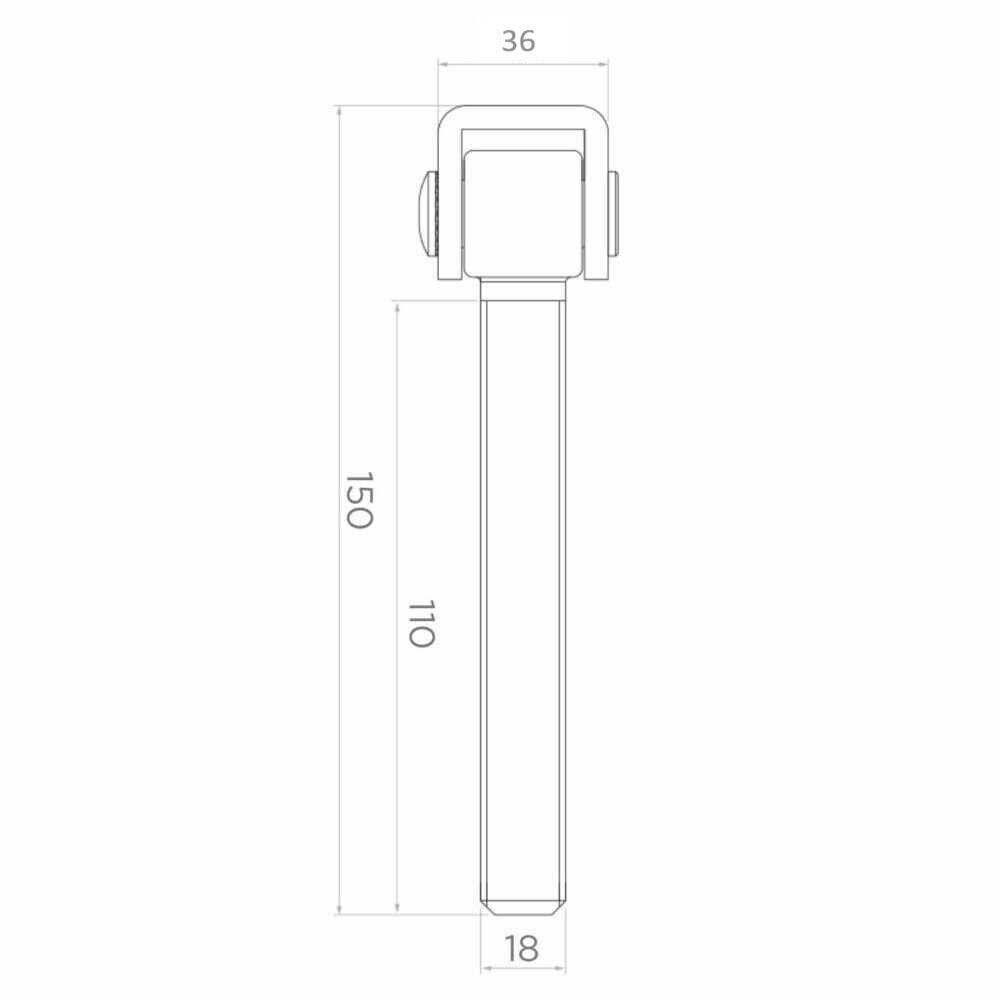

The 150 mm overall length and 110 mm bolt length provide a practical adjustment range. The M18 thread allows convenient correction of the gate or door position even after installation.

Technical Information:

• Code: 61.003.01
• Thread: M18
• Overall length: 150 mm
• Bolt length: 110 mm
• Lug width: 36 mm
• Material: Steel
• Corrosion protection: Zinc plated
• Lug: Black
• Construction: With circlip

Applications:

• Swing gates
• Outdoor gates
• Metal gates
• Doors
• Adjustable gate mounting
• Metal structures

Features:

• M18 adjustment thread
• 150 mm overall length
• 110 mm adjustment bolt
• Gate position can be adjusted after installation
• Helps compensate for gate sagging
• Strong steel construction
• Zinc-plated surface for corrosion protection
• Suitable for outdoor applications

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is the adjustable M18 hinge used for?
This hinge is designed for swing gates, doors and other metal structures that require strong and adjustable mounting.

Can the gate position be adjusted after installation?
Yes. The M18 thread and long adjustment bolt allow the gate or door position to be corrected even after installation.

What is the overall length of the hinge?
The overall hinge length is 150 mm and the bolt length is 110 mm.

Is the hinge suitable for outdoor use?
Yes. The steel hinge is zinc plated to provide protection against corrosion, rust and moisture.
