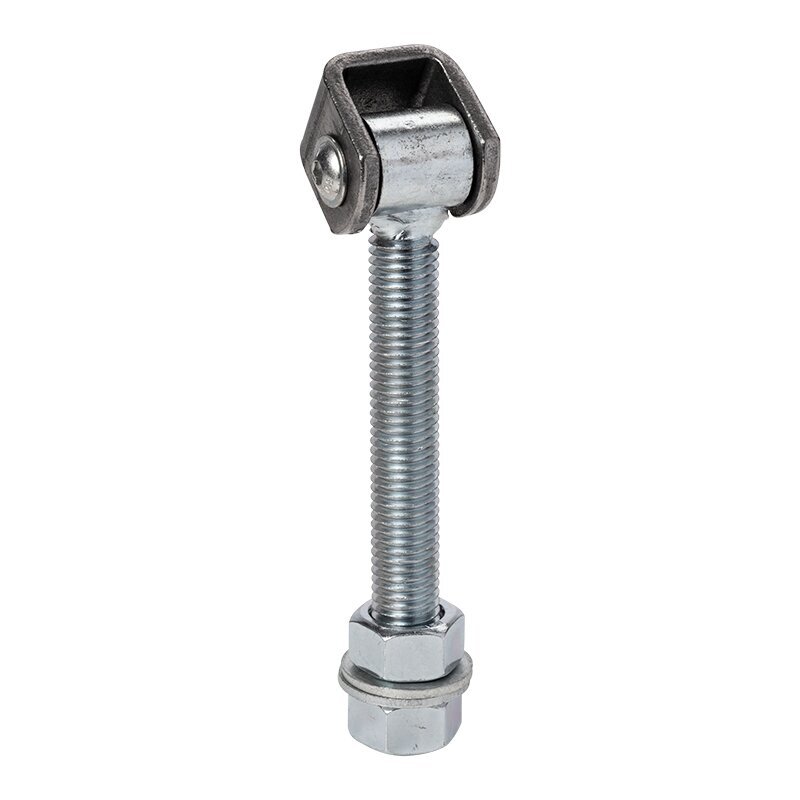

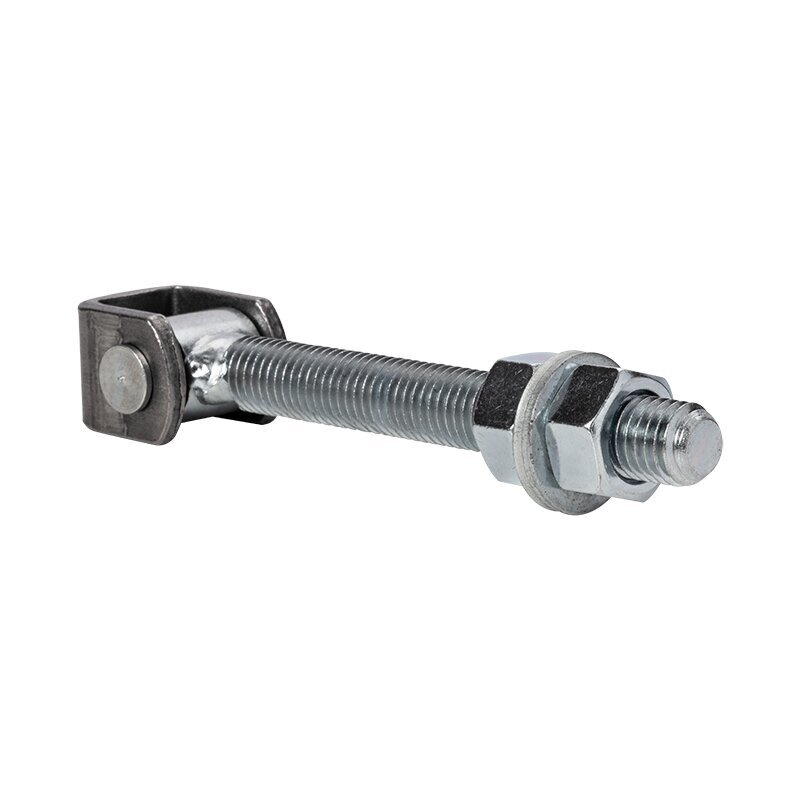

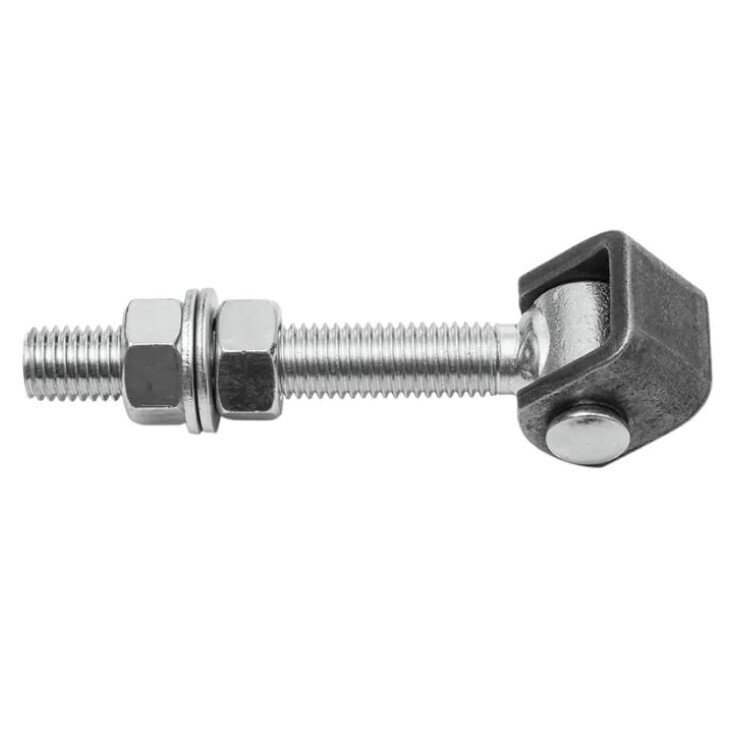

Adjustable Steel M18 Gate Hinge with Circlip

Adjustable Steel M18 Gate Hinge with Circlip, 150 mm Length is a strong and durable adjustable hinge with an M18 thread, designed for swing gates, doors and other metal structures. The long adjustment bolt allows precise gate positioning during installation and makes it possible to correct the position later when required.

The hinge is manufactured from steel and protected with a zinc coating that helps prevent corrosion, rust and moisture damage. The black lug gives the product a distinctive appearance, while the strong construction is suitable for intensive outdoor use.

The 150 mm overall length and 110 mm bolt length provide a wide adjustment range. A pair of hinges can support up to 80 kg when used on a gate leaf up to 2 metres long.

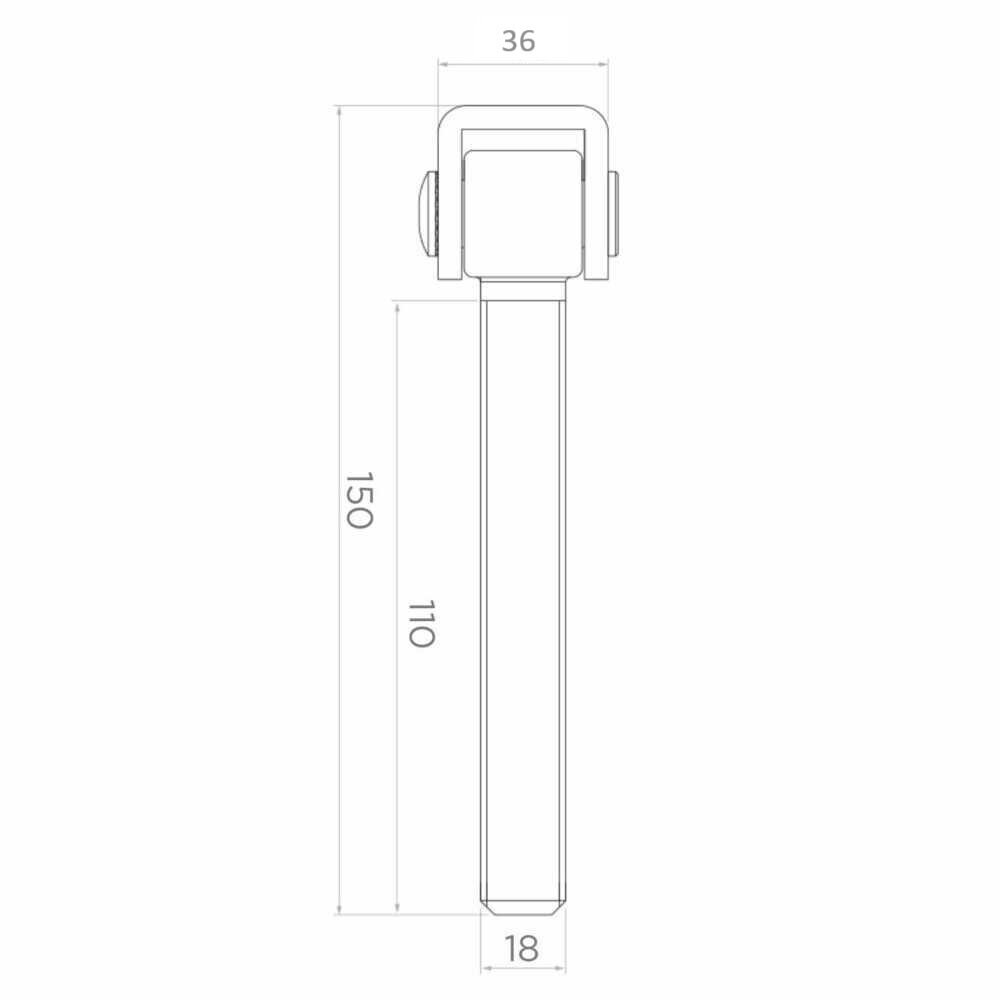

Technical Information:

• Code: 61.003.02
• Thread: M18
• Overall length: 150 mm
• Bolt length: 110 mm
• Lug width: 36 mm
• Material: Steel
• Corrosion protection: Zinc-plated surface
• Lug: Black
• Construction: With circlip
• Maximum load: up to 80 kg per pair of hinges for a gate leaf up to 2 m long

Applications:

• Swing gates
• Outdoor gates
• Metal gates
• Doors
• Adjustable gate mounting
• Metal structures

Features:

• M18 adjustment thread
• 150 mm overall length
• 110 mm adjustment bolt
• Gate position can be adjusted after installation
• Helps compensate for gate sagging
• Strong steel construction
• Zinc-plated surface for corrosion protection
• Suitable for intensive use
• Load capacity up to 80 kg per pair of hinges

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is the adjustable M18 hinge used for?
This hinge is designed for swing gates, doors and other metal structures that require strong and adjustable mounting.

Can the gate position be adjusted after installation?
Yes. The M18 thread and 110 mm adjustment bolt allow the gate or door position to be corrected even after installation.

What load can the hinges support?
A pair of hinges can support up to 80 kg when used on a gate leaf up to 2 metres long.

Is the hinge suitable for outdoor use?
Yes. The zinc-plated steel surface helps protect the hinge against corrosion, rust and moisture.
