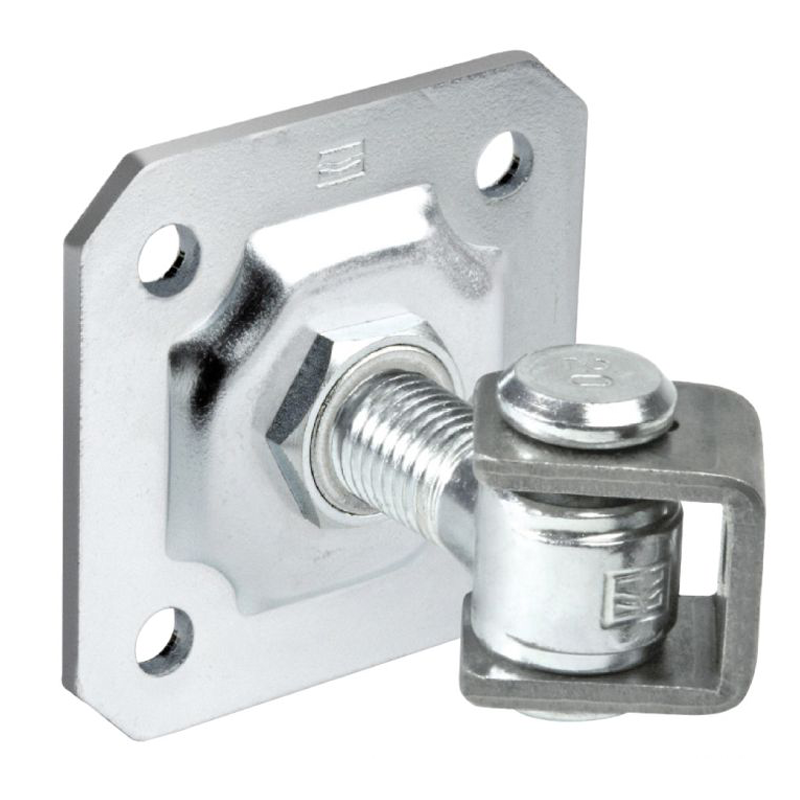

Adjustable M20 Gate Hinge with 100×100×4 mm Plate

Adjustable M20 Gate Hinge with 100×100×4 mm Plate is a strong adjustable hinge designed for swing gates. The M20 threaded adjustment allows the gate position to be corrected after installation, helping to achieve precise alignment and compensate for gate sagging or other changes in position.

The hinge is manufactured from steel and zinc plated for corrosion protection, making it suitable for outdoor applications. The zinc-coated surface provides resistance to environmental conditions and helps ensure a long service life.

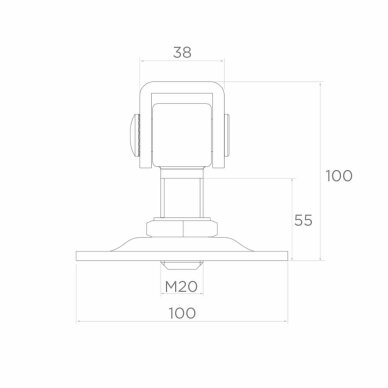

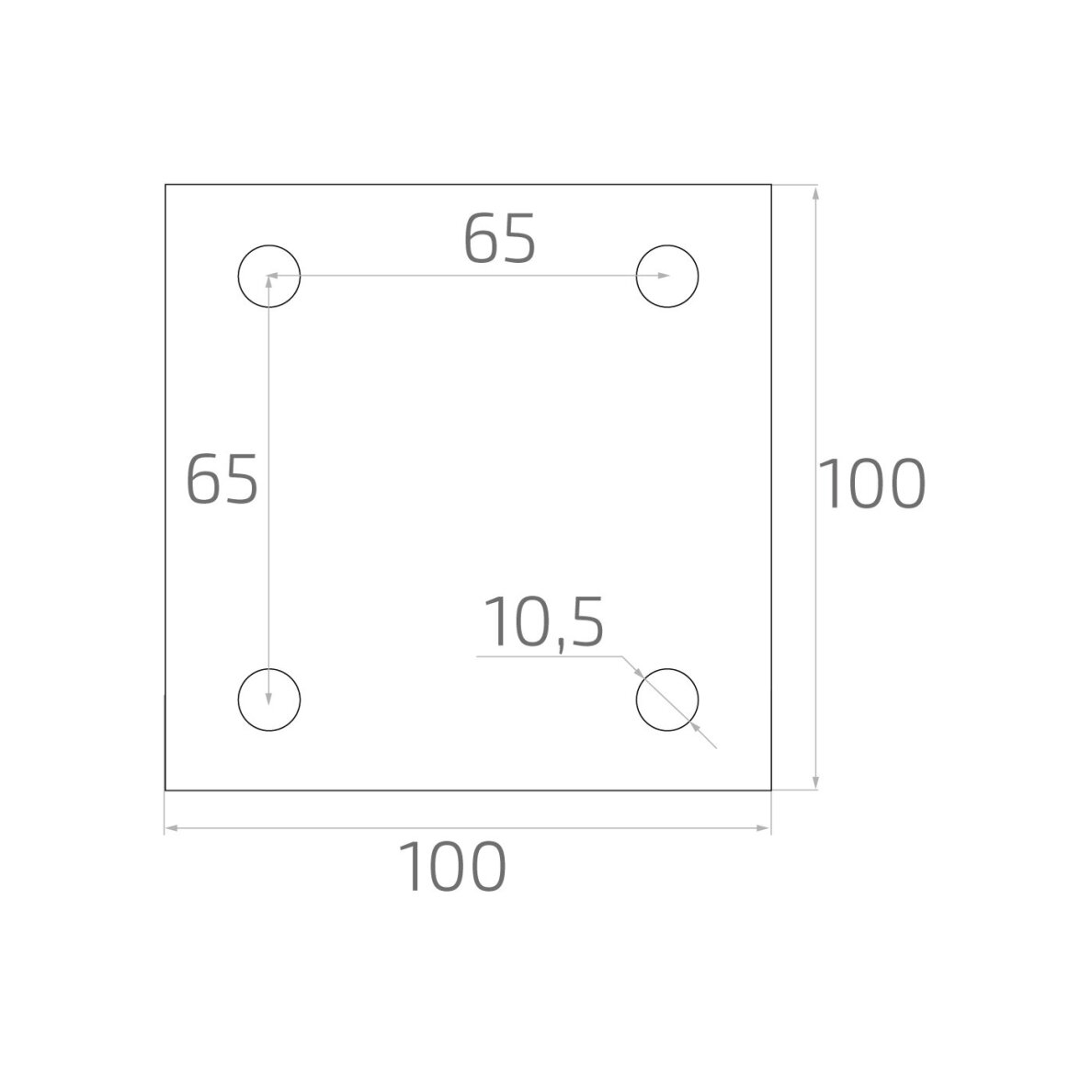

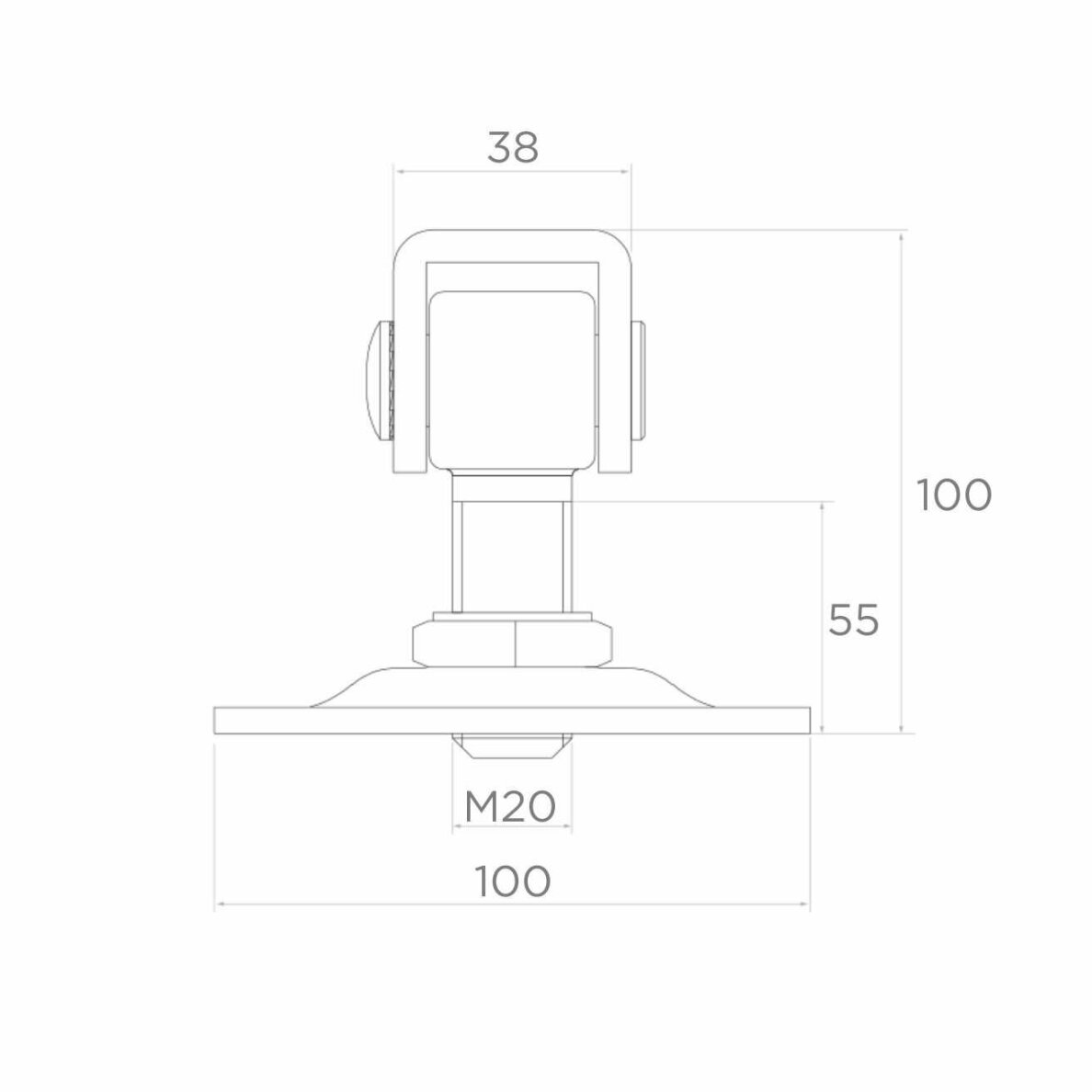

The 100×100×4 mm mounting plate features 11 mm diameter mounting holes positioned at 65×65 mm centres. The construction provides stable mounting, while the 38 mm hinge pin width ensures reliable support during gate movement.

Technical Information:

• Code: 61.000
• Thread: M20
• Length: 85 mm
• Material: Steel
• Finish: Zinc plated
• Hinge pin width: 38 mm
• Mounting plate: 100×100×4 mm
• Mounting hole diameter: 11 mm
• Hole spacing: 65×65 mm

Applications:

• Swing gates
• Metal gates
• Adjustable gate mounting
• Residential gates
• Commercial and industrial gates

Features:

• M20 adjustment thread
• Gate position can be adjusted after installation
• 100×100×4 mm mounting plate
• Strong and stable construction
• Zinc-plated surface
• Corrosion protection
• Suitable for outdoor use
• Helps compensate for gate sagging and alignment changes

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is the adjustable M20 gate hinge used for?
The adjustable M20 hinge is designed for mounting swing gates and allows the gate position to be corrected after installation.

Can the gate position be adjusted after installation?
Yes. The M20 adjustment thread allows the gate position to be corrected and helps compensate for gate sagging or other alignment changes.

What are the dimensions of the mounting plate?
The mounting plate measures 100×100 mm and is 4 mm thick.

Is the adjustable hinge suitable for outdoor use?
Yes. The steel hinge is zinc plated for corrosion protection, making it suitable for outdoor gate installations.
