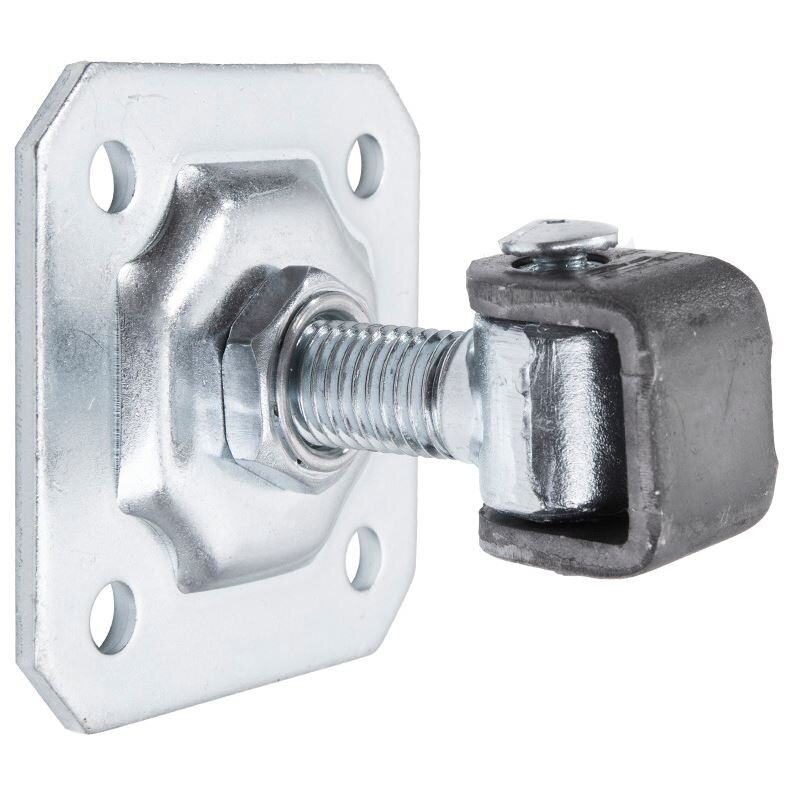

Adjustable M20 Gate Hinge with 100×100×4 mm Plate

Adjustable M20 Gate Hinge with 100×100×4 mm Plate is a strong adjustable hinge designed for swing gates. The M20 threaded adjustment mechanism allows precise gate alignment after installation and helps compensate for gate sagging or other changes in position.

The hinge is manufactured from steel and zinc plated to provide long-lasting protection against corrosion and mechanical damage. The zinc-plated surface makes the hinge suitable for outdoor applications and resistant to moisture and changing weather conditions.

The 100×100×4 mm mounting plate provides stable attachment to the gate structure. The 43 mm wide hinge pin and robust construction provide reliable gate movement and long-term durability.

Technical Information:

• Code: 61.000.20
• Thread: M20

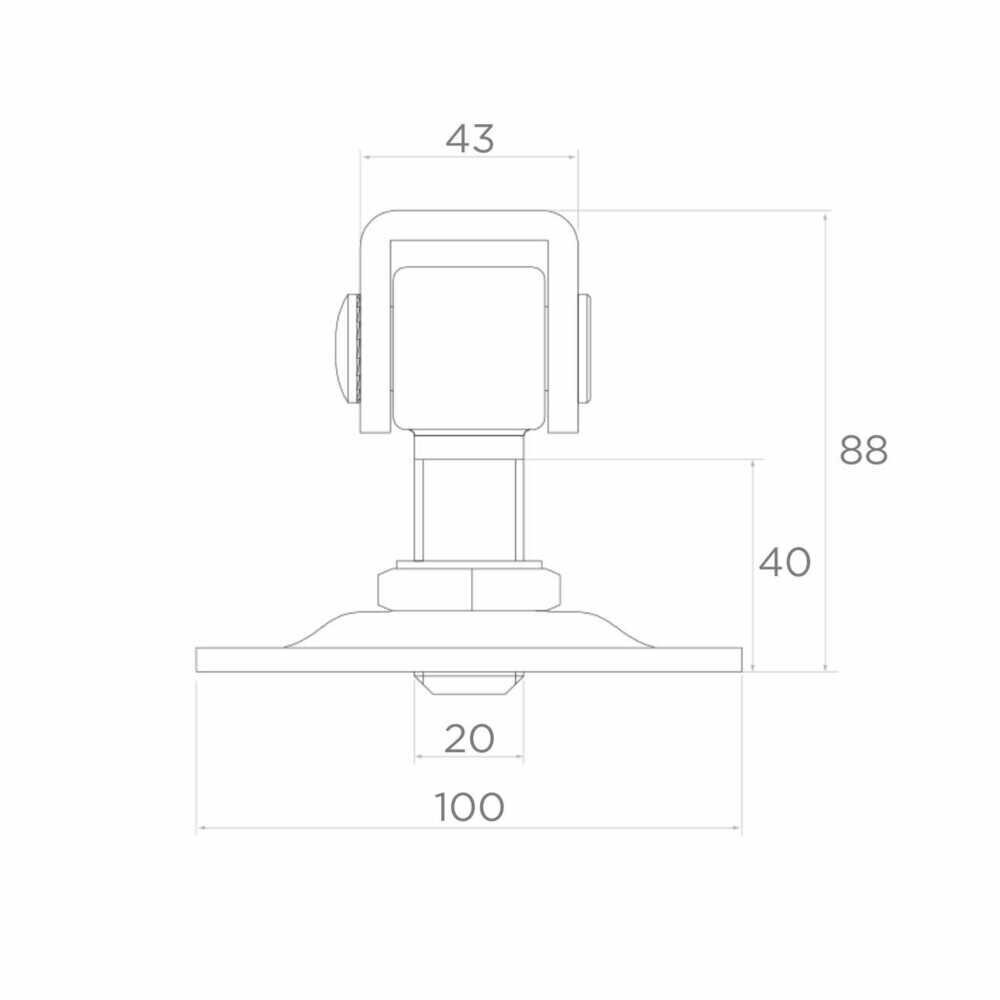

• Overall length: 88 mm
• Hinge pin width: 43 mm
• Material: Steel
• Finish: Zinc plated

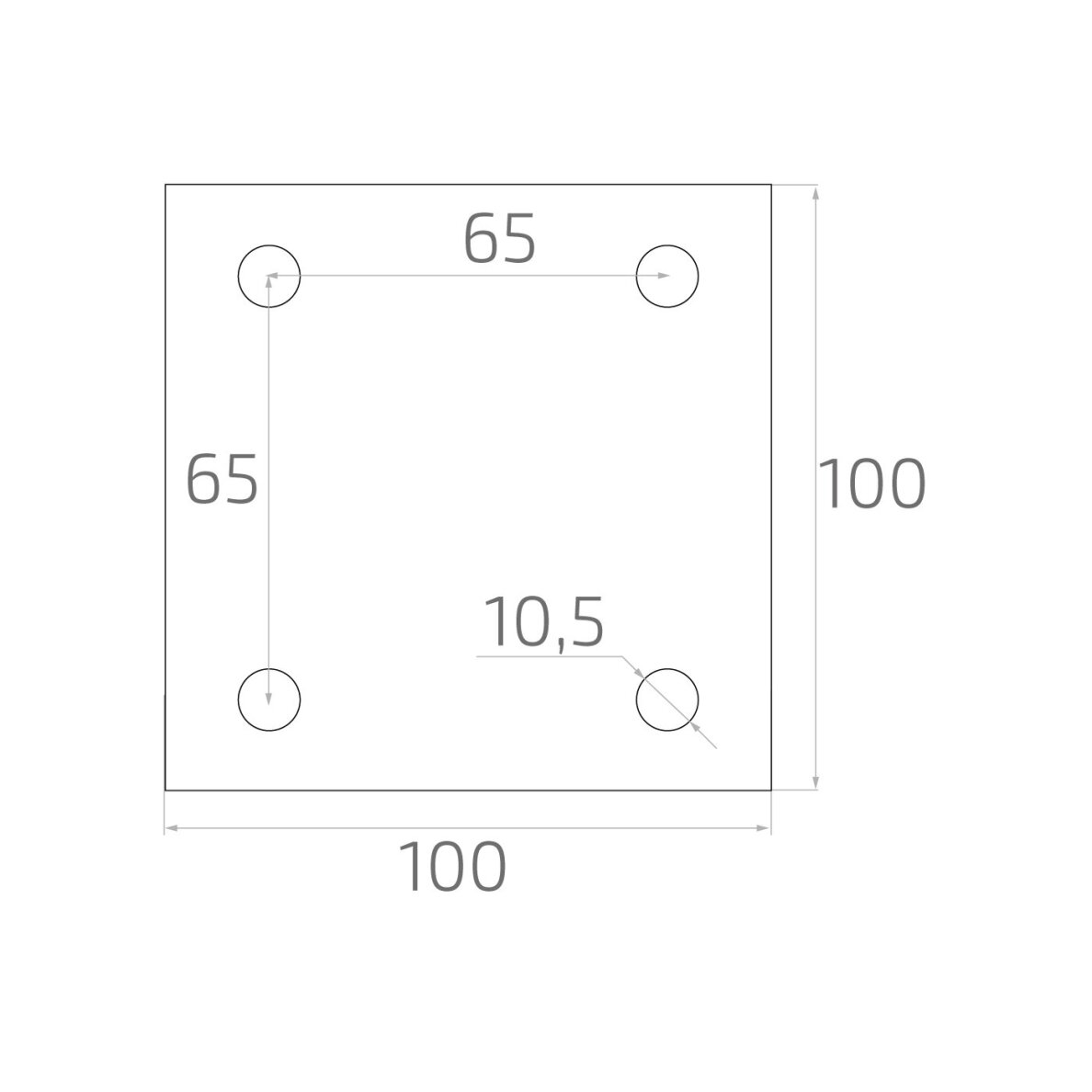

• Mounting plate: 100×100×4 mm
• Mounting hole spacing: 65 mm

Applications:

• Swing gates
• Metal gates
• Adjustable gate mounting
• Outdoor gate structures
• Residential and commercial gates

Features:

• M20 adjustment thread
• Gate position can be adjusted after installation
• Helps compensate for gate sagging
• Strong 100×100×4 mm mounting plate
• 43 mm wide hinge pin
• Zinc-plated surface
• Corrosion and weather resistance
• Suitable for outdoor use

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is this adjustable M20 gate hinge used for?
This hinge is designed for mounting swing gates and allows precise adjustment of the gate position.

Can the gate position be adjusted after installation?
Yes. The M20 threaded adjustment allows the gate position to be corrected after installation and helps compensate for gate sagging.

What are the dimensions of the mounting plate?
The mounting plate measures 100×100 mm and is 4 mm thick.

Is the hinge suitable for outdoor use?
Yes. The hinge is zinc plated for corrosion protection, making it suitable for outdoor gate installations.
