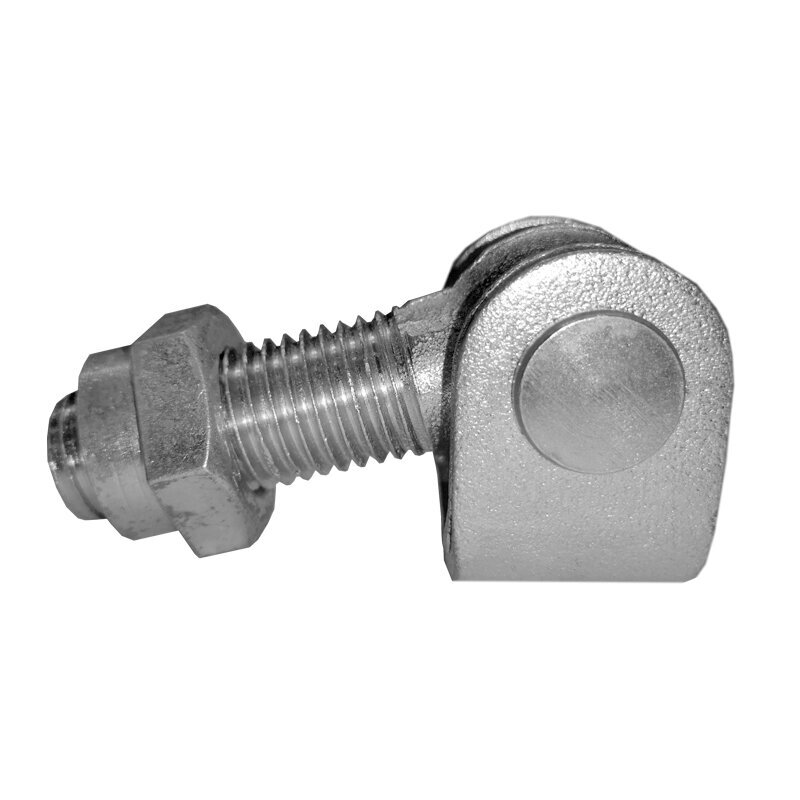

Adjustable M20 Gate Hinge

Adjustable M20 Gate Hinge, Zinc Plated, 87 mm Length is a strong adjustable hinge with an M20 thread designed for swing gates, doors and other metal structures. The adjustment mechanism allows precise positioning and makes it possible to correct the position even after installation.

The hinge is manufactured from strong steel and protected with a zinc coating. The zinc-plated surface provides long-term protection against corrosion, rust and moisture, making the hinge suitable for outdoor applications.

The 87 mm long construction with an M20 thread provides reliable mounting. The hinge is designed for higher loads – a pair of hinges can support up to 120 kg when used on a gate approximately 2 metres long.

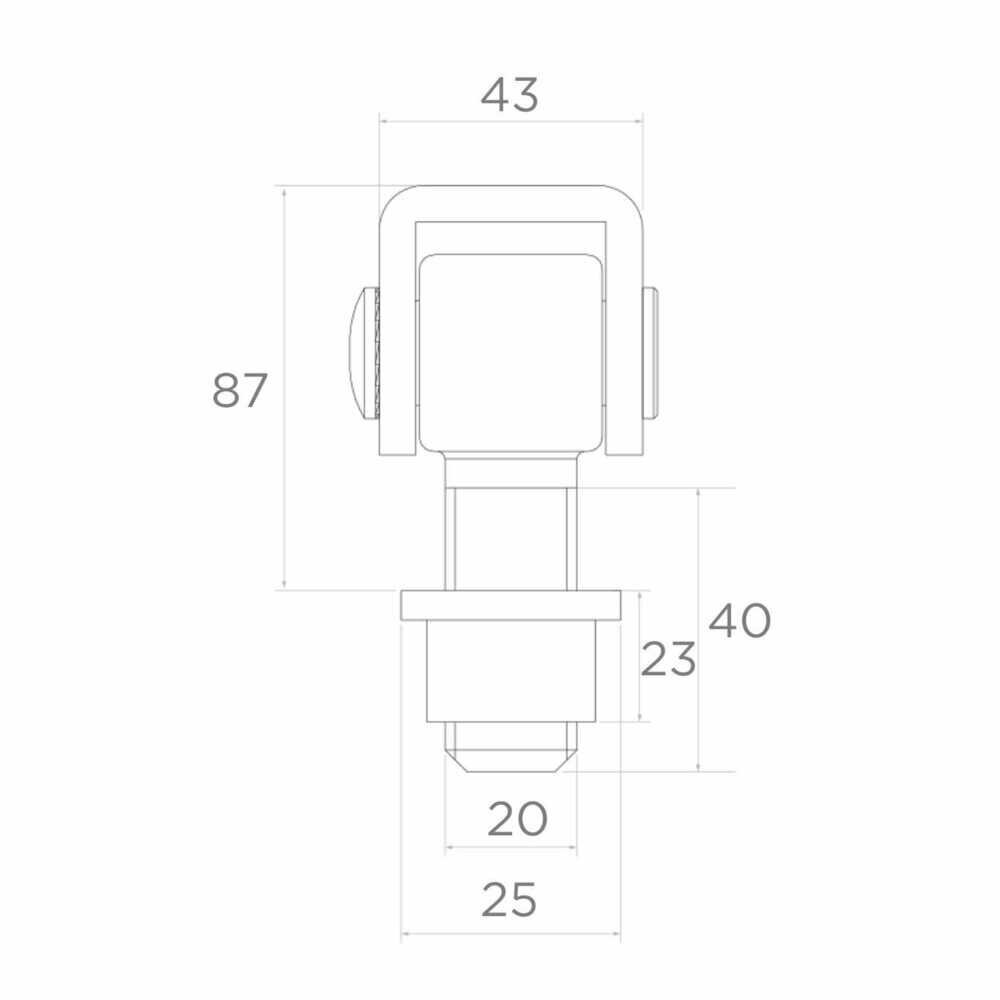

Technical Information:

• Code: 61.002.01
• Thread: M20
• Length: 87 mm
• Lug height: 37 mm
• Sleeve width: 25 mm
• Lug width: 30 mm
• Material: Steel
• Finish: Zinc plated
• Maximum load: 120 kg per pair of hinges for a gate approximately 2 m long

Applications:

• Swing gates
• Metal gates
• Doors
• Adjustable gate mounting
• Outdoor metal structures

Features:

• M20 adjustment thread
• Position can be adjusted after installation
• Helps compensate for gate sagging
• Load capacity up to 120 kg per pair of hinges
• Strong steel construction
• Zinc-plated surface
• Protection against corrosion, rust and moisture
• Suitable for outdoor use

Related Products:

• Gate Rollers
• Gate Tracks and Accessories
• Gate Locks
• Fence Systems

Frequently Asked Questions:

What is the adjustable M20 hinge used for?
This hinge is designed for swing gates, doors and other metal structures that require strong and adjustable mounting.

Can the gate position be adjusted after installation?
Yes. The M20 thread allows the position of the gate or door to be corrected even after installation.

What load can these hinges support?
A pair of hinges can support up to 120 kg when used on a gate approximately 2 metres long.

Is the hinge suitable for outdoor use?
Yes. The zinc-plated surface helps protect the steel against corrosion, rust and moisture.
