Adjustable M20 Gate Hinge with Zinc-Plated Eye Base

Adjustable M20 Gate Hinge with Zinc-Plated Eye Base – a strong steel adjustable hinge with an M20 thread designed for gates, pedestrian gates and other metal structures. The adjustable construction allows precise gate positioning during installation and further adjustment after mounting.

The hinge is manufactured from steel and zinc plated for resistance to corrosion, moisture and environmental exposure. Its strong construction is suitable for outdoor use in both residential and industrial gate systems.

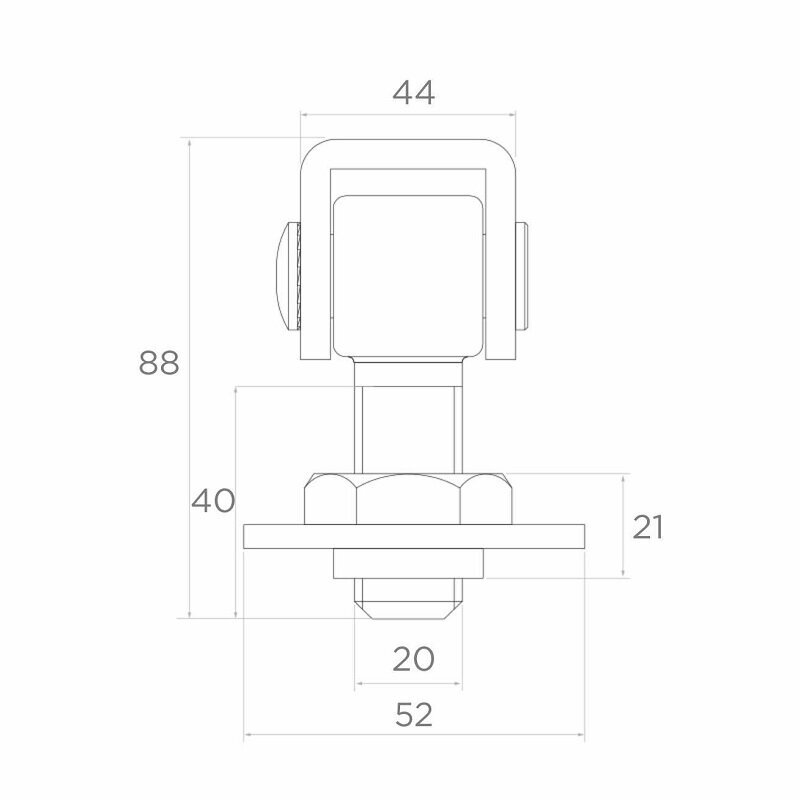

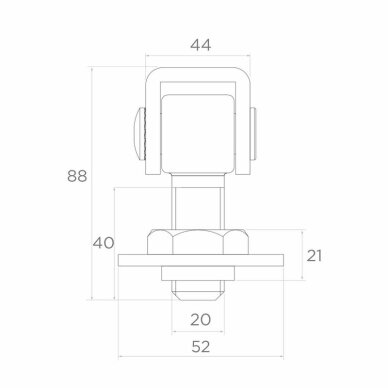

Technical Information:

• Code: 61.013.01
• Thread: M20
• Overall length: 88 mm
• Bolt length: 40 mm
• Eye width: 44 mm
• Material: Steel
• Surface: Zinc plated
• Permissible load: up to 105 kg per pair of hinges with a 2 m long gate
• Adjustable construction

Applications:

• Swing gates
• Pedestrian gates
• Driveway gates
• Metal gate structures
• Residential and industrial gates

Features:

• M20 thread allows precise gate position adjustment
• Gate position can be corrected after installation
• Zinc-plated surface helps protect against corrosion and rust
• Strong steel construction designed for long-term use
• One pair of hinges can support up to 105 kg with a 2 m long gate
• Suitable for outdoor applications

Related Products:

• Adjustable Gate Hinges
• Gate Rollers
• Gate Locks
• Gate Components

Frequently Asked Questions:

Can the gate position be adjusted after installation?
Yes. The M20 threaded construction allows the gate position to be corrected after the hinge has been installed.

What load can these hinges support?
According to the specified technical data, one pair of hinges can support up to 105 kg with a 2 m long gate.

Is this hinge suitable for outdoor use?
Yes. The zinc-plated steel surface helps protect the hinge against corrosion and environmental exposure.

What thread size does this hinge have?
This adjustable gate hinge has an M20 thread.
