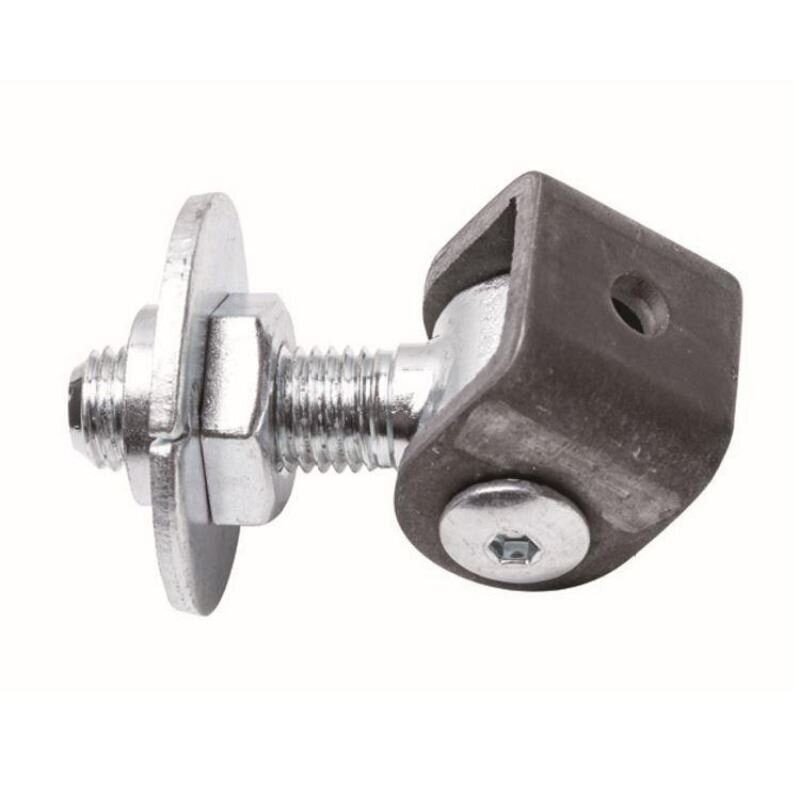

Adjustable Gate Hinge with Mounting Plate M16

Adjustable Gate Hinge with Mounting Plate M16 – Zinc Plated is a strong adjustable hinge with an M16 thread and mounting plate, designed for gates, pedestrian gates and other metal structures. The mounting plate allows convenient bolted installation to a post or structure, while the threaded section provides precise adjustment of the gate position.

The hinge is manufactured from strong steel and zinc plated for increased resistance to corrosion, moisture and environmental exposure. Its adjustable design allows the gate position to be corrected even after installation.

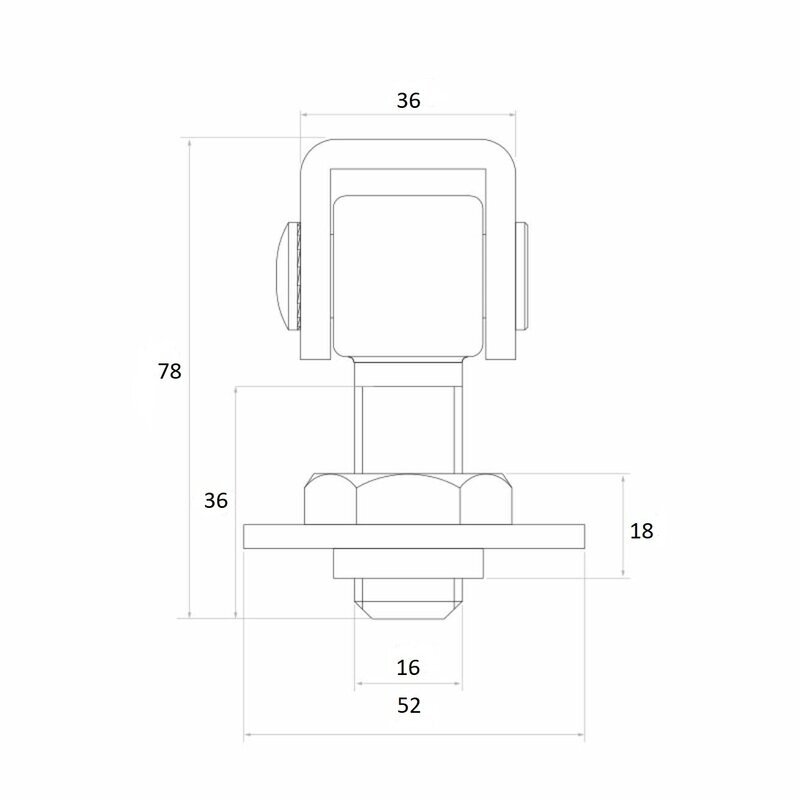

Technical Information:

• Code: 61.012
• Thread: M16
• Overall length: 78 mm
• Mounting plate dimensions: 75 × 75 mm
• Plate thickness: 3 mm
• Material: Steel
• Surface: Zinc plated
• Installation type: Bolted mounting plate with holes

Applications:

• Swing gates
• Pedestrian gates
• Metal gate posts
• Metal structures
• Outdoor gate systems

Features:

• M16 thread allows precise gate position adjustment
• 75 × 75 mm mounting plate provides convenient installation
• Gate position can be corrected after installation
• Zinc-plated surface helps protect against corrosion
• Strong steel construction is suitable for long-term use
• Suitable for gates and pedestrian gates in outdoor applications

Related Products:

• Adjustable Gate Hinges
• Gate Rollers
• Gate Locks
• Gate Components

Frequently Asked Questions:

Can this hinge be adjusted after installation?
Yes. The M16 threaded section allows the gate or pedestrian gate position to be corrected after installation.

How is this hinge installed?
The hinge has a 75 × 75 mm mounting plate with fixing holes, allowing it to be bolted to a suitable structure.

Is the hinge suitable for outdoor use?
Yes. The zinc-plated surface helps protect the steel against corrosion, moisture and other environmental factors.

What thread size does this hinge have?
This adjustable hinge has an M16 thread.
