Adjustable Wall Flange D42.4

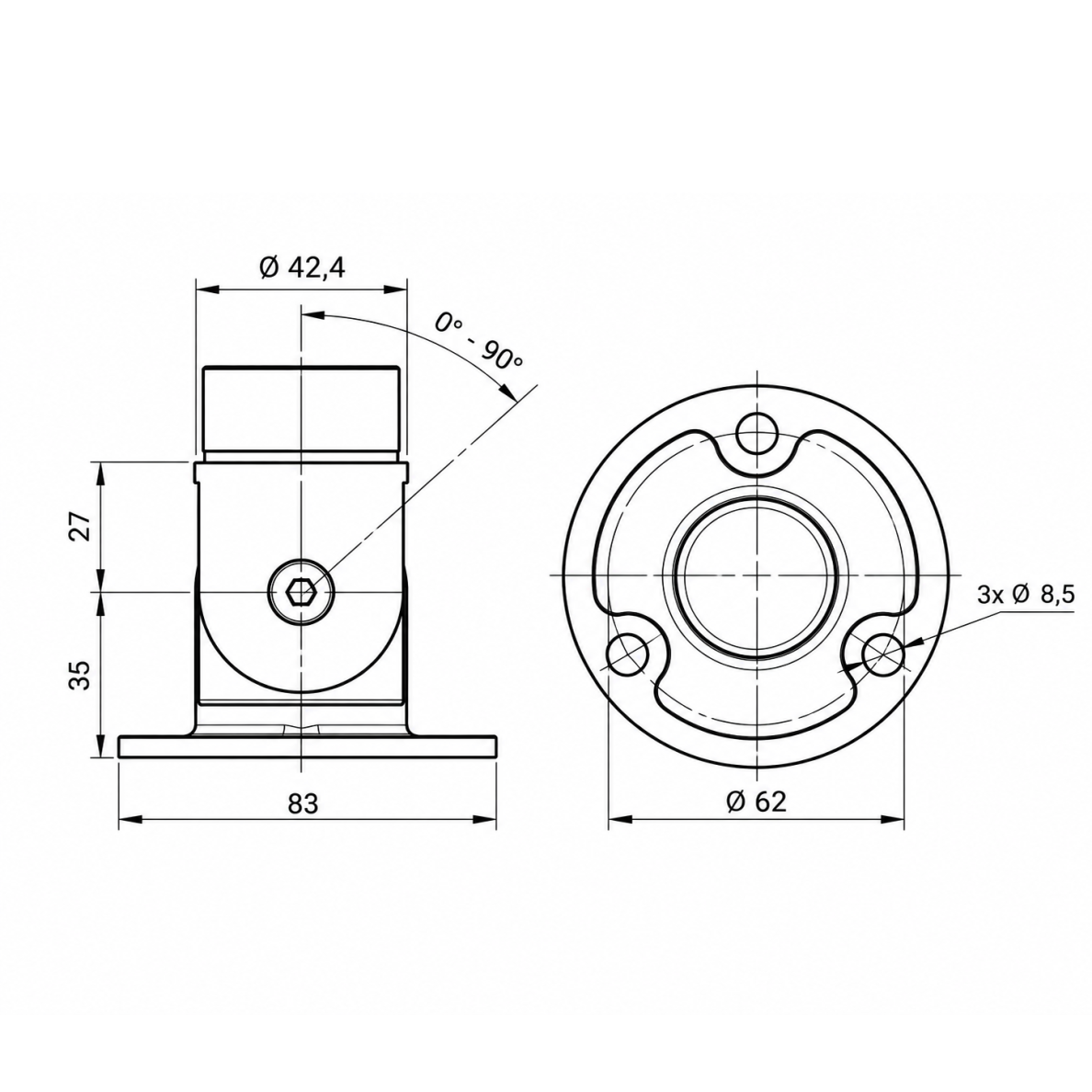

Adjustable Wall Flange Ø42.4 N22.1003.4BS – a stainless steel adjustable wall mounting flange designed for fixing Ø42.4 × 2 mm handrails or railing tubes to a wall at an adjustable angle. The pivoting construction allows easy alignment for staircases, ramps and other inclined railing systems.

The flange is manufactured from AISI 304 stainless steel with a satin finish, providing corrosion resistance, durability and an attractive appearance. It is an excellent solution for both new railing installations and renovation projects.

Technical Information:

• Product code: N22.1003.4BS
• Product type: adjustable wall flange
• Suitable tube: Ø42.4 × 2 mm
• Material: AISI 304 stainless steel
• Finish: satin
• Construction: adjustable angle
• Mounting: wall-mounted with three fixing holes
• Tube fixing: locking screw

Features:

• Designed for Ø42.4 mm stainless steel handrails and tubes.
• Adjustable angle for staircases and inclined railings.
• Reliable wall mounting.
• Strong and durable construction.
• Manufactured from high-quality AISI 304 stainless steel.
• Satin finish matches other railing components.
• Suitable for indoor and standard outdoor applications.

Applications:

This adjustable wall flange is designed for mounting Ø42.4 mm handrails and railing tubes to walls where the railing follows an incline. It is commonly used on staircases, ramps, balconies and other stainless steel railing systems.

Installation:

The flange is fixed to the wall using suitable screws or anchors. The tube is inserted into the holder and secured with the locking screw. The installation angle can be adjusted before final tightening.

Related Products:

We recommend combining this flange with railing tubes and handrails, other wall-mounted brackets, elbows and connectors, and mounting accessories.

Frequently Asked Questions:

Which tube is this flange designed for?
It is designed for Ø42.4 × 2 mm stainless steel tubes and handrails.

Can the angle be adjusted?
Yes. The adjustable construction allows the flange to be aligned with staircases and other inclined railings.

Is it suitable for stair handrails?
Yes. It is one of the most common brackets used for staircase handrail installations.

Can it be used outdoors?
Yes. AISI 304 stainless steel is suitable for most standard indoor and outdoor environments. AISI 316 is recommended for coastal or highly corrosive locations.

Are mounting fixings included?
Mounting hardware should be selected according to the wall material and expected structural load.
