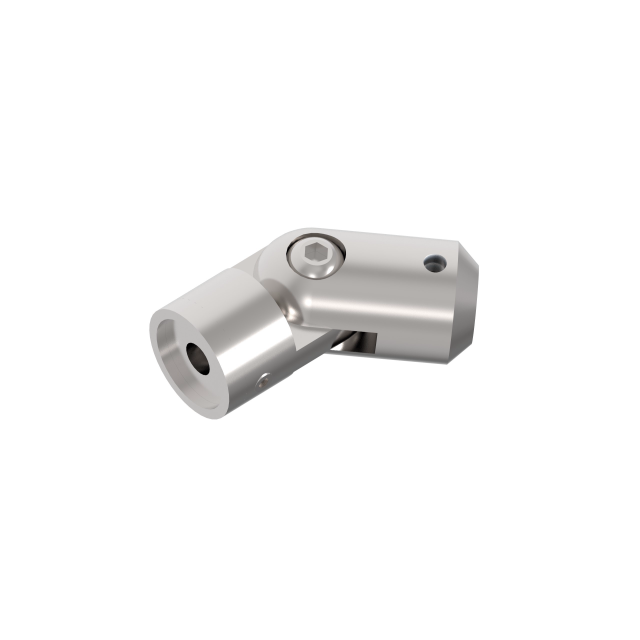

Adjustable wall-mounted rod holder

Adjustable Wall Mounted Rod Holder STR-4003 – a stainless steel holder designed for fixing a Ø12 mm horizontal infill rod or tube to a wall or other flat surface. Its adjustable angle allows easy alignment with different railing layouts, making it an excellent choice for stair railings and other angled installations.

Manufactured from AISI 304 stainless steel with a satin finish, this holder offers excellent corrosion resistance, durability and a professional appearance. It is suitable for both new installations and renovation of indoor and standard outdoor railing systems.

Technical Information:

• Code: STR-4003
• Installation: Wall or flat surface mounting
• Suitable for rod / tube: Ø12 mm
• Type: Adjustable wall mounted holder
• Material: AISI 304 stainless steel
• Finish: Satin
• Application: Horizontal infill rod or tube fixing

Features:

• Designed for Ø12 mm rods or tubes.
• Adjustable angle.
• Suitable for wall or flat surface mounting.
• Durable AISI 304 stainless steel construction.
• Elegant satin finish.
• Quick and reliable installation.
• Suitable for indoor and standard outdoor railing systems.

Applications:

This adjustable wall mounted holder is designed for fixing Ø12 mm horizontal infill rods or tubes to walls and other flat surfaces in stainless steel railing systems. Its adjustable angle makes it especially suitable for staircases and installations requiring angled rod alignment.

Installation:

The holder is fixed to the wall or another flat surface using appropriate fasteners. The desired angle is adjusted before final tightening, while the Ø12 mm rod or tube is secured using the integrated fixing screws.

Related products:

For this holder we recommend other rod holders, rod end caps and the complete range of stainless steel rod elements.

Frequently Asked Questions:

What is this holder used for?
It is designed for fixing Ø12 mm rods or tubes to a wall or another flat surface.

Is the angle adjustable?
Yes. The adjustable design allows the holder to be aligned for different installation angles.

What material is it made from?
It is manufactured from AISI 304 stainless steel with a satin finish.

Is it suitable for outdoor use?
Yes. AISI 304 stainless steel is suitable for most standard outdoor environments. AISI 316 products are recommended for coastal or highly corrosive conditions.

Which rod diameter is it designed for?
It is designed for Ø12 mm stainless steel rods or tubes.
