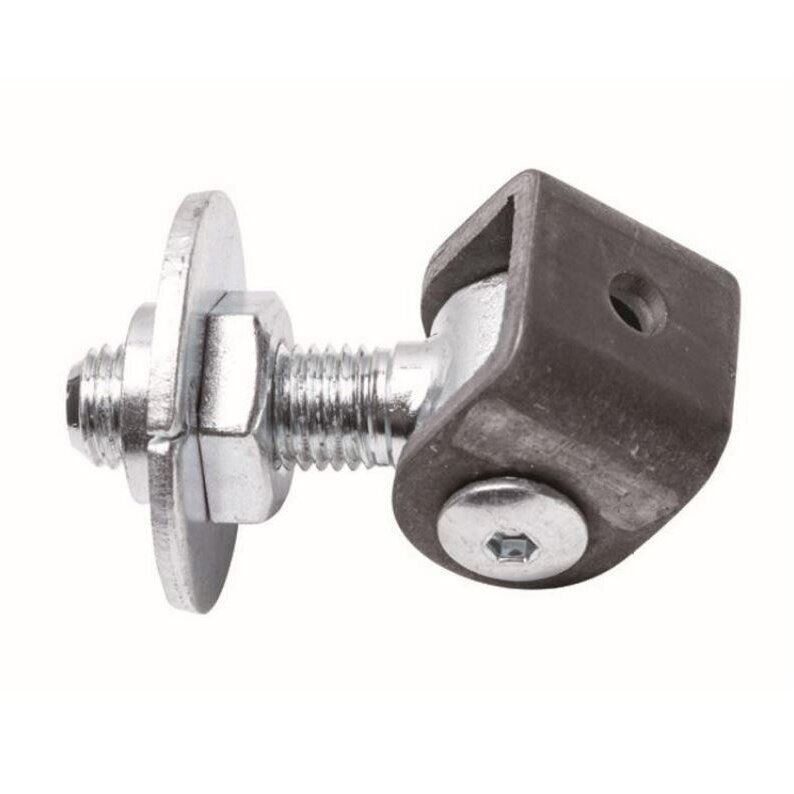

Adjustable Weld-On M20 Gate Hinge with Black Eye

Adjustable Weld-On M20 Gate Hinge with Black Eye is a strong adjustable hinge designed for gates, pedestrian gates and other metal structures. The weld-on construction provides secure mounting, while the M20 threaded adjustment allows precise gate alignment during installation and after mounting.

The hinge is manufactured from strong steel and designed for reliable use in gate systems. The black eye provides a neat appearance, while the adjustable construction makes installation and subsequent gate alignment easier. Suitable for both residential and industrial gate applications.

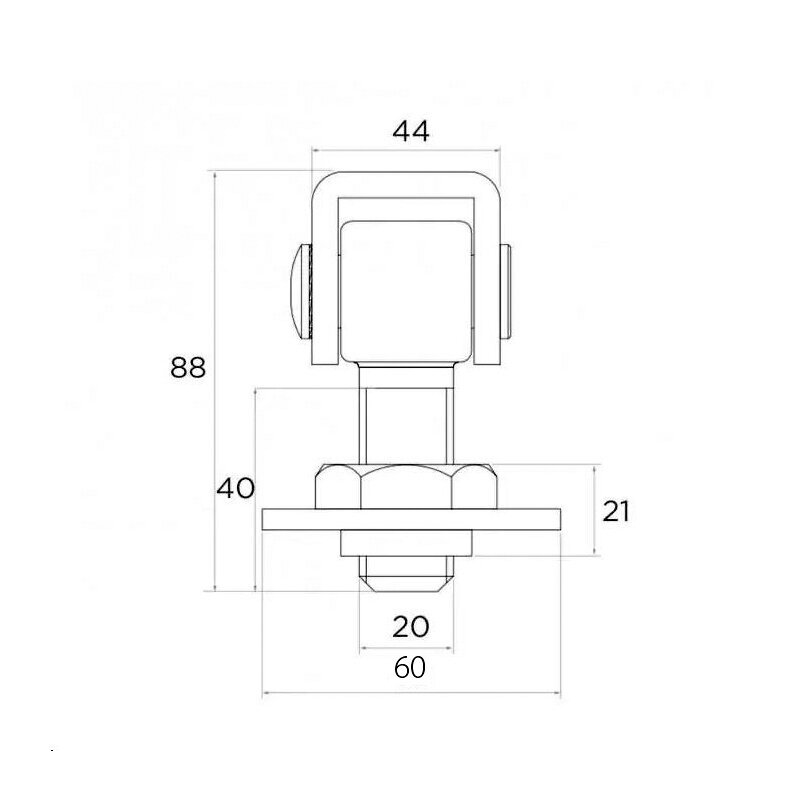

Technical Information:

• Code: 61.013
• Thread: M20
• Overall length: 88 mm
• Bolt length: 40 mm
• Eye width: 44 mm
• Material: Steel
• Eye finish: Black
• Installation type: Weld-on
• Adjustable construction

Applications:

• Swing gates
• Pedestrian gates
• Driveway gates
• Metal gate structures
• Industrial gate systems

Features:

• M20 thread provides convenient and precise adjustment
• Gate position can be corrected after installation
• Weld-on mounting provides a stable connection to the structure
• Strong steel construction is suitable for demanding applications
• Black eye finish provides a clean appearance
• Suitable for outdoor gate applications

Related Products:

• Adjustable Gate Hinges
• Gate Rollers
• Gate Locks
• Gate Components

Frequently Asked Questions:

Is this a weld-on hinge?
Yes. This hinge is designed to be welded directly to a metal gate or pedestrian gate structure.

Can the gate position be adjusted after installation?
Yes. The M20 threaded section allows the gate position to be corrected after the hinge has been installed.

Is this hinge suitable for outdoor gates?
Yes. The hinge construction is designed for gates and other metal structures used in outdoor applications.

What thread size does this hinge have?
This adjustable gate hinge has an M20 thread.
