Armrest bracket

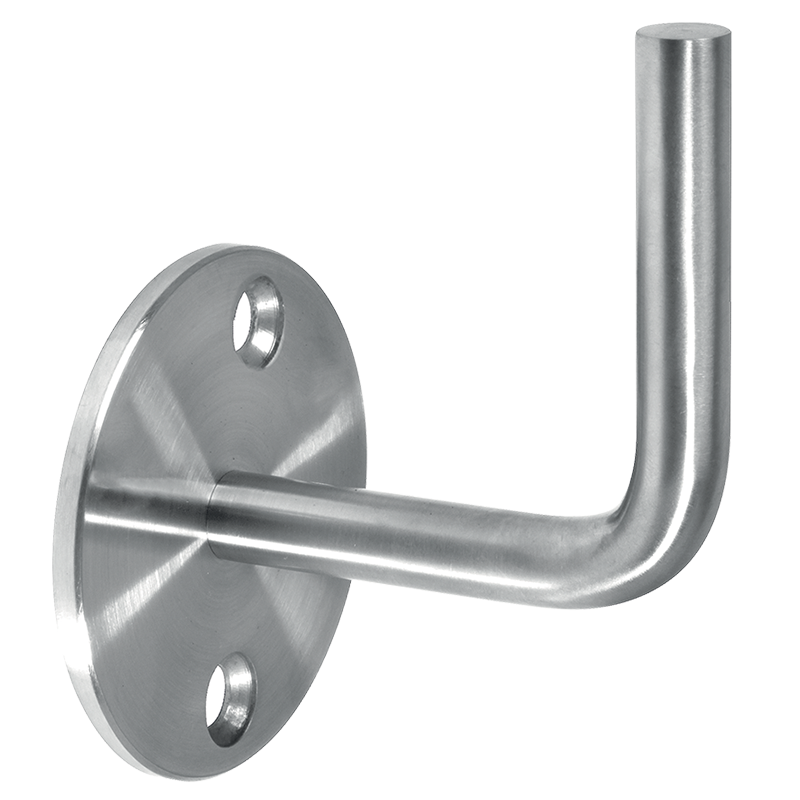

Wall-Mounted Handrail Bracket N05.0103.4US is designed to secure a handrail to a wall, with the handrail type selected according to the requirements of the specific railing system.

The bracket is made from AISI 304 stainless steel and has a satin finish that coordinates with other stainless steel railing components.

Technical information:

• Product code: N05.0103.4US
• Type: wall-mounted handrail bracket
• Handrail type: selectable
• Material: stainless steel
• Steel grade: AISI 304
• Finish: satin

Features:

• Helps secure a handrail to a wall
• Handrail type can be selected according to the railing system requirements
• AISI 304 stainless steel construction is suitable for railing systems
• Satin finish coordinates easily with other stainless steel components

Applications:

• Wall-mounted handrails
• Railing systems with a selectable handrail type
• Handrails for stairways, passageways and corridors
• Stainless steel railing structures

Installation:

Before installation, determine the bracket position and select a handrail solution suitable for the railing system.

Select the fixing elements according to the wall material and railing system requirements. Once installed, check that both the bracket and handrail are secure.

• Tubes and handrails

Frequently asked questions:

What type of handrail is bracket N05.0103.4US designed for?
The handrail type is selected according to the requirements of the specific railing system.

Where is this bracket installed?
The bracket is used to secure a handrail to a wall.

What material is the bracket made from?
It is made from AISI 304 stainless steel.

What finish does the bracket have?
The bracket has a satin finish.

How should the fixing elements be selected?
Choose them according to the wall material and the requirements of the specific railing system.
