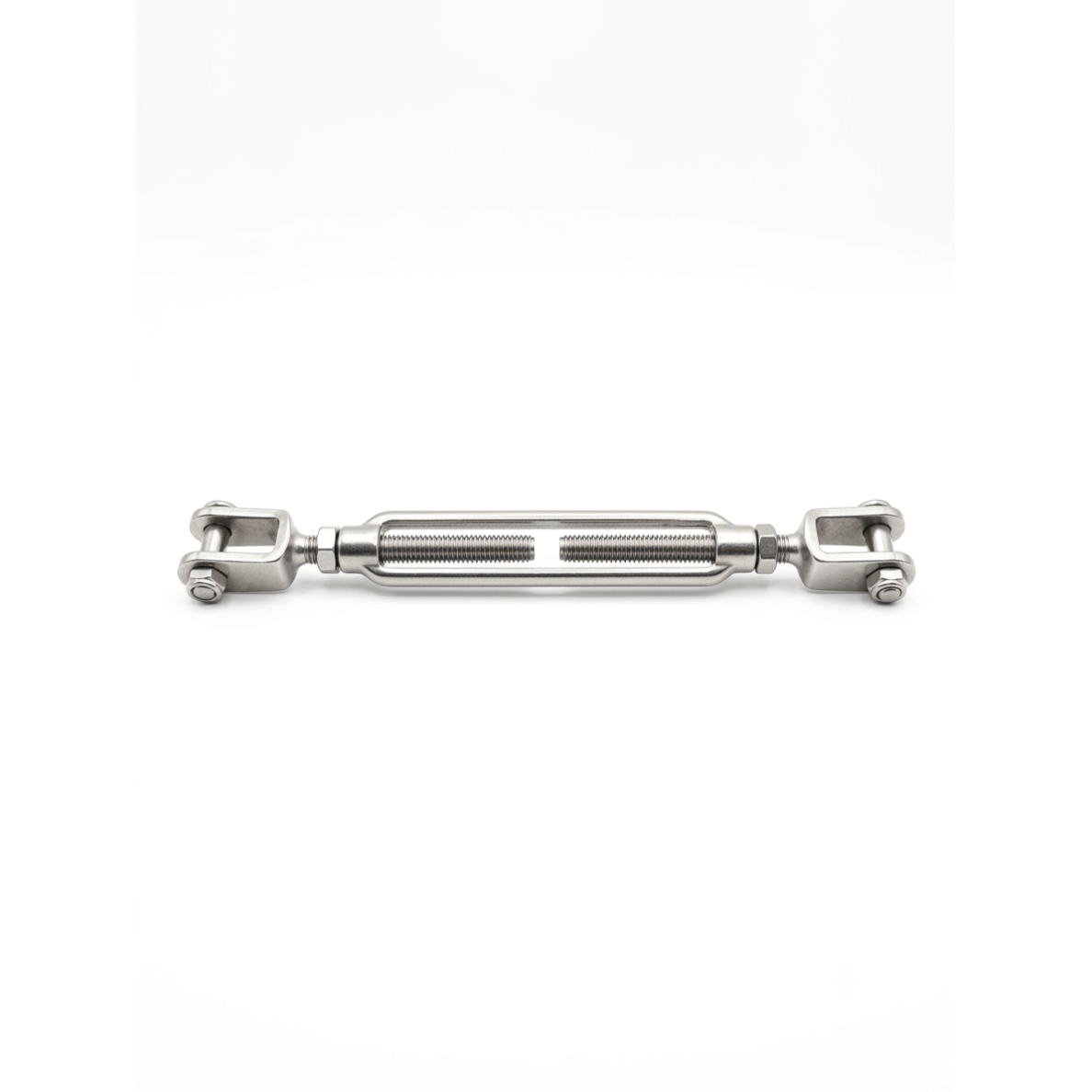

Cable Tensioner M8

Cable Tensioner TRO-5083 is a stainless steel adjustable cable tensioner designed for tensioning 4–6 mm stainless steel cable. It is a reliable component for cable railing systems where accurate cable tension adjustment and secure fixing are required.

The tensioner is made of AISI 316 stainless steel, providing high corrosion resistance and making it suitable for both indoor and outdoor use, including humid or more aggressive environments.

The adjustable construction allows cable tension to be easily corrected during installation and later maintenance. The fixing ends provide a stable connection with other cable railing system components.

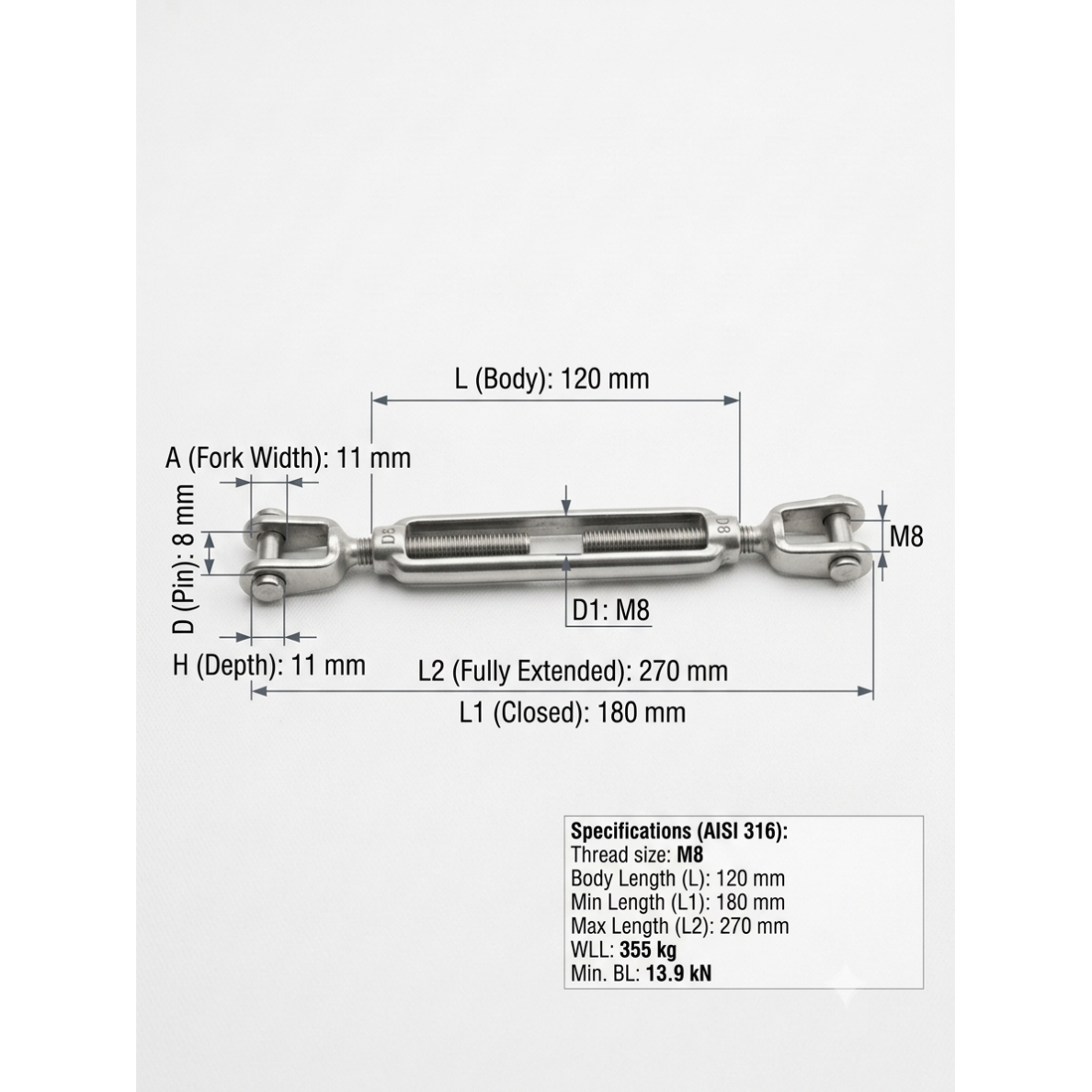

Technical information:

• Code: TRO-5083
• Suitable cable diameter: 4–6 mm
• Function: cable tensioning and adjustment
• Material: AISI 316 stainless steel
• Finish: satin

Applications:

• Cable railing systems
• Stair, balcony and terrace railings
• Architectural cable structures
• Indoor and outdoor installations
• More demanding environmental conditions

Features:

• Adjustable cable tensioning
• Suitable for 4–6 mm cable
• Made of AISI 316 stainless steel
• High corrosion resistance
• Strong and durable construction
• Satin surface finish
• Easy to combine with other cable railing components

Installation:

The cable tensioner is installed between fixing points and used to adjust cable tension. Tension is corrected by rotating the central tensioning body, allowing accurate adjustment during installation or later maintenance.

For more products in this system, visit the Screw-on Cable Components and Cable Mounting System categories.

Related products:

• Screw-on Cable Components
• Cable Mounting System

Frequently Asked Questions:

What cable diameter is this tensioner suitable for?
This model is suitable for 4–6 mm stainless steel cable.

Can the cable tension be adjusted?
Yes. The tensioner construction allows precise cable tension adjustment.

Why choose AISI 316 stainless steel?
AISI 316 stainless steel offers higher corrosion resistance and is suitable for outdoor and more demanding environments.

Can this tensioner be used outdoors?
Yes. AISI 316 stainless steel is suitable for outdoor applications.
