Climbing Plant Cable Holder

Climbing Plant Cable Holder is designed for stainless steel cable systems used to support climbing plants on building façades, walls and other vertical surfaces. The holder allows a strong and visually clean cable grid to be created, providing support for climbing plants as they grow and spread across the façade.

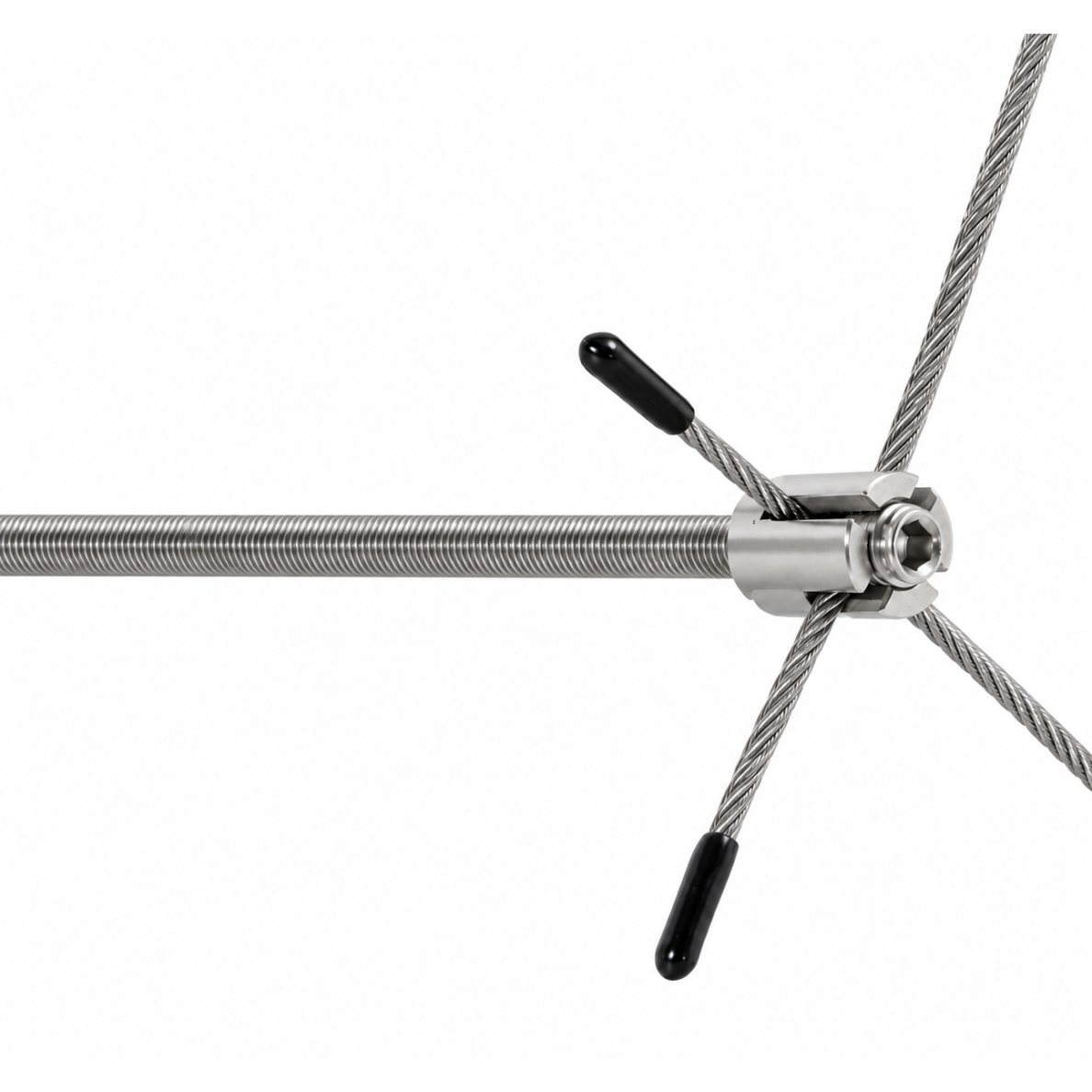

The holder is manufactured from AISI 304 stainless steel and supplied with an M12 × 330 mm threaded rod. The rod is fixed into the load-bearing wall structure using a chemical anchor, making its length particularly suitable for installation through external wall insulation. The standard distance of the cable system from the wall is approximately 100 mm.

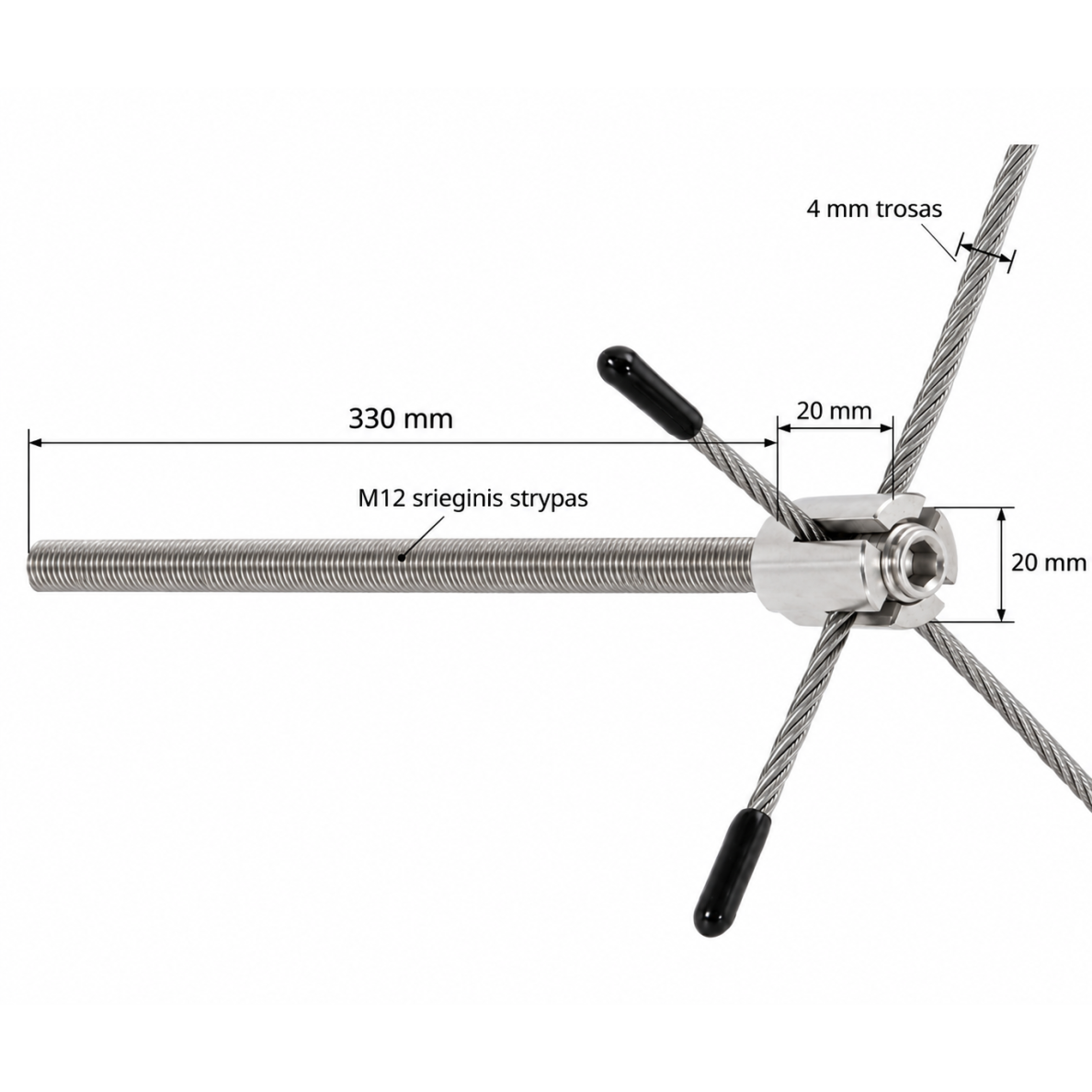

Technical Information

• Product code: TRO-5041
• Material: AISI 304 stainless steel
• Threaded rod: M12
• Threaded rod length: 330 mm
• Holder dimensions: Ø20 × 20 mm
• Suitable cable: Ø4 mm
• Standard distance from the wall: approximately 100 mm
• Fixing: to the wall using a chemical anchor
• Cable fixing: clamping screw

Applications

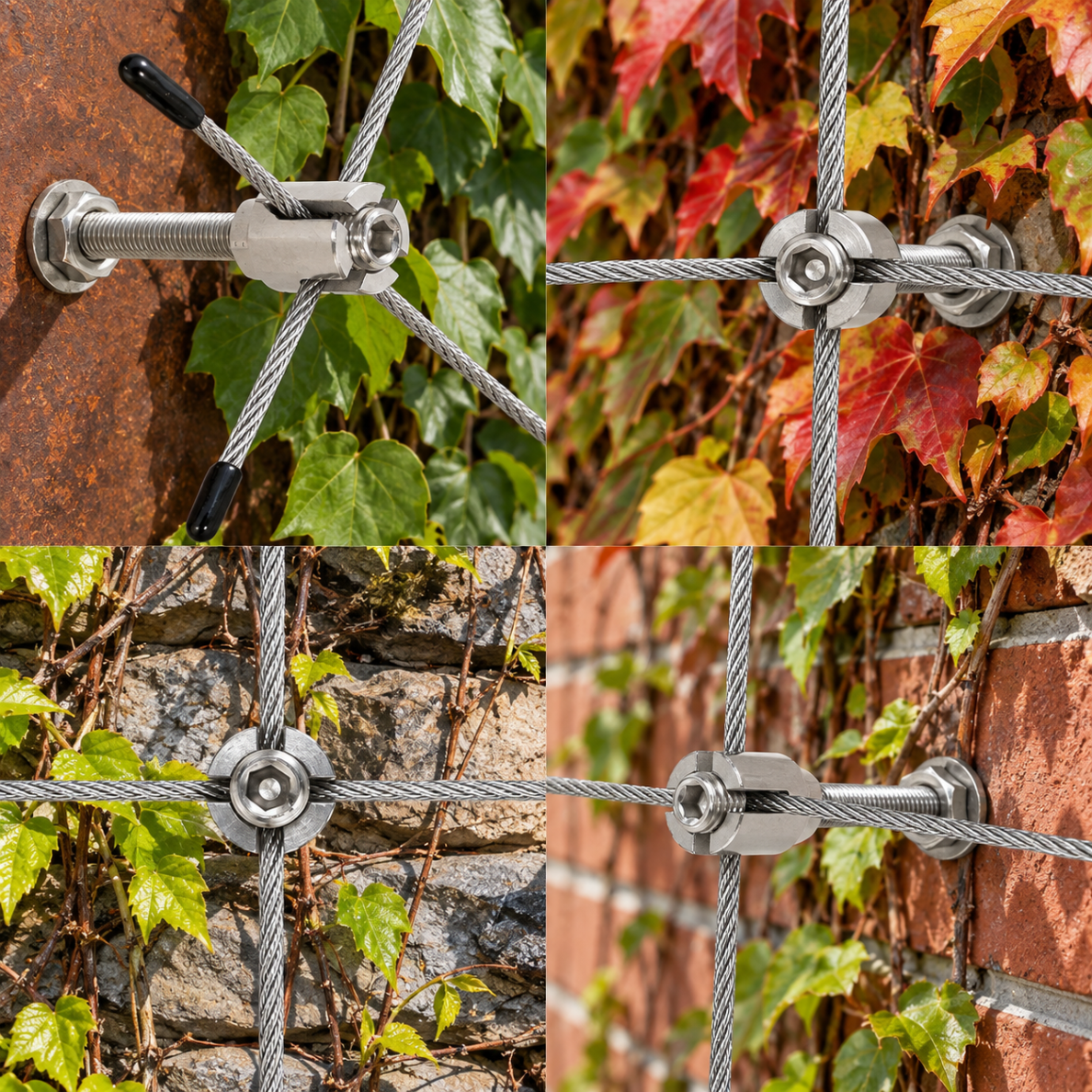

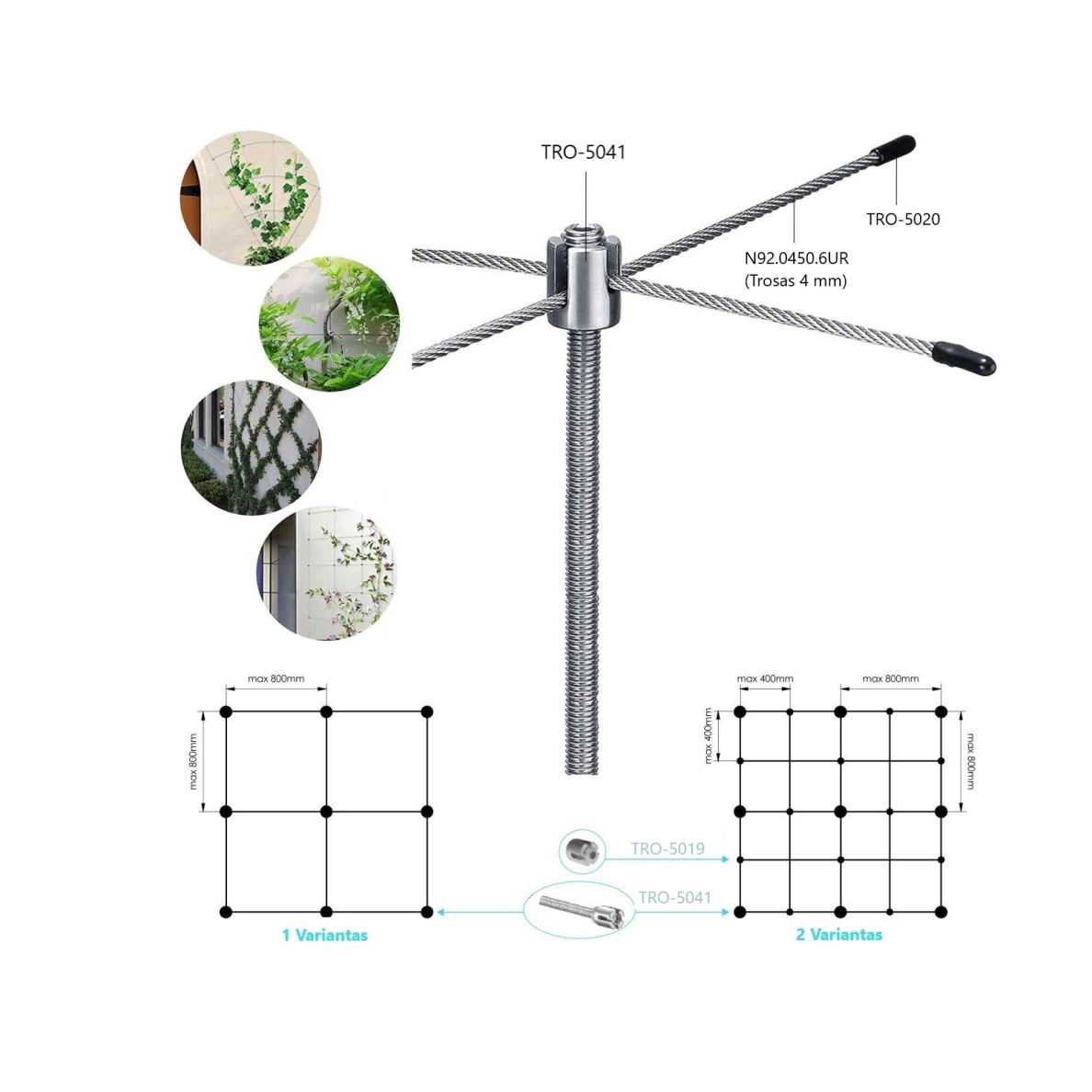

The holder is designed for climbing plant cable systems. Multiple holders and stainless steel cables can be used to create horizontal, vertical, crossed or other cable grid patterns for climbing plants.

The holder is suitable for residential, commercial and other building façades, walls and vertical structures where a cable support system for climbing plants needs to be installed at a distance from the surface.

Key Features

• Manufactured from AISI 304 stainless steel.
• Designed for Ø4 mm stainless steel cable.
• The clamping screw securely fixes the cable in the holder.

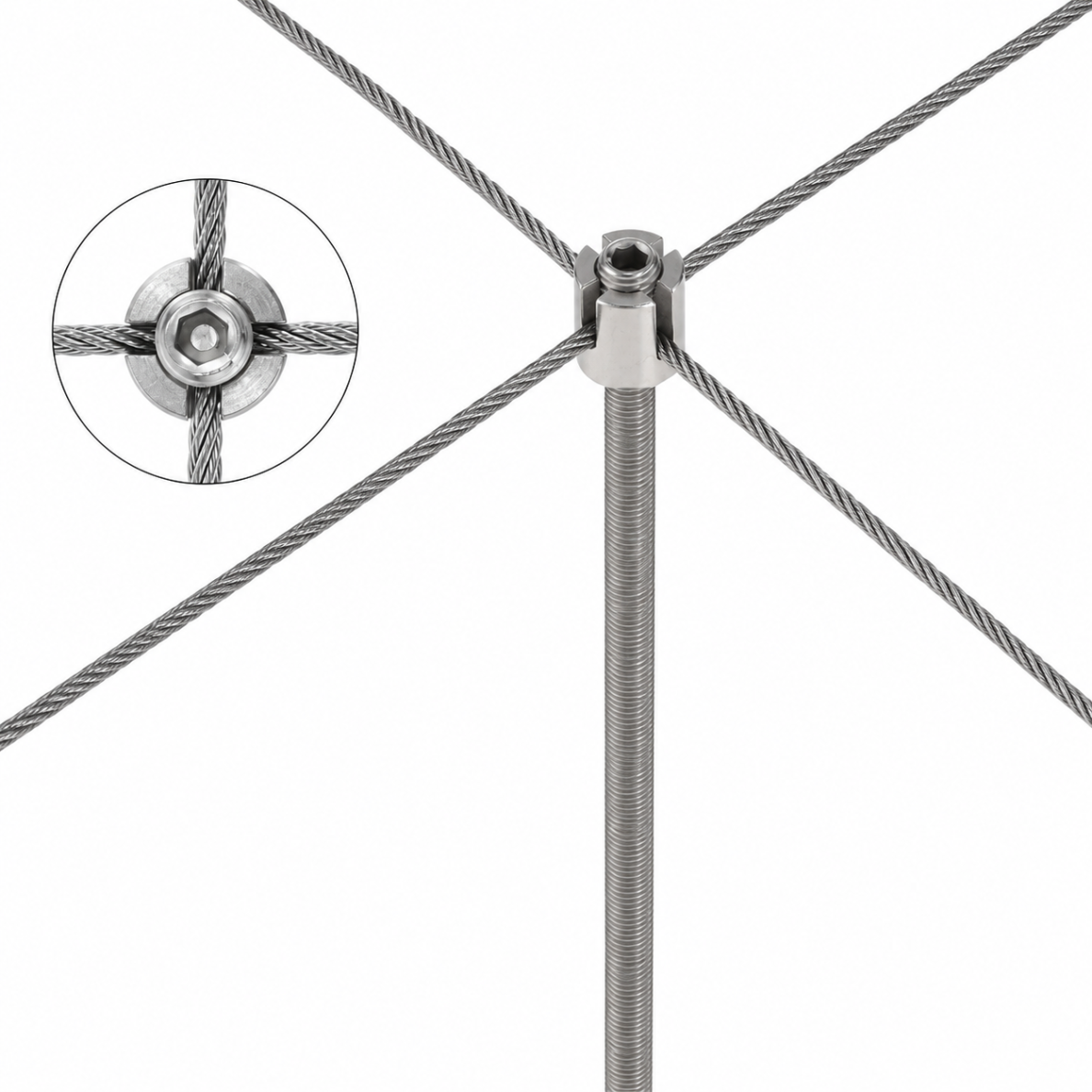

• Allows cables to be arranged in different directions to create various grid patterns.
• The M12 × 330 mm threaded rod allows installation through façade insulation into the load-bearing wall structure.
• Standard cable system distance from the wall is approximately 100 mm.
• A longer M12 threaded rod can be supplied on request for installations requiring greater fixing depth.

Installation

The M12 threaded rod is fixed into the load-bearing wall structure using a chemical anchor suitable for the substrate. When installing on an insulated façade, the fixing depth and insertion length of the threaded rod should be selected according to the insulation thickness and wall construction.

The Ø4 mm cable is positioned in the holder grooves and secured with the clamping screw. The system is normally installed with the cables approximately 100 mm from the wall. If a greater fixing depth is required, a longer M12 threaded rod can be used.

Related Products

To complete the climbing plant system, choose suitable stainless steel cables and other cable mounting system components. By combining different holders and fixing components, a climbing plant support system can be adapted to the individual façade design.

Frequently Asked Questions

What cable diameter is the holder designed for?
The holder is designed for Ø4 mm stainless steel cable.

What is the standard distance of the cable from the wall?
The standard distance of the climbing plant cable system from the wall is approximately 100 mm.

Why is a 330 mm threaded rod used?
The longer M12 threaded rod allows the holder to be installed through the façade insulation and securely fixed into the load-bearing wall structure.

Can the holder be supplied with a longer threaded rod?
Yes. If the façade construction or insulation thickness requires a greater fixing depth, the holder can be supplied with a longer M12 threaded rod.
