Fixing Set for Concrete (2 pcs.)

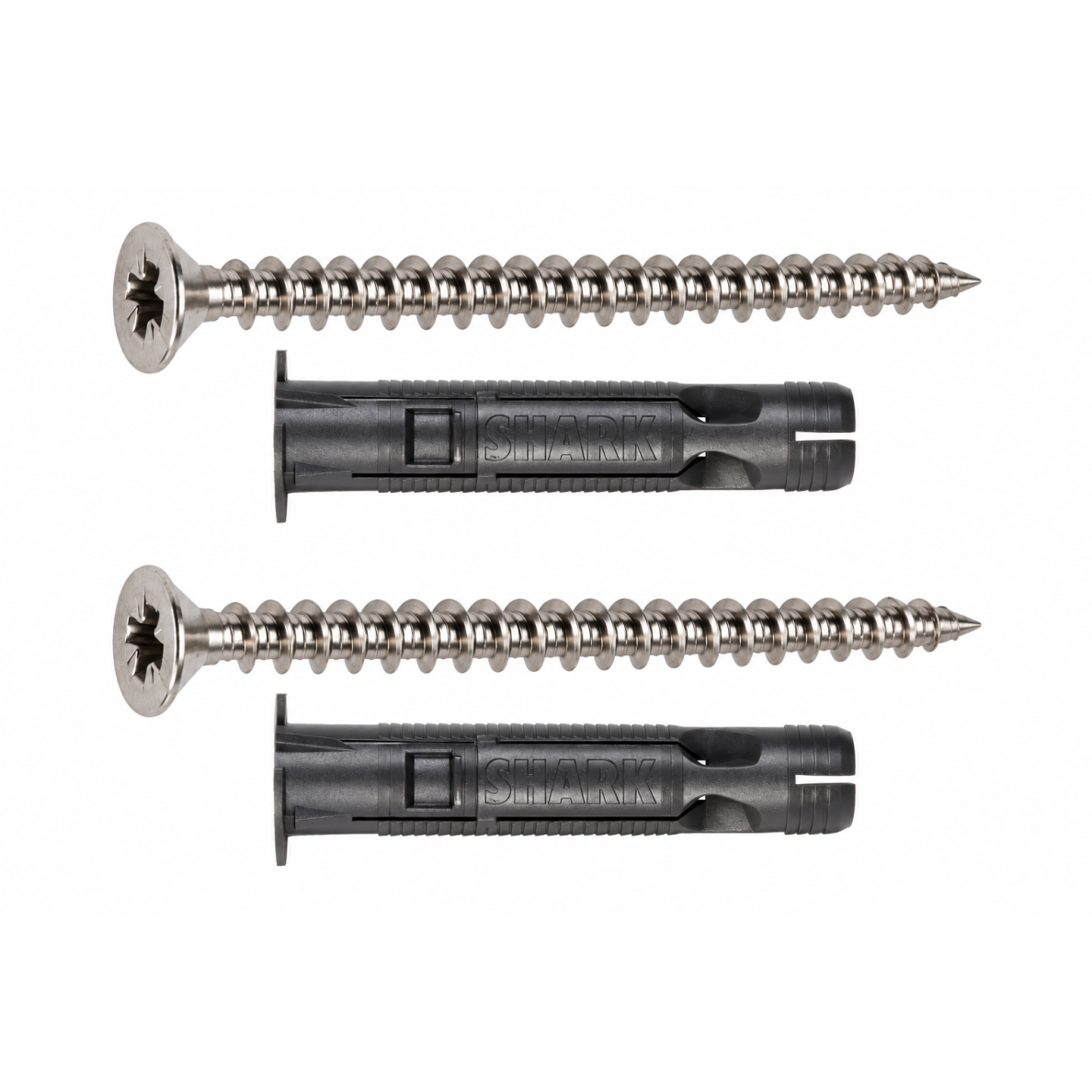

Concrete Fixing Set (2 pcs.) is designed for fixing railing components, wall-mounted handrail brackets, flag holders and other components to suitable mineral substrates. The set consists of 2 A2 (AISI 304) stainless steel 5×60 mm screws and 2 SHARK Pro 8×46 mm universal polyamide plugs.

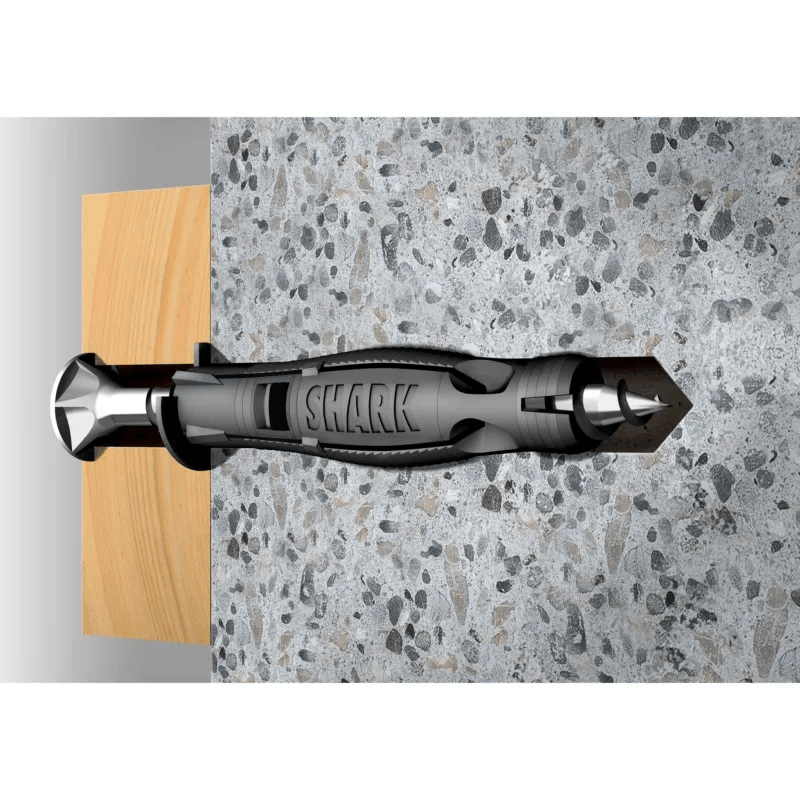

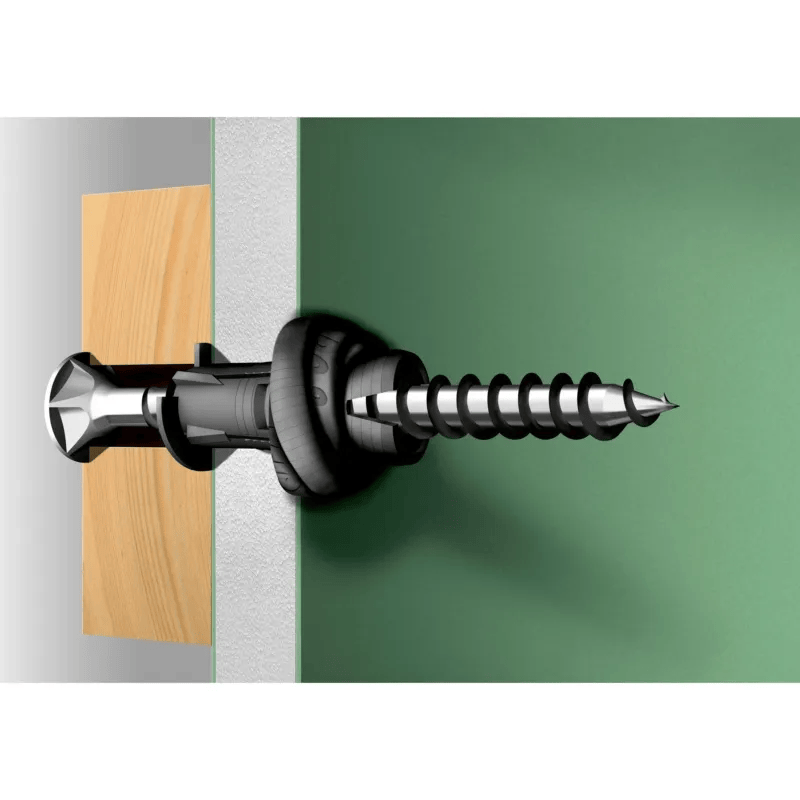

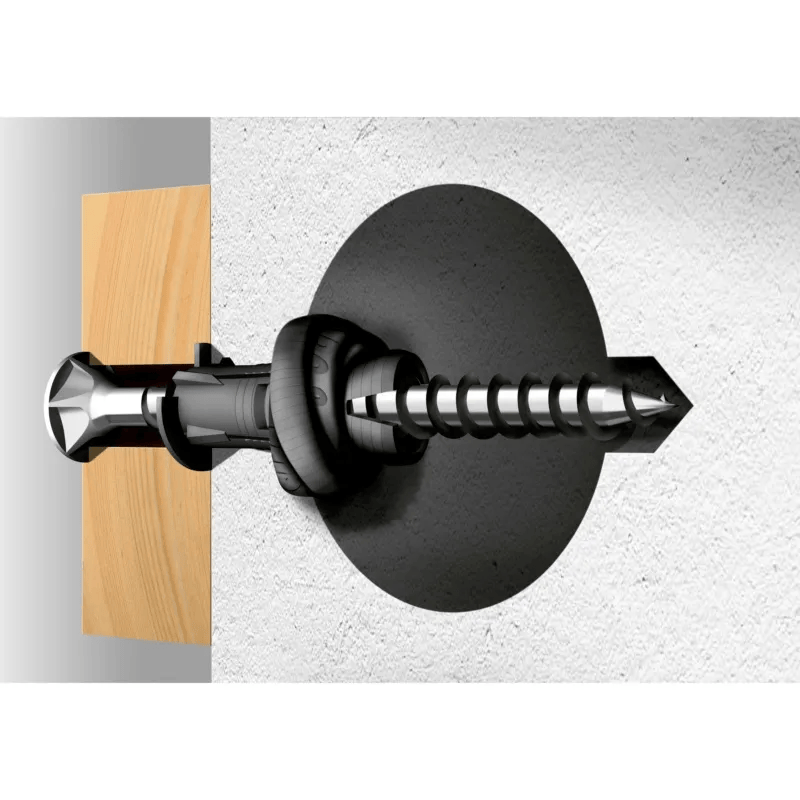

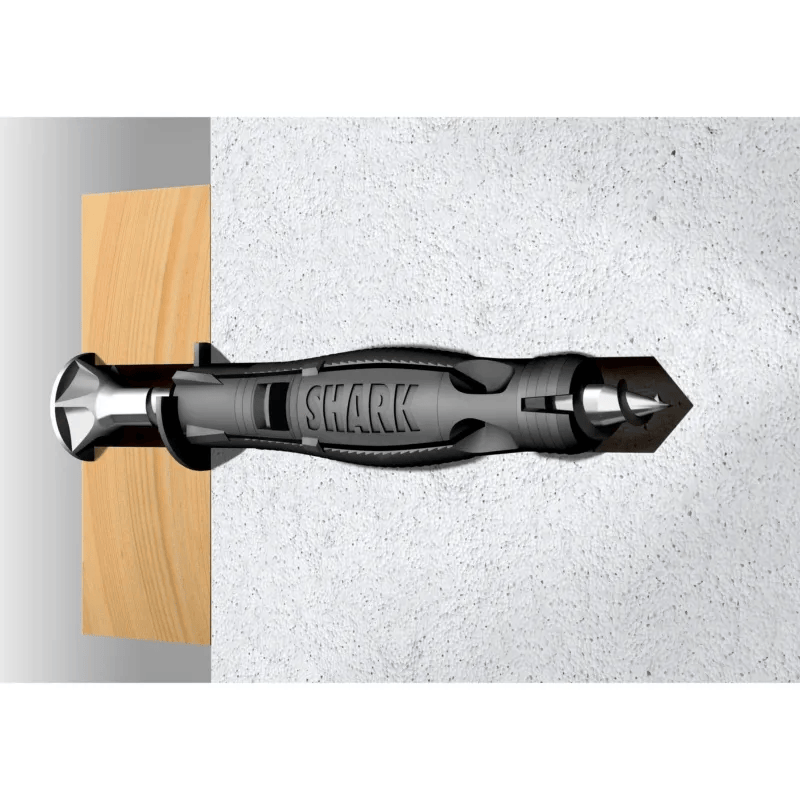

The screws and plugs are selected to work together as fixing assemblies. When the screws are driven in, the plugs expand or deform within the substrate, allowing the set to be used for various fixing applications in concrete, solid brick and other suitable substrates.

Technical Information

• Product code: TVI-5060-2
• Set includes: 2 screws + 2 plugs
• Screw size: 5 × 60 mm
• Screw material: A2 (AISI 304) stainless steel
• Plug: SHARK Pro
• Plug size: 8 × 46 mm
• Plug material: polyamide
• Application: fixing components to suitable mineral substrates

Applications

• Fixing flag holders
• Fixing wall-mounted handrail brackets
• Installing railing components
• Fixing other brackets and mounting components
• Fixing into concrete

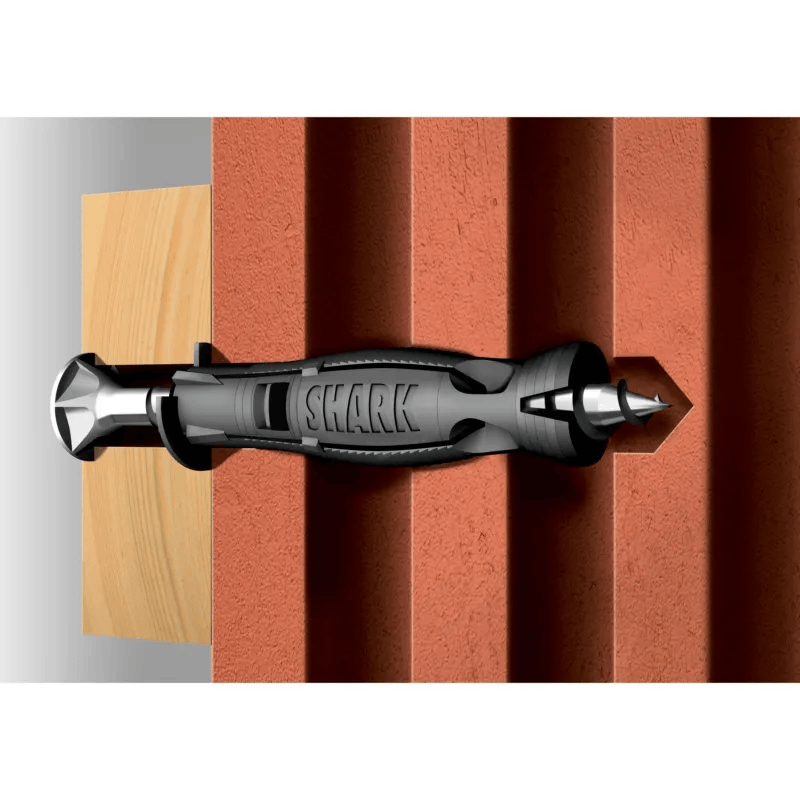

• Fixing into solid brick and other suitable substrates

Key Features

• Set includes 2 complete fixing assemblies
• A2 (AISI 304) stainless steel screws
• Universal SHARK Pro polyamide plugs
• Screws and plugs selected for use together
• Suitable for fixing various brackets and mounting components

Installation

Drill mounting holes suitable for the 8 mm plugs and insert the SHARK Pro plugs into the substrate. Position the component and drive the 5×60 mm A2 stainless steel screws through the mounting holes of the component into the plugs.

Before installation, consider the substrate material, thickness of the component being fixed and the expected load to ensure that this fixing method is suitable for the specific application.

Related Products

• Fixing into Concrete
• Fixing Elements
• Flag Holders

Frequently Asked Questions

What is included in the fixing set?
The set includes 2 A2 (AISI 304) stainless steel 5×60 mm screws and 2 SHARK Pro 8×46 mm polyamide plugs.

What is this fixing set used for?
The set is designed for fixing flag holders, wall-mounted handrail brackets, railing components and other products to a suitable substrate.

Is the fixing set suitable for concrete?
Yes. The SHARK Pro plugs can be used in concrete when installed according to the plug installation requirements.

Can the fixing set be used in brick?
Yes, the plugs can be used in suitable masonry substrates. The fixing method should be selected according to the type of brick, the component being fixed and the expected load.

Can the fixing set be used outdoors?
The A2 (AISI 304) stainless steel screws provide corrosion resistance. For outdoor installation, the specific environmental conditions and substrate should also be considered.
