Flange 42,4×100xx5mm

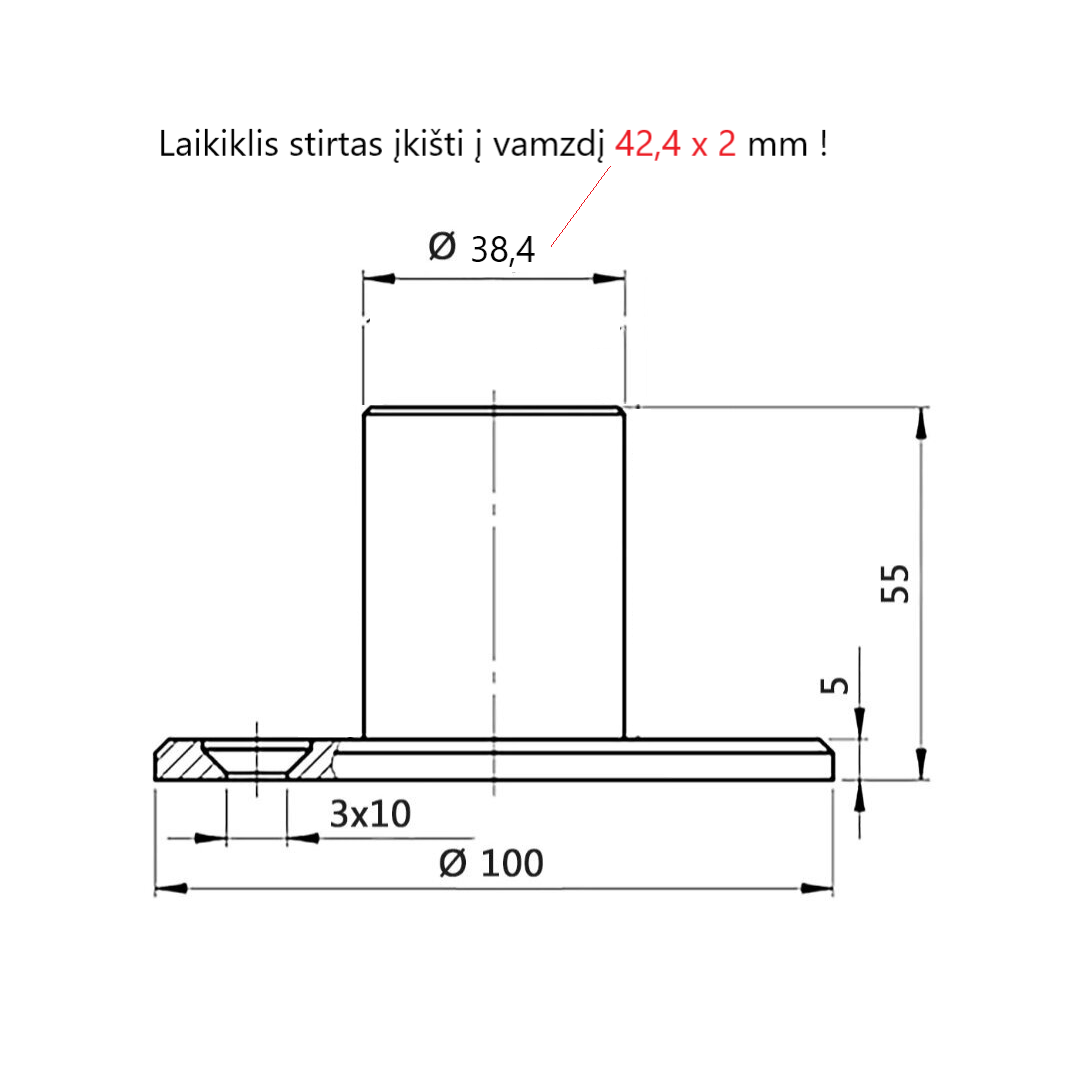

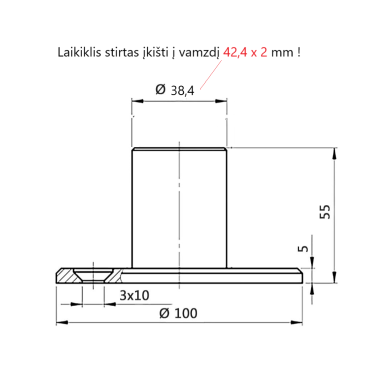

Railing Post Flange with Adapter Ø42.4 x 100 x 5 mm N21.0213.4BS is a stainless steel mounting plate designed for securing a Ø42.4 x 2 mm railing tube to a mounting base.

The adapter fits inside the tube, allowing the structure to be assembled without welding. The flange is manufactured from AISI 304 stainless steel and has a satin finish.

Technical Information:

• Product code: N21.0213.4BS
• Product type: railing post mounting flange with adapter
• Suitable tube size: Ø42.4 x 2 mm
• Flange outer diameter: 100 mm
• Flange thickness: 5 mm
• Material: AISI 304 stainless steel
• Finish: satin
• Connection: adapter fits inside the tube
• Fixing openings: three round holes

Features:

• Designed for a Ø42.4 x 2 mm railing tube
• Adapter construction eliminates the need for welding
• Three holes are provided for securing the flange to a mounting base
• The flange can be concealed with a compatible decorative cover
• AISI 304 stainless steel offers corrosion resistance and durability

Applications:

• Mounting a Ø42.4 x 2 mm railing post
• Connecting a railing post to a mounting base without welding
• Stainless steel railing structures
• New and renovated railing systems

Installation:

Before installation, confirm that the adapter is compatible with the Ø42.4 x 2 mm tube. Insert the adapter into the tube and align the railing post accurately with the flange.

Secure the flange to the mounting base through its three round holes, selecting fixing components according to the base material and railing system requirements. The mounting area can be concealed with a compatible decorative cover.

• Railing posts

Frequently Asked Questions:

What tube is this flange designed for?
The flange with adapter is designed for a Ø42.4 x 2 mm tube.

What are the dimensions of the flange?
The flange has an outer diameter of 100 mm and a thickness of 5 mm.

What material is the flange made from?
It is manufactured from AISI 304 stainless steel and has a satin finish.

Is welding required during installation?
No, the adapter fits inside the Ø42.4 x 2 mm tube, eliminating the need for welding.

Can the flange mounting area be concealed?
Yes, the flange can be covered with a compatible decorative cover.
