Flange D42,4x100x4 mm

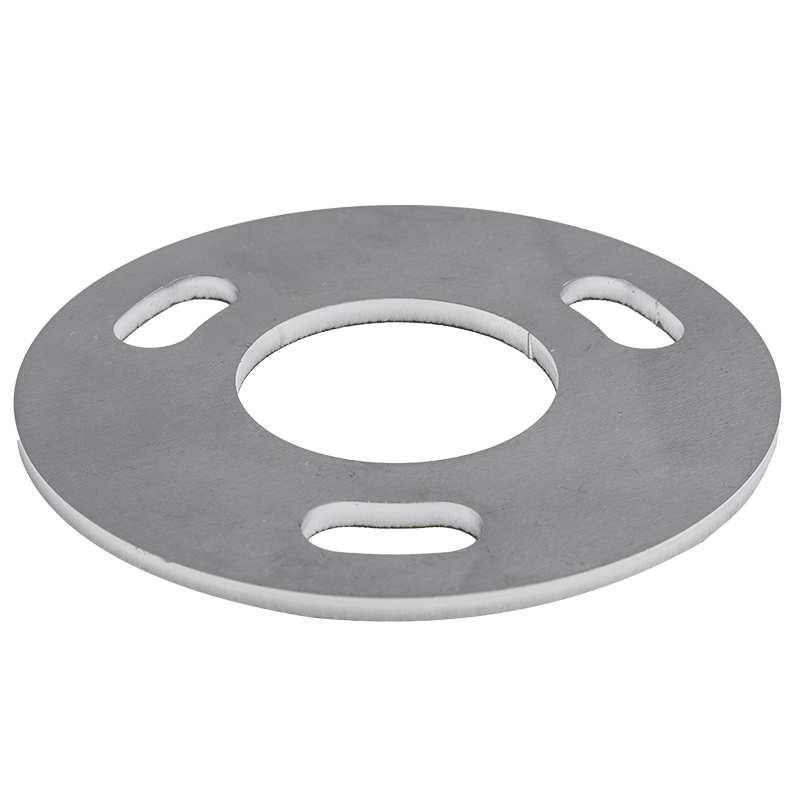

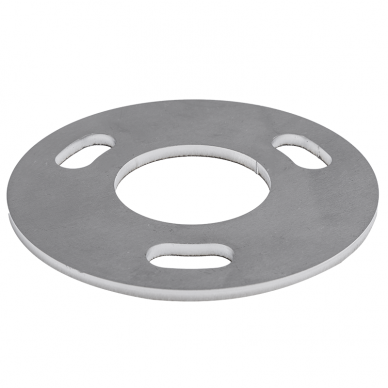

Post Flange Ø42.4 x 100 x 4 mm N21.0203.4BR is a round mounting plate designed to be welded to a Ø42.4 x 2 mm railing post and secured to a mounting base.

Manufactured from AISI 304 stainless steel, the flange has an unpolished surface and three elongated fixing slots. Its 100 mm outer diameter provides a base for stable post installation.

Technical Information:

• Product code: N21.0203.4BR
• Product type: railing post mounting flange
• Suitable post size: Ø42.4 x 2 mm

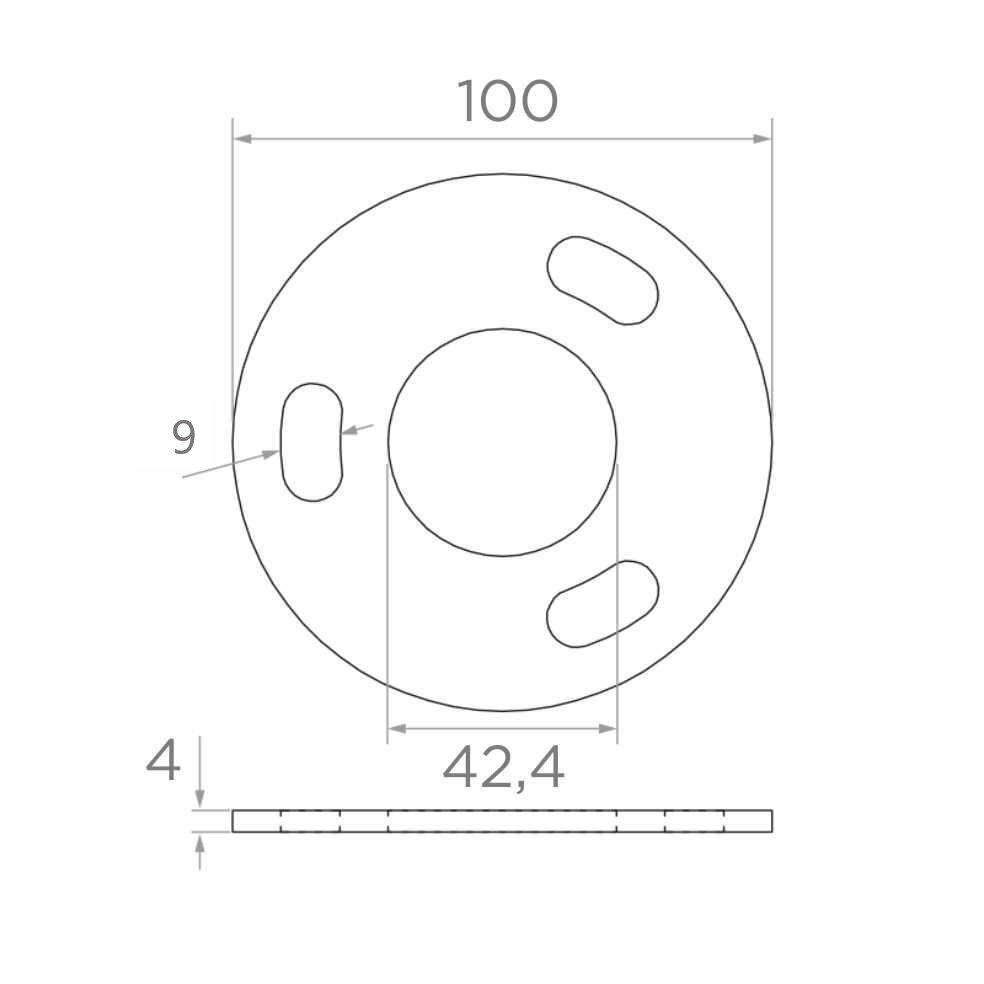

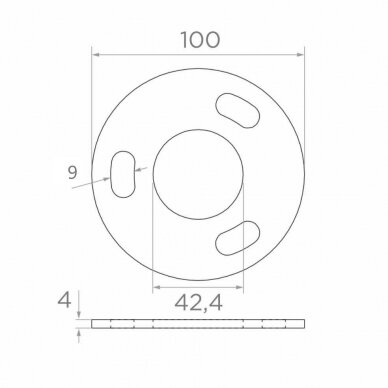

• Flange dimensions: Ø100 x 4 mm
• Material: AISI 304 stainless steel
• Finish: unpolished
• Connection: welded
• Fixing openings: three elongated slots

Features:

• Designed for a Ø42.4 x 2 mm round railing post
• Welded connection joins the post to the flange
• Three elongated slots are provided for securing the flange to a mounting base
• 100 mm outer diameter helps provide a stable mounting base
• AISI 304 stainless steel offers corrosion resistance and durability

Applications:

• Mounting a Ø42.4 x 2 mm round railing post
• Connecting a railing post to a mounting base
• Welded stainless steel railing structures
• New and renovated railing systems

Installation:

The flange is designed to be welded to a Ø42.4 x 2 mm railing post. Before installation, confirm that the post and flange are compatible and align both components accurately.

Secure the flange to the mounting base through its three elongated slots, selecting fixing components according to the base material and railing system requirements. Check the stability of the post after installation.

• Railing posts

Frequently Asked Questions:

What post is this flange designed for?
The flange is designed for a Ø42.4 x 2 mm round railing post.

What are the dimensions of the flange?
The flange has an outer diameter of 100 mm and a thickness of 4 mm.

What material is the flange made from?
It is manufactured from AISI 304 stainless steel.

What finish does the flange have?
The flange has an unpolished surface.

How many fixing openings does the flange have?
The flange has three elongated fixing slots.
