Flange D42.4x100 mm

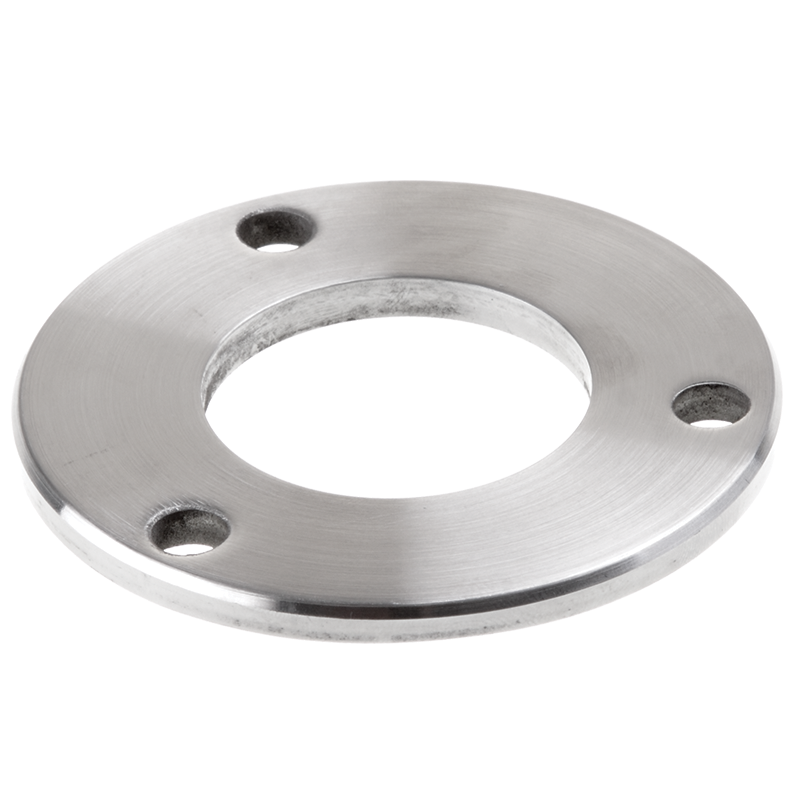

Post Flange Ø42.4 x 100 mm N21.0203.4BS is a round mounting plate designed to be welded to a Ø42.4 x 2 mm railing post and secured to a mounting base.

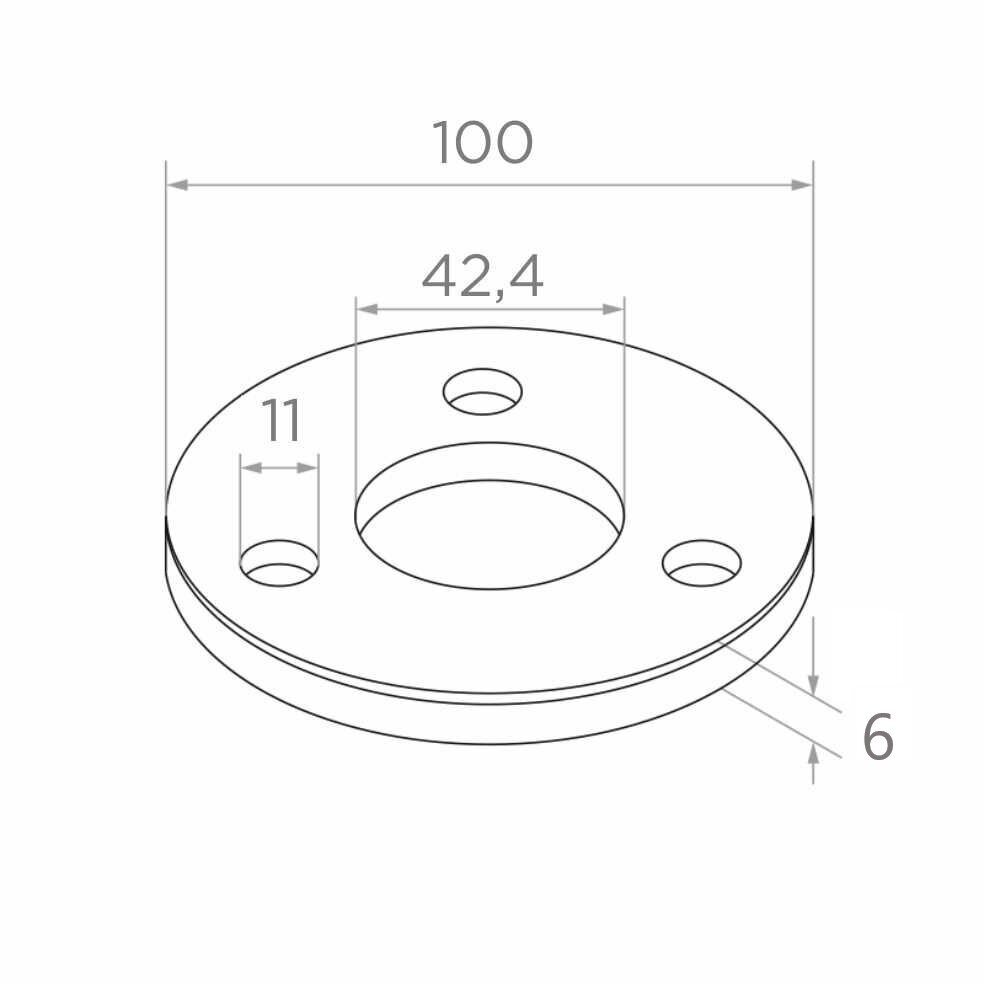

Manufactured from AISI 304 stainless steel, the flange has a satin finish. Its 100 mm outer diameter, 6 mm thickness and three fixing holes help provide stable post installation.

Technical Information:

• Product code: N21.0203.4BS
• Product type: railing post mounting flange
• Suitable post size: Ø42.4 x 2 mm
• Outer diameter: 100 mm
• Thickness: 6 mm
• Material: AISI 304 stainless steel
• Finish: satin
• Connection: welded
• Fixing openings: three round holes

Features:

• Designed for a Ø42.4 x 2 mm round railing post
• Welded connection joins the post to the flange
• Three holes are provided for securing the flange to a mounting base
• 100 mm diameter and 6 mm thickness help provide stable post support
• Satin finish complements stainless steel railing components

Applications:

• Mounting a Ø42.4 x 2 mm round railing post
• Connecting a railing post to a mounting base
• Welded stainless steel railing structures
• New and renovated railing systems

Installation:

The flange is designed to be welded to a Ø42.4 x 2 mm railing post. Before installation, confirm that the post and flange are compatible and align both components accurately.

Secure the flange to the mounting base through its three round holes, selecting fixing components according to the base material and railing system requirements. Check the stability of the post after installation.

• Railing posts

Frequently Asked Questions:

What post is this flange designed for?
The flange is designed for a Ø42.4 x 2 mm round railing post.

What are the dimensions of the flange?
The flange has an outer diameter of 100 mm and a thickness of 6 mm.

What material is the flange made from?
It is manufactured from AISI 304 stainless steel.

What finish does the flange have?
The flange has a satin finish.

How is the flange connected to the post?
The flange is welded to the Ø42.4 x 2 mm railing post.
