Glass Canopy Brackets (RAL-7016)

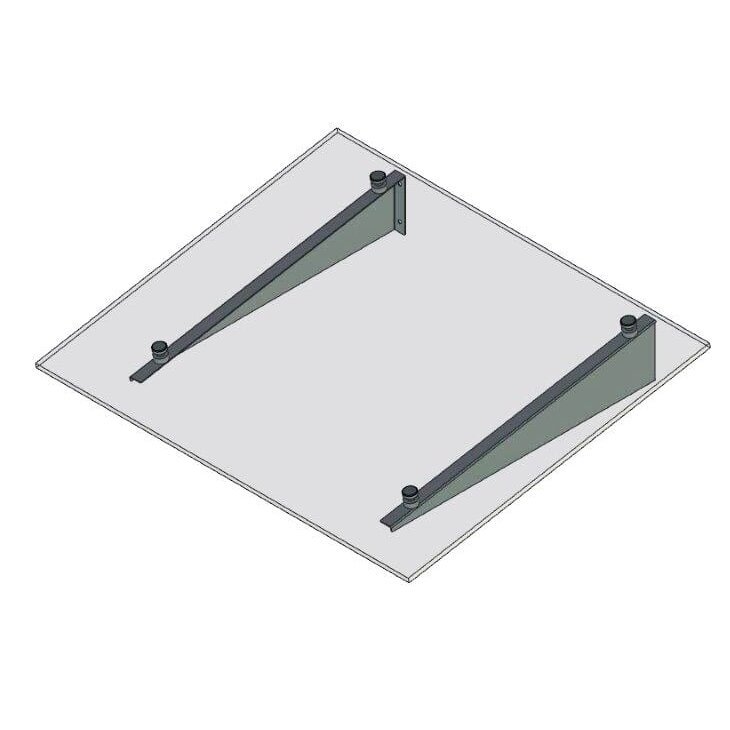

Glass Canopy Bracket Set STO-1508 (RAL 7016) is a complete set of grey powder-coated stainless steel brackets designed for secure glass canopy installations. The kit includes left and right support brackets together with glass adapters.

The brackets are manufactured from high-quality AISI 304 stainless steel and finished with a durable grey powder coating (RAL 7016). They are suitable for tempered or laminated glass from 8 to 12.76 mm thick, making them ideal for modern entrance and terrace canopies.

Technical Information:

• Product code: STO-1508
• Product type: glass canopy bracket set

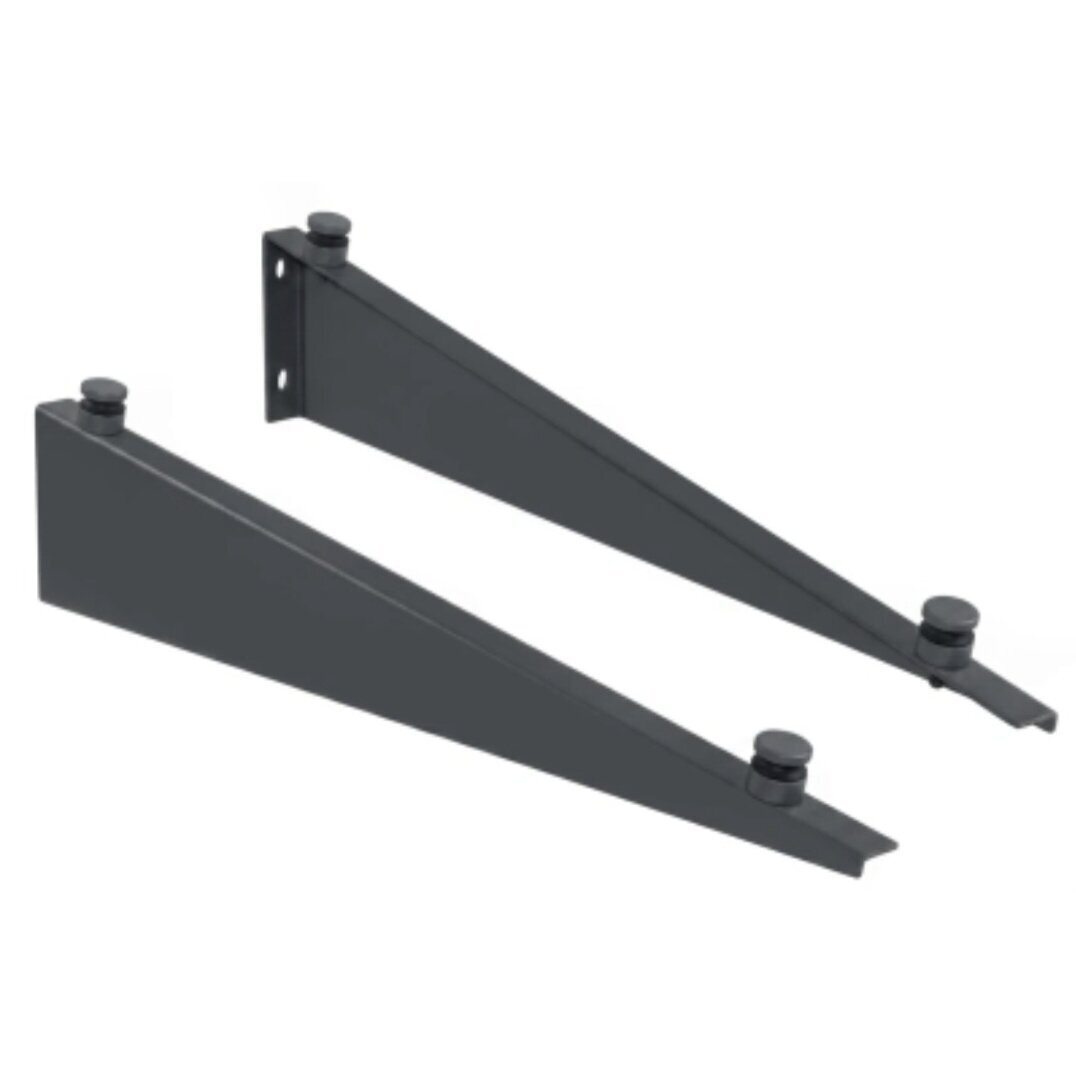

• Set includes: 2 brackets (left and right)

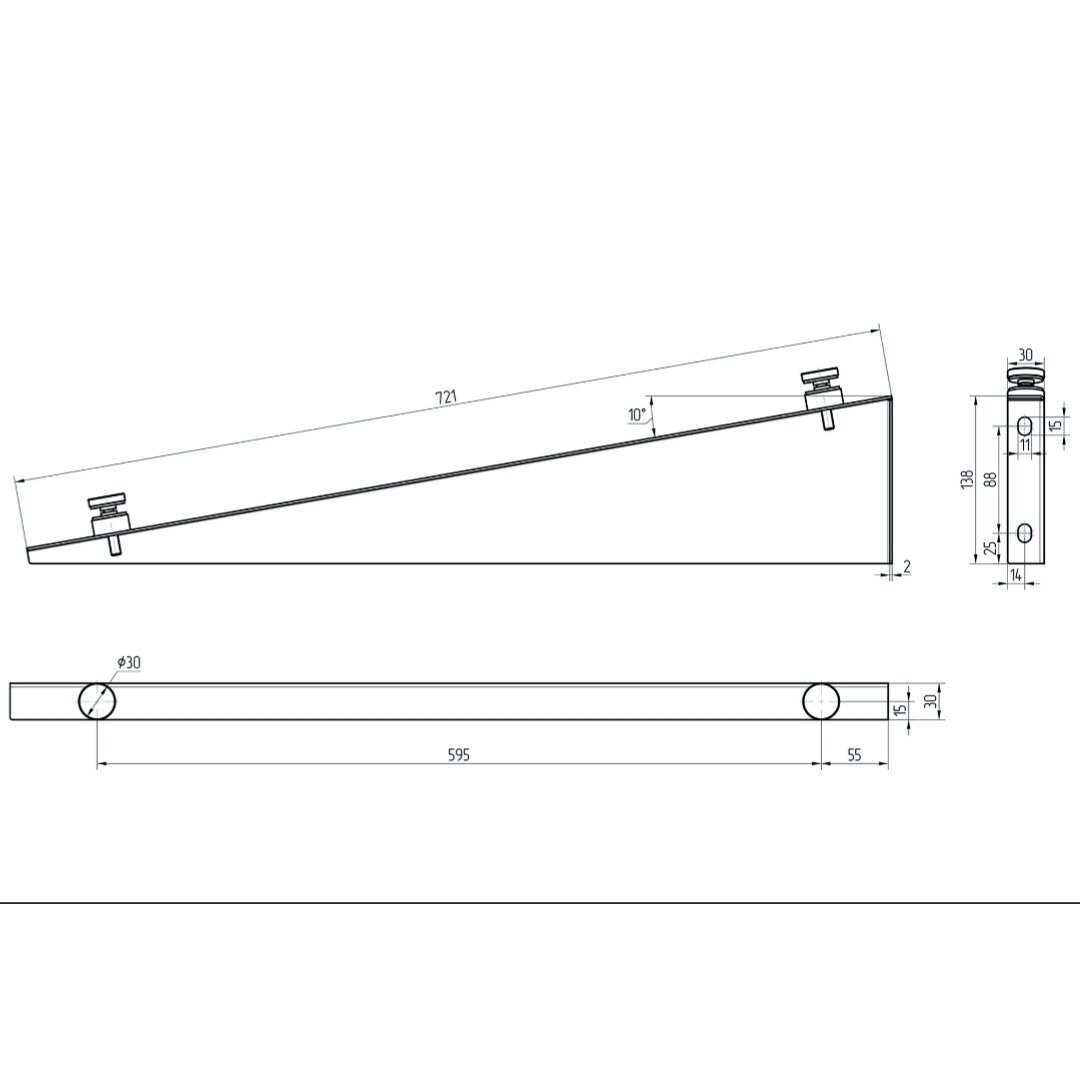

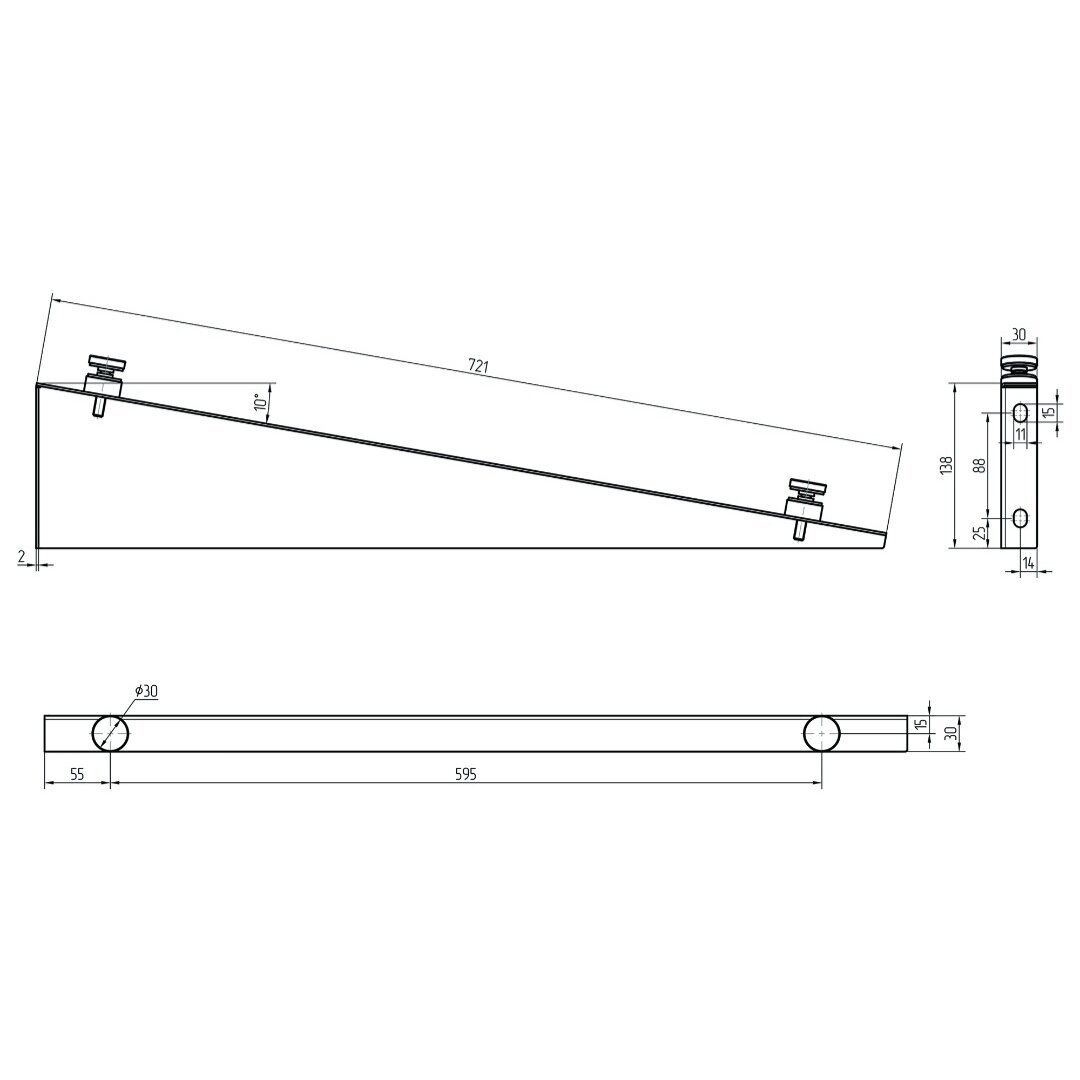

• Bracket length: 711 mm
• Suitable glass thickness: 8–12.76 mm

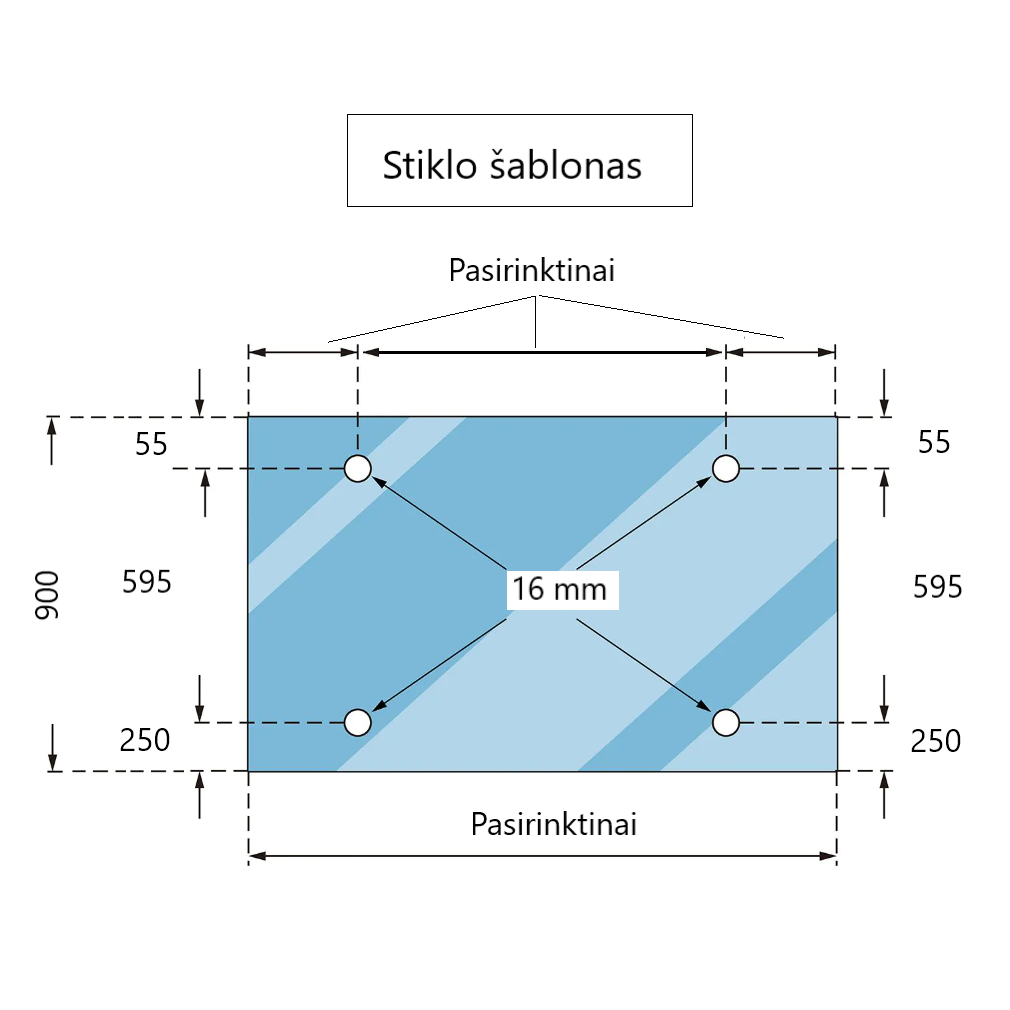

• Recommended glass hole diameter: Ø16 mm
• Glass adapters: Ø30 mm, 15 mm offset from the glass edge
• Metal thickness: 2 mm
• Material: AISI 304 stainless steel
• Finish: grey powder coating (RAL 7016)
• Mounting holes: 2 × Ø9 mm
• Distance between mounting holes: 88 mm

Features:

• Complete set with left and right support brackets.
• Manufactured from corrosion-resistant AISI 304 stainless steel.
• Durable grey powder-coated finish (RAL 7016).
• Suitable for outdoor applications.
• Includes all required glass adapters.
• Strong construction ensures safe and reliable canopy support.

Applications:

• Entrance glass canopies.
• Terrace and balcony canopies.
• Residential and commercial buildings.
• Modern architectural glass structures.

Installation:

Before installation, ensure the supporting wall is capable of carrying the required load and that the glass panel has been drilled according to the recommended specifications. Installation should follow the canopy design and manufacturer's instructions.

Frequently Asked Questions:

Does the set include both brackets?
Yes. The kit includes both left and right support brackets.

What glass thickness is supported?
The brackets are suitable for glass thicknesses from 8 to 12.76 mm.

Is the grey finish suitable for outdoor use?
Yes. The RAL 7016 powder coating combined with AISI 304 stainless steel provides excellent durability for outdoor installations.

Are the glass adapters included?
Yes. The kit includes four Ø30 mm glass adapters.
