Rod elbow D12

Rod Elbow for Ø12 mm Rod N14.0712.4US – a stainless steel connecting component designed for joining two Ø12 mm infill rods and changing their direction within a railing structure. The elbow provides a neat and professional rod connection on staircases, railing turns and other angled sections.

The rod elbow is manufactured from AISI 304 stainless steel and has a satin finish. Its glued connection helps maintain a clean appearance without visible external fasteners. The component is suitable for indoor and standard outdoor stainless steel railing systems.

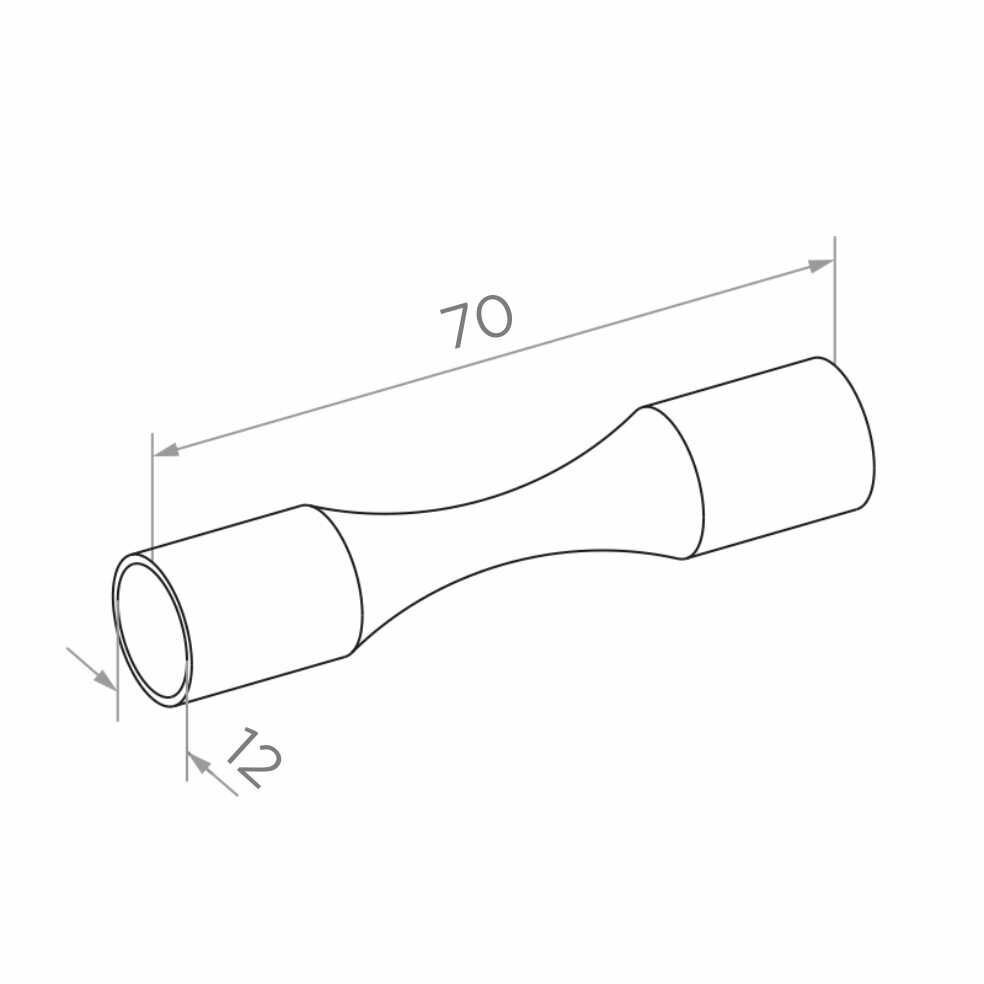

Technical Information:

• Code: N14.0712.4US
• Suitable for rod: Ø12 mm
• Connection: Glued
• Material: AISI 304 stainless steel
• Finish: Satin
• Application: Connecting infill rods and changing their direction

Features:

• Designed for Ø12 mm stainless steel infill rods.
• Suitable for joining rods in angled railing sections.
• Glued installation without visible external screws.
• Durable AISI 304 stainless steel construction.
• Professional satin finish.
• Compact and visually clean connection.
• Suitable for indoor and standard outdoor railing systems.

Applications:

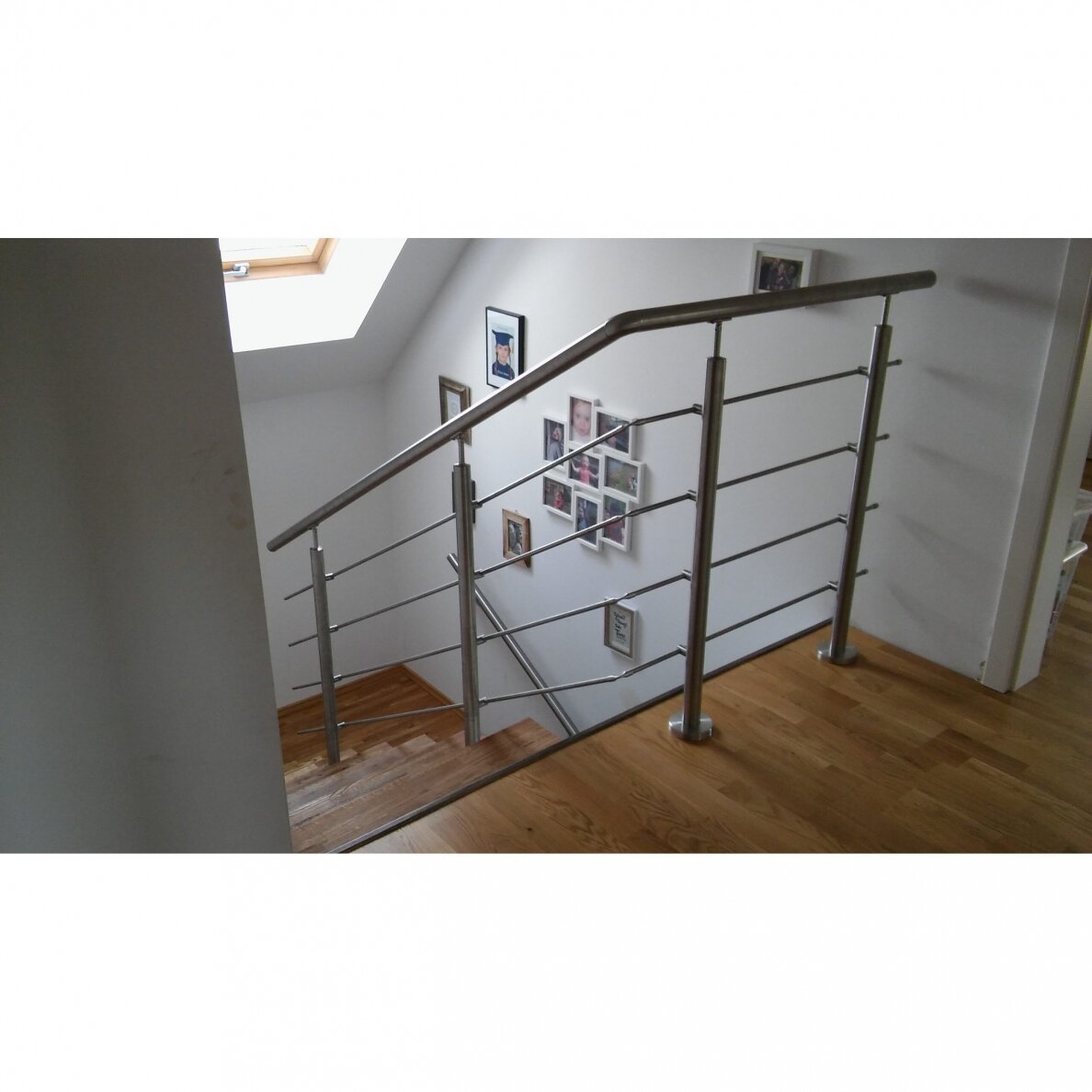

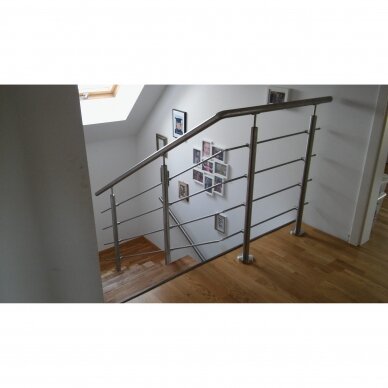

This rod elbow is used in stainless steel railing systems where two Ø12 mm horizontal infill rods must be connected and their direction changed. It is suitable for stair railings, balconies, terraces, railing turns and other structures where a straight rod connection cannot be used.

Installation:

The ends of the elbow are inserted into the prepared Ø12 mm rods and secured with a structural adhesive suitable for stainless steel. The connecting surfaces should be cleaned and degreased before bonding. Correct installation provides a stable, durable and visually neat connection.

Related products:

For this elbow, we recommend other rod elbows and connectors, rod holders, rod end caps and the complete range of stainless steel rod elements.

Frequently Asked Questions:

Which rod diameter is this elbow designed for?
It is designed for Ø12 mm stainless steel infill rods.

What is this rod elbow used for?
It is used to connect two rods and change their direction on staircases, railing turns and other angled sections.

How is the elbow fixed to the rods?
The elbow is inserted into the rod ends and secured using a structural adhesive suitable for stainless steel.

Are screws required for installation?
No. This elbow uses a glued connection, so no external fixing screws remain visible.

Is it suitable for outdoor use?
Yes. AISI 304 stainless steel is suitable for most standard outdoor environments. AISI 316 components are recommended for coastal or highly corrosive conditions.

Can it be used on stair railings?
Yes. It is especially useful where the infill rod direction must follow the slope or turn of a staircase railing.
