Wall Handrail Bracket Ø42.4

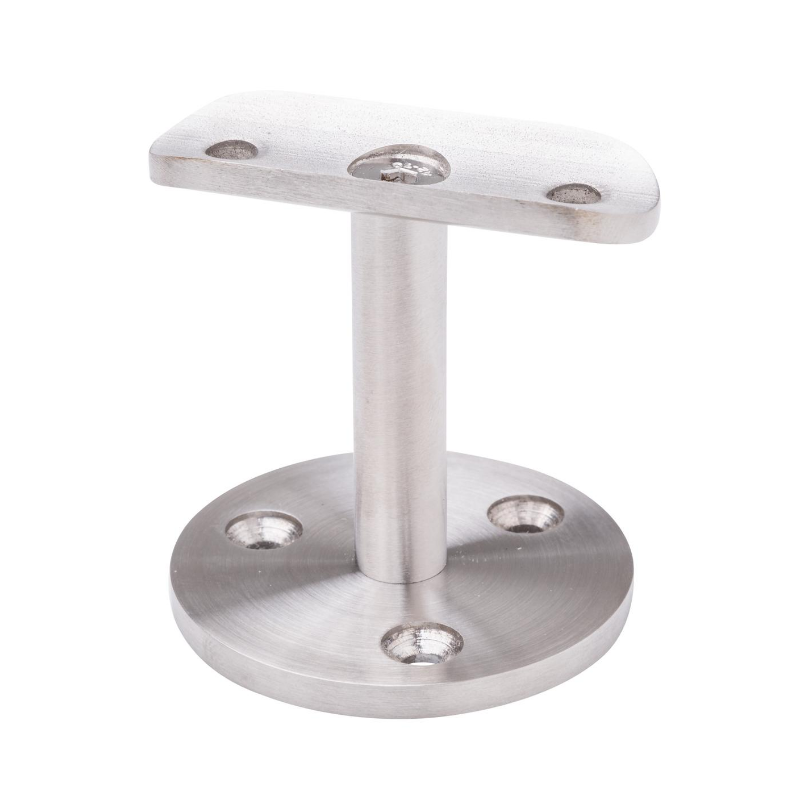

Wall Handrail Bracket D42.4 N05.0500.4BS is a stainless steel wall-mounted handrail bracket designed for Ø42.4 mm round handrails. It provides secure support for fixing a handrail to a wall or another solid surface while ensuring a clean and professional appearance.

The bracket is manufactured from AISI 304 stainless steel with a satin finish, offering excellent corrosion resistance, durability and long service life. It is suitable for both new installations and renovation projects in indoor and standard outdoor environments.

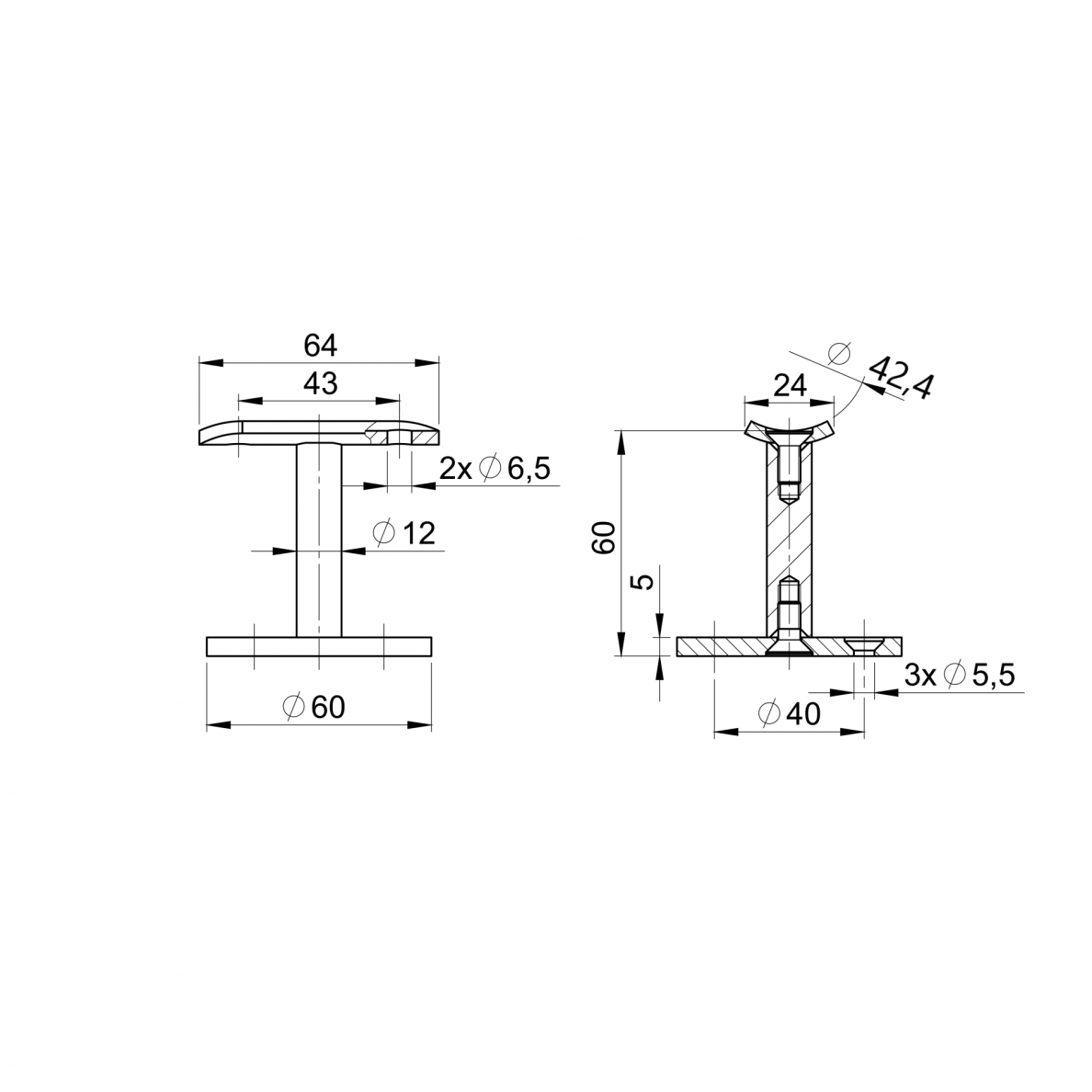

Technical information:

• Product code: N05.0500.4BS
• Suitable for handrail: Ø42.4 mm
• Material: AISI 304 stainless steel
• Finish: Satin
• Mounting type: Wall mounted

Features:

• Designed for Ø42.4 mm round handrails.
• Strong wall-mounted construction.
• Manufactured from durable AISI 304 stainless steel.
• Elegant satin finish.
• Quick and reliable installation.
• Suitable for indoor and standard outdoor applications.

Applications:

This wall handrail bracket is used for installing Ø42.4 mm round handrails on staircases, corridors, balconies, terraces and other railing systems where wall-mounted handrail support is required.

Installation:

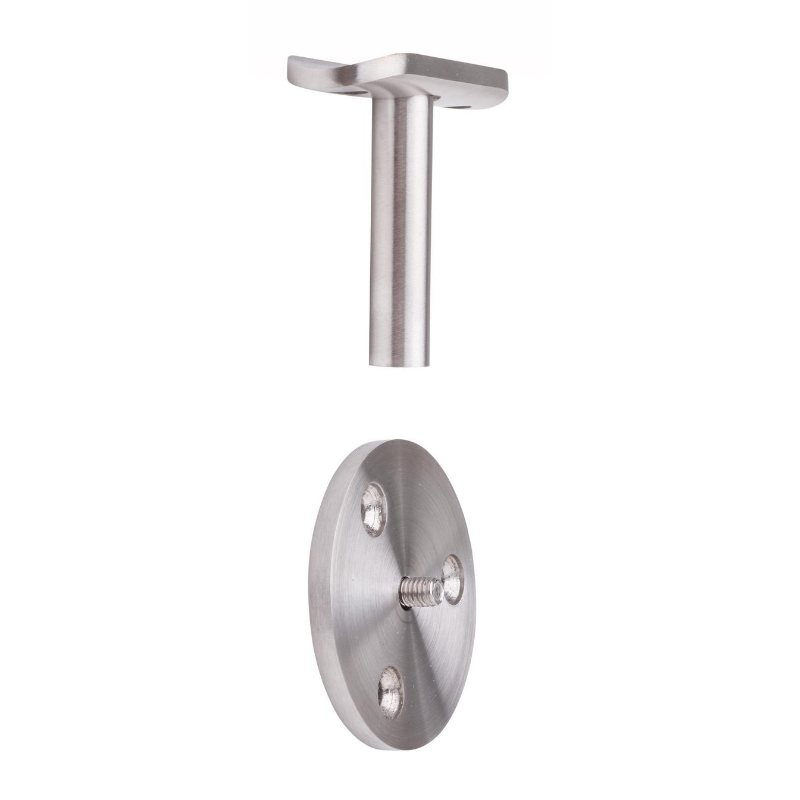

The bracket is fixed to the wall using fasteners suitable for the wall material. The handrail is then attached to the upper mounting plate with screws. Accurate positioning before installation is recommended.

Related products:

For this wall handrail bracket we recommend stainless steel pipes and handrails and railing installation videos.

Frequently Asked Questions:

Which handrail is this bracket designed for?
It is designed for Ø42.4 mm round stainless steel handrails.

Is it suitable for outdoor use?
Yes. AISI 304 stainless steel is suitable for most standard outdoor environments. AISI 316 stainless steel is recommended for coastal areas.

How is the bracket installed?
The bracket is fixed to the wall with suitable anchors or screws, and the handrail is attached to the upper mounting plate.

Can it be installed on concrete or wooden walls?
Yes. Simply use fixing hardware that is appropriate for the wall material.
