Wall Mounted Rod Holder

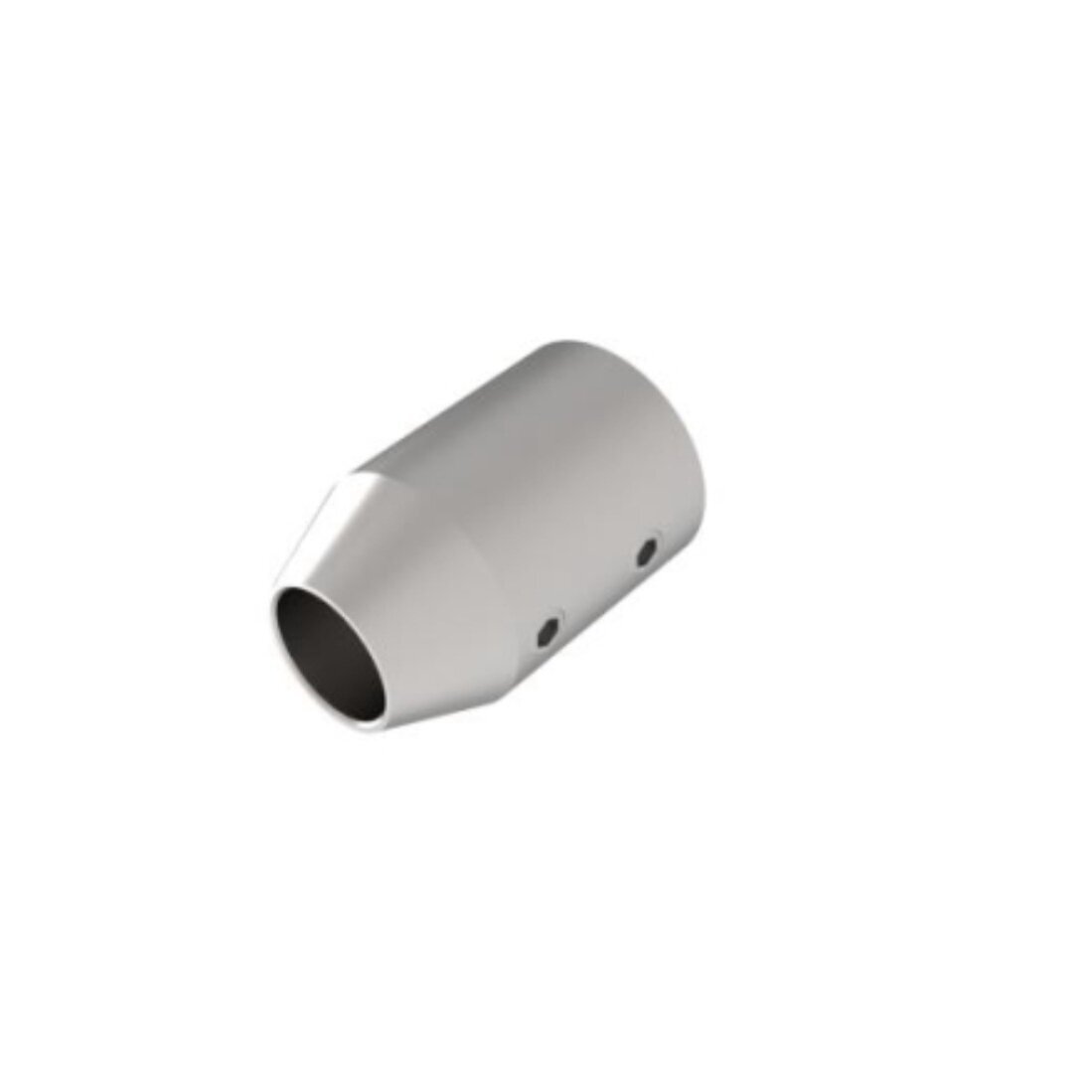

Wall Mounted Rod Holder STR-4004 – a stainless steel holder designed for fixing a Ø12 mm horizontal infill rod to a wall or other flat surface. Its cylindrical design provides a modern appearance while ensuring a secure and reliable rod connection in stainless steel railing systems.

Manufactured from AISI 304 stainless steel with a satin finish, this rod holder offers excellent corrosion resistance, durability and a professional appearance. It is suitable for new installations and renovation of indoor and standard outdoor railing systems.

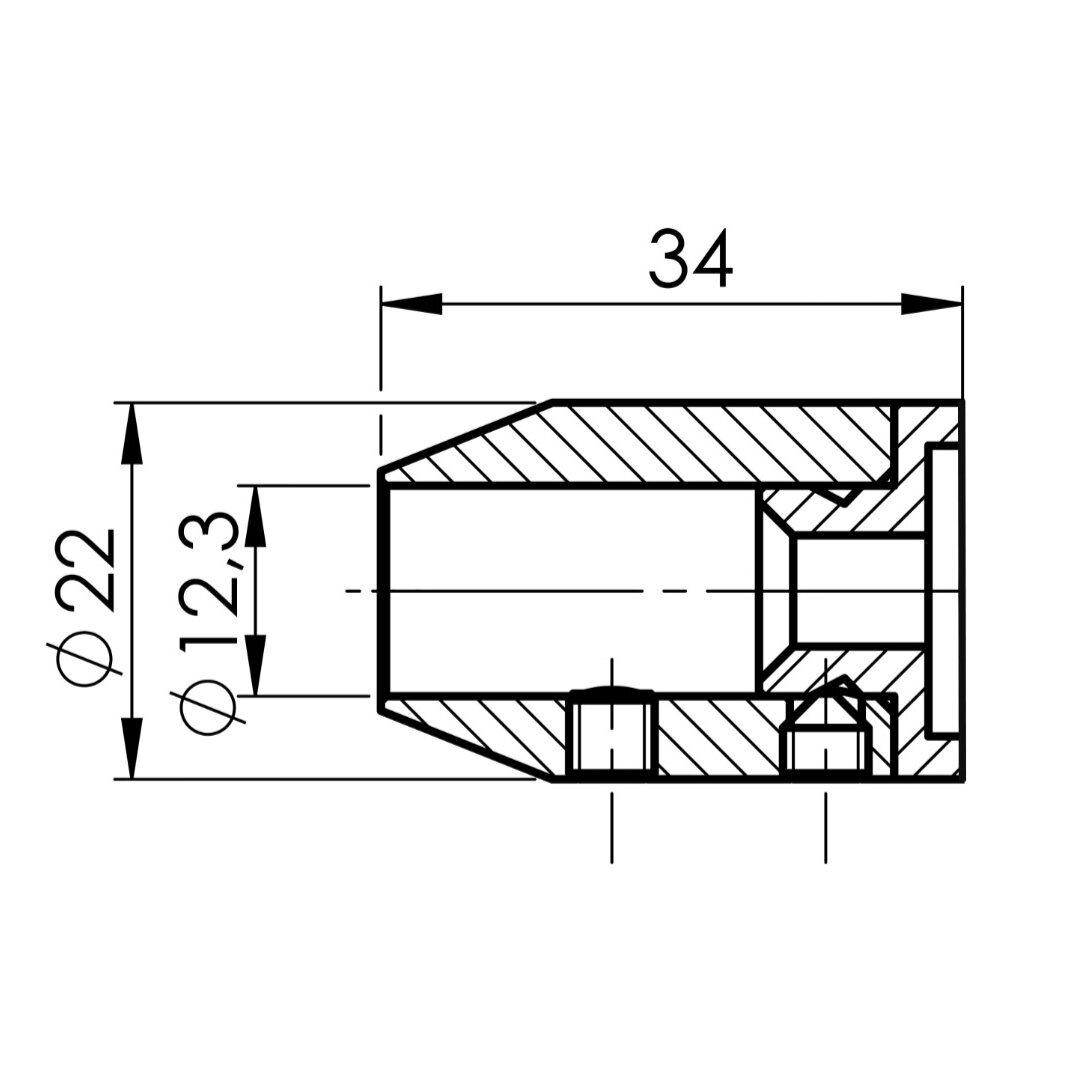

Technical Information:

• Code: STR-4004
• Installation: Wall or flat surface mounting
• Suitable for rod: Ø12 mm
• Length: 34 mm
• Diameter: 22 mm
• Material: AISI 304 stainless steel
• Finish: Satin
• Application: Wall mounted horizontal infill rod holder

Features:

• Designed for Ø12 mm stainless steel rods.
• Suitable for wall and flat surface installation.
• Modern cylindrical design.
• Made from AISI 304 stainless steel.
• Elegant satin finish.
• Quick and reliable installation.
• Suitable for indoor and standard outdoor railing systems.

Applications:

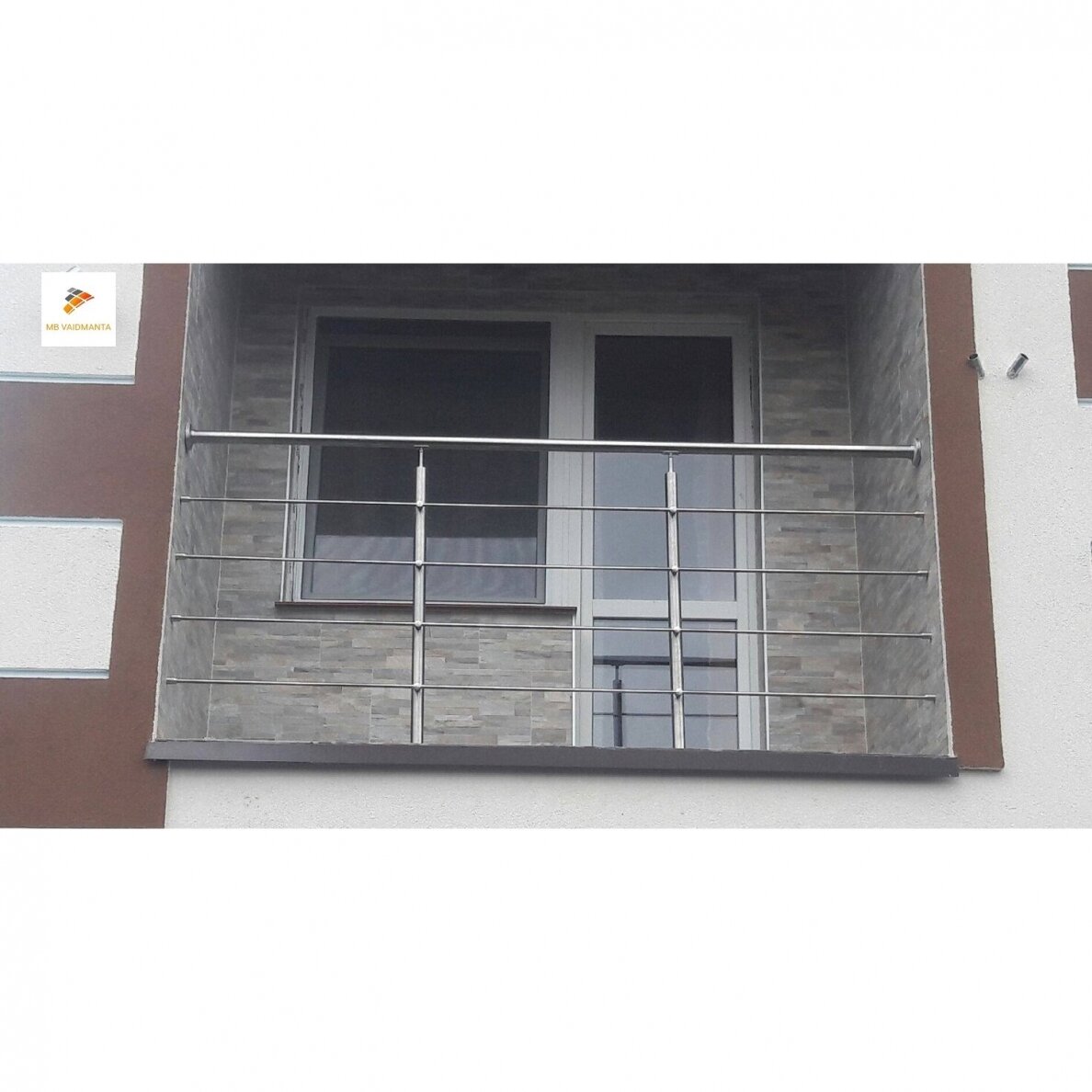

This wall mounted rod holder is designed for fixing Ø12 mm horizontal infill rods to walls, steel structures and other flat surfaces in stainless steel railing systems. It is suitable for balconies, staircases, terraces and other architectural railing applications.

Installation:

The holder is fixed to the wall or another flat surface using appropriate fasteners. The Ø12 mm rod is inserted into the holder and secured using the integrated fixing screws, providing a strong and professional connection.

Related products:

For this holder we recommend other rod holders, rod end caps and the complete range of stainless steel rod elements.

Frequently Asked Questions:

What is this holder used for?
It is designed for fixing Ø12 mm horizontal infill rods to a wall or another flat surface.

Which rod diameter is it designed for?
It is designed for Ø12 mm stainless steel infill rods.

What material is it made from?
It is manufactured from AISI 304 stainless steel with a satin finish.

Is it suitable for outdoor use?
Yes. AISI 304 stainless steel is suitable for most standard outdoor environments. AISI 316 products are recommended for coastal or highly corrosive conditions.

How is the rod secured?
The rod is inserted into the holder and secured using the integrated fixing screws.
